Head-Up Display Replacement

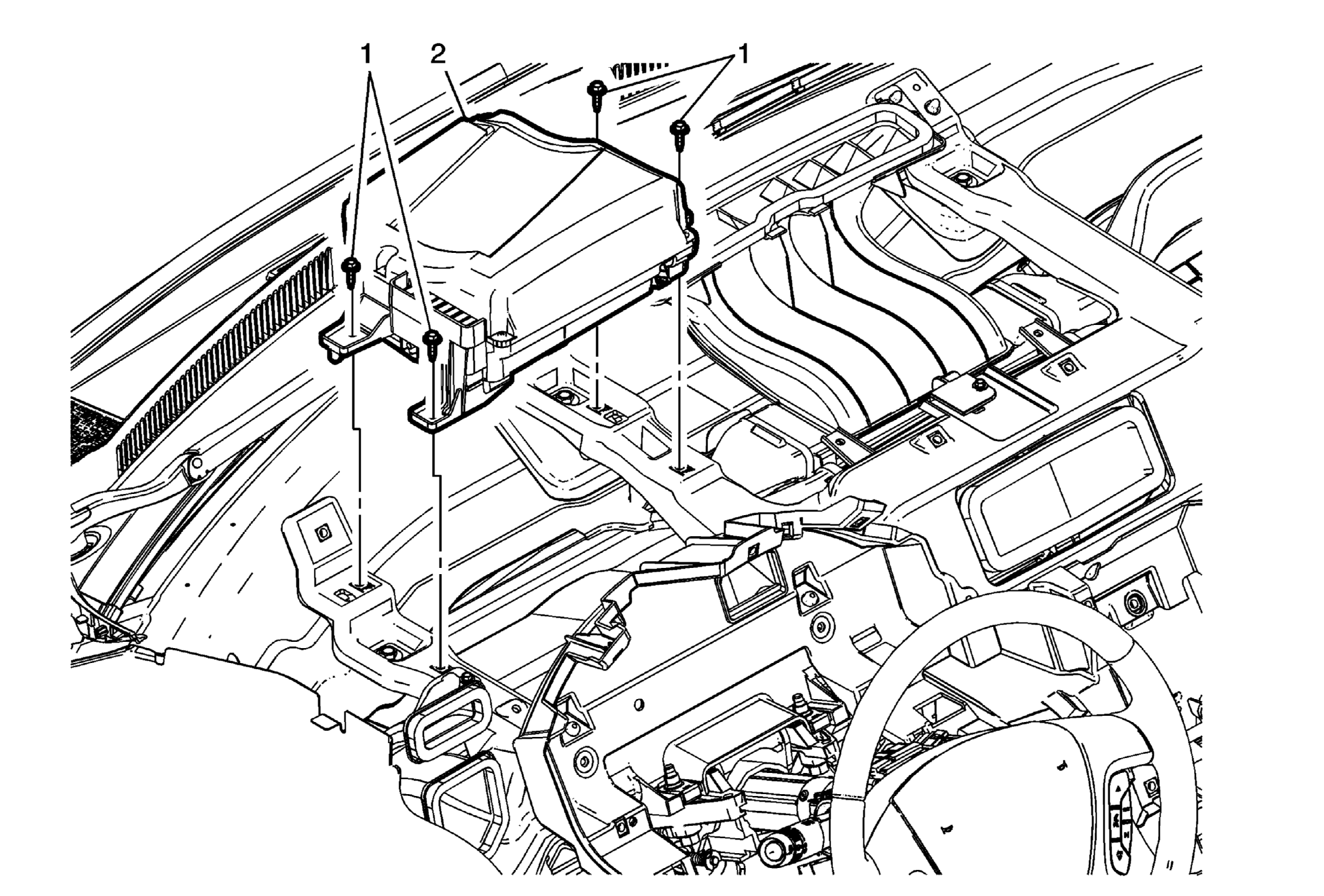

Fig 1: Head-Up Display
GM2866617Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement (Acadia w/RPO UV6)Instrument Panel Trim Pad Replacement (Acadia w/o RPO UV6)Instrument Panel Trim Pad Replacement (Enclave)Instrument Panel Trim Pad Replacement (Traverse) .
1 Head Up Display Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Head Up Display

Procedures

  1. Disconnect the electrical connections.
  2. Refer to Control Module References for programming and setup information.
