Fuel Controls - EVAP Controls

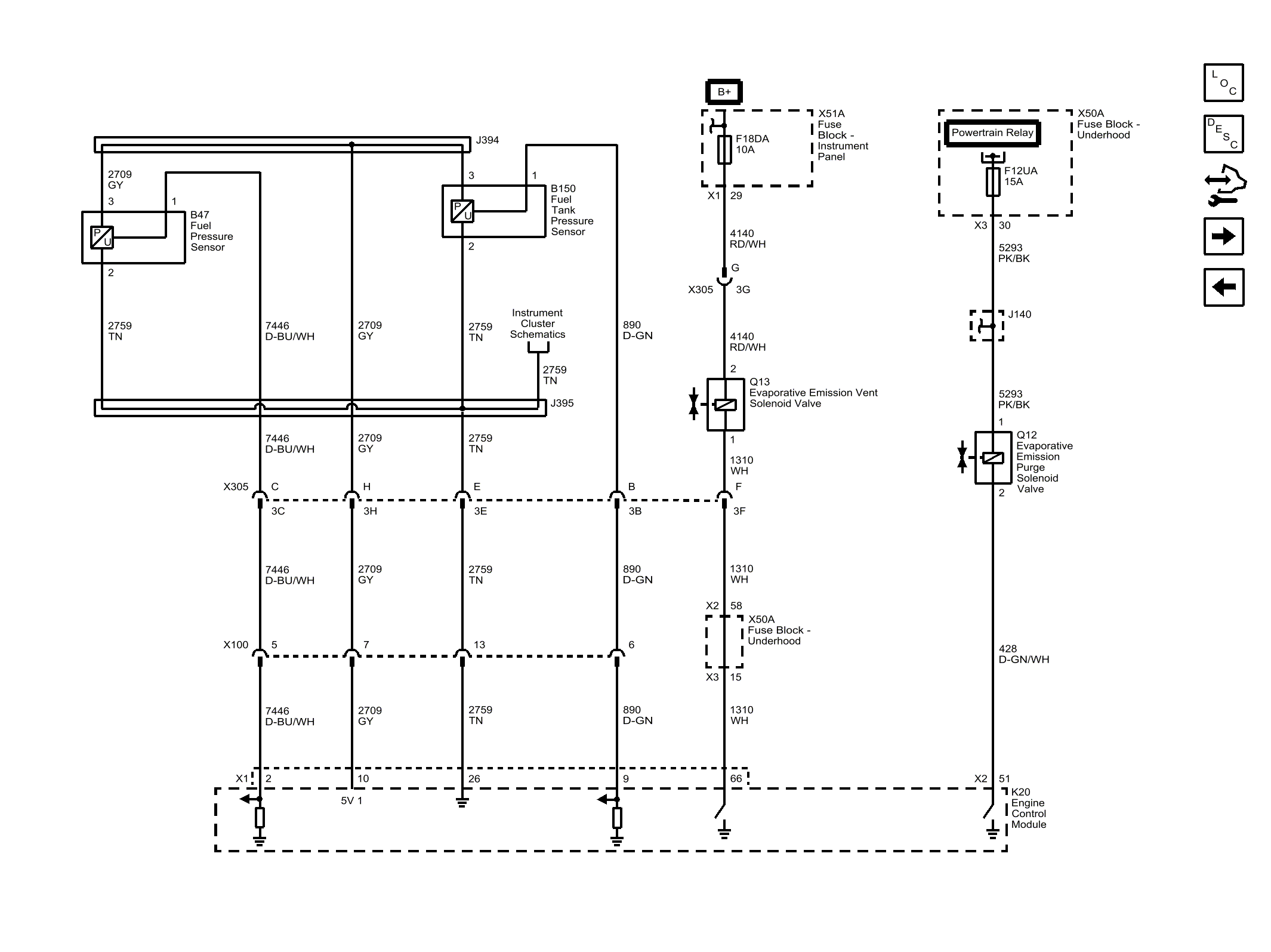

Fig 1: Fuel Controls - EVAP Controls
GM4405850Courtesy of GENERAL MOTORS COMPANY
