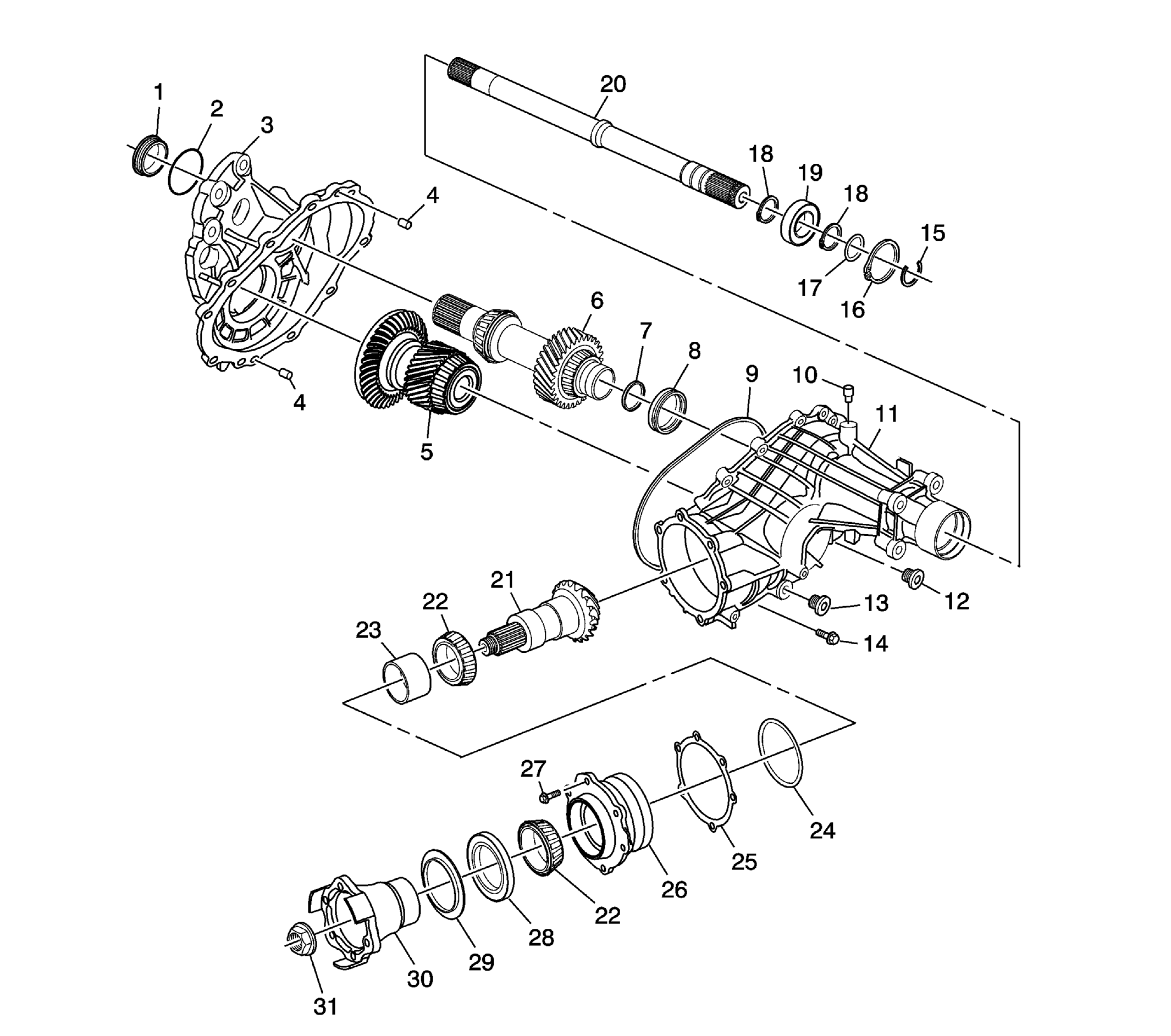

| 1 |
Transfer Case Input Shaft Seal - Left |
| 2 |
Transfer Case O-ring Seal |
| 3 |
Transfer Case - Left |
| 4 |
Transfer Case Half Locating Pin (Qty: 2) |
| 5 |
Transfer Case Rear Output Drive Shaft |
| 6 |
Transfer Case Input Shaft |
| 7 |
Front Drive Axle Intermediate Shaft Seal Assembly |
| 8 |
Transfer Case Input Shaft Seal - Right |
| 9 |
Transfer Case Seal |
| 10 |
Transfer Case Vent Assembly |
| 11 |
Transfer Case - Right |
| 12 |
Transfer Case Fill Plug |
| 13 |
Transfer Case Drain Plug |
| 14 |
Transfer Case Half Bolt (Qty: 11) |
| 15 |
Half Shaft Retainer |
| 16 |
Front Wheel Drive Retainer |
| 17 |
O-ring |
| 18 |
Front Wheel Drive Intermediate Shaft Bearing Retainer (Qty: 2) |
| 19 |
Front Wheel Drive Intermediate Shaft Bearing Assembly |
| 20 |
Front Wheel Drive Intermediate Shaft |
| 21 |
Transfer Case Rear Output Shaft |
| 22 |
Transfer Case Rear Output Shaft Bearing Assembly (Qty: 2) |
| 23 |
Transfer Case Rear Output Shaft Bearing Spacer |
| 24 |
Transfer Case Rear Output Shaft Housing Seal O-ring |
| 25 |
Transfer Case Rear Output Shim |
| 26 |
Transfer Case Rear Output Shaft Housing |
| 27 |
Transfer Case Rear Output Shaft Housing Bolt (Qty: 6) |
| 28 |
Transfer Case Rear Output Shaft Seal |
| 29 |
Transfer Case Rear Output Shaft Oil Slinger |
| 30 |
Transfer Case Rear Output Shaft Flange |
| 31 |
Transfer Case Rear Output Shaft Nut |
