Front View Camera Replacement

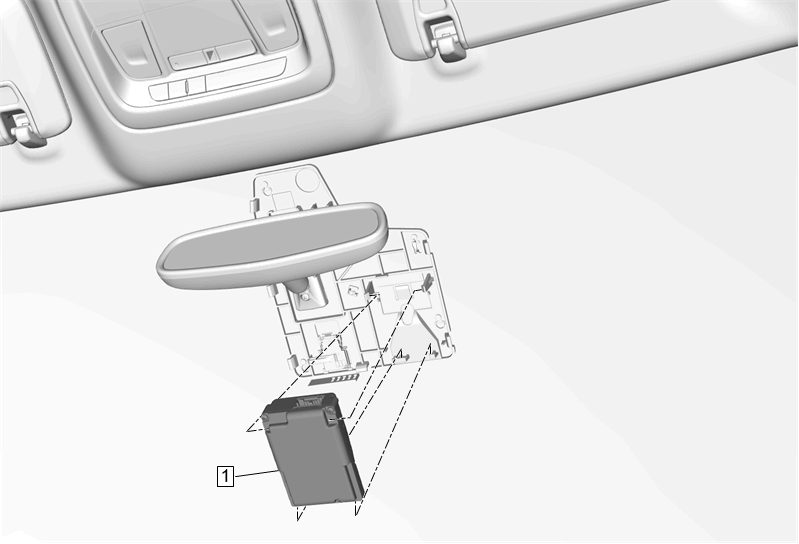

Fig 1: Front View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Windshield Multifunction Sensor Mount Bracket Lower Cover. Refer to Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement
1	Front View Driver Information Camera Procedure Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers and camera, turn the tool to release the retainers and rotate the camera downward. Disconnect the electrical connector. Refer to Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Remove Windshield Multifunction Sensor Mount Bracket Lower Cover. Refer to Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement

Front View Driver Information Camera

Procedure

Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers and camera, turn the tool to release the retainers and rotate the camera downward.
Disconnect the electrical connector.
Refer to Control Module References for programming and setup information, if required.
