Comprehensive Safety - Serial Data Camera, Module and Long Range Radar (UEU/UHX/UGN)

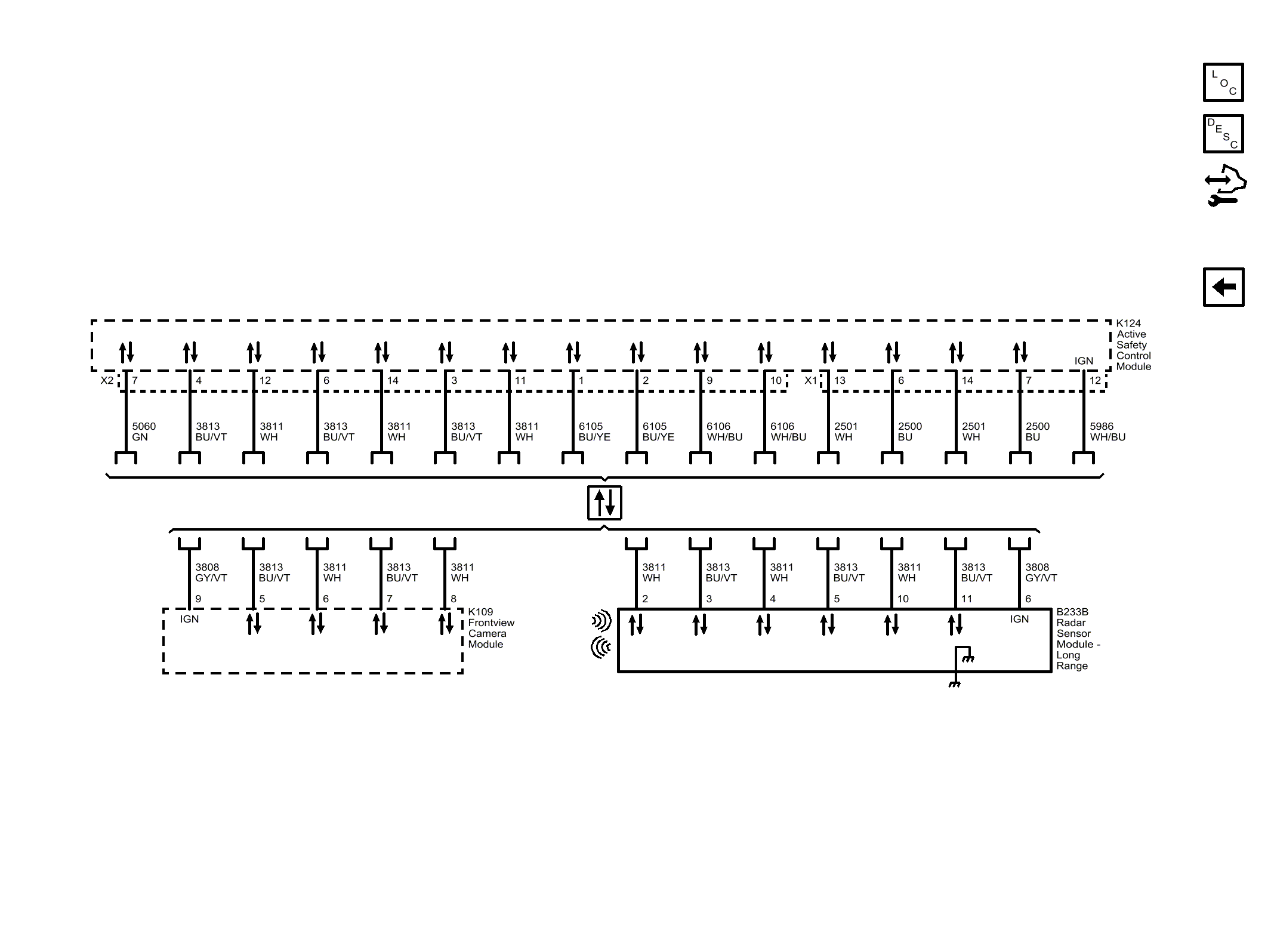

Fig 1: Comprehensive Safety - Serial Data Camera, Module and Long Range Radar (UEU/UHX/UGN)
GM4310801Courtesy of GENERAL MOTORS COMPANY
