Side Object Detection (UKC)

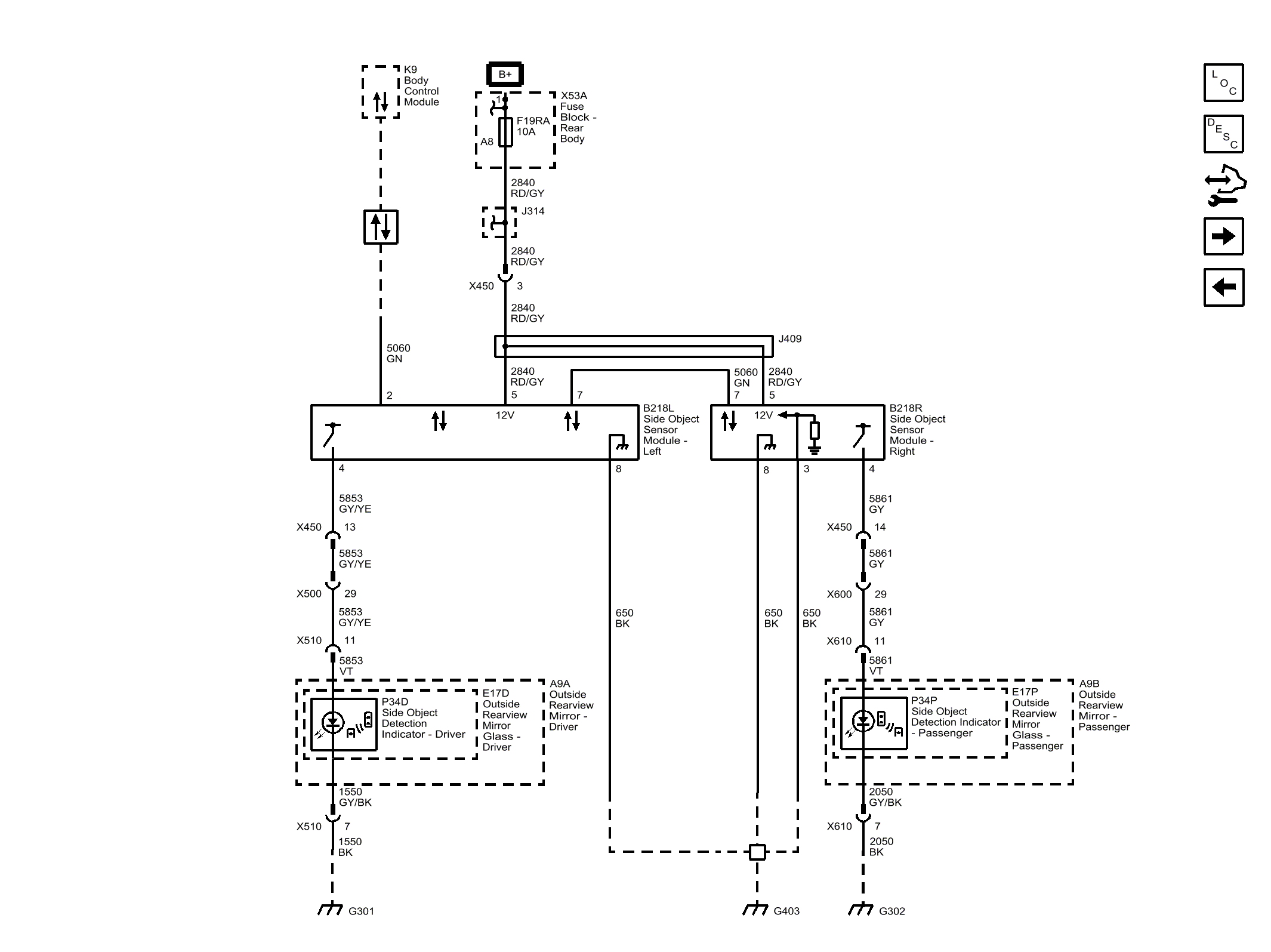

Fig 1: Side Object Detection (UKC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
