Navigation Signal Splitter Replacement

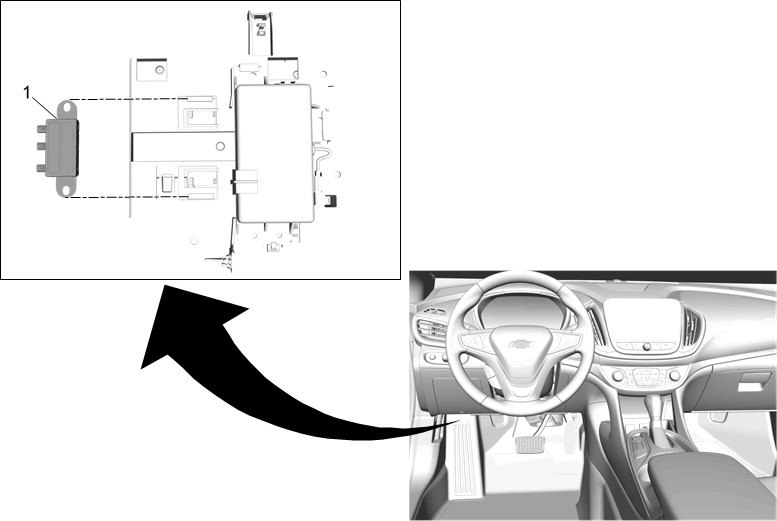

Fig 1: Navigation Signal Splitter
GM4122093Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Communication Interface Module Bracket. Refer to Communication Interface Module Bracket Replacement
1 Navigation Signal Splitter
Procedure
Release the retaining tabs.
