Chevrolet
>>
2017
>>
Volt Premier
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Plug-In Charging System
>>
Schematic Wiring Diagrams
>>
Plug-In Charging Wiring Schematics
>>
Battery Charger
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Battery Charger

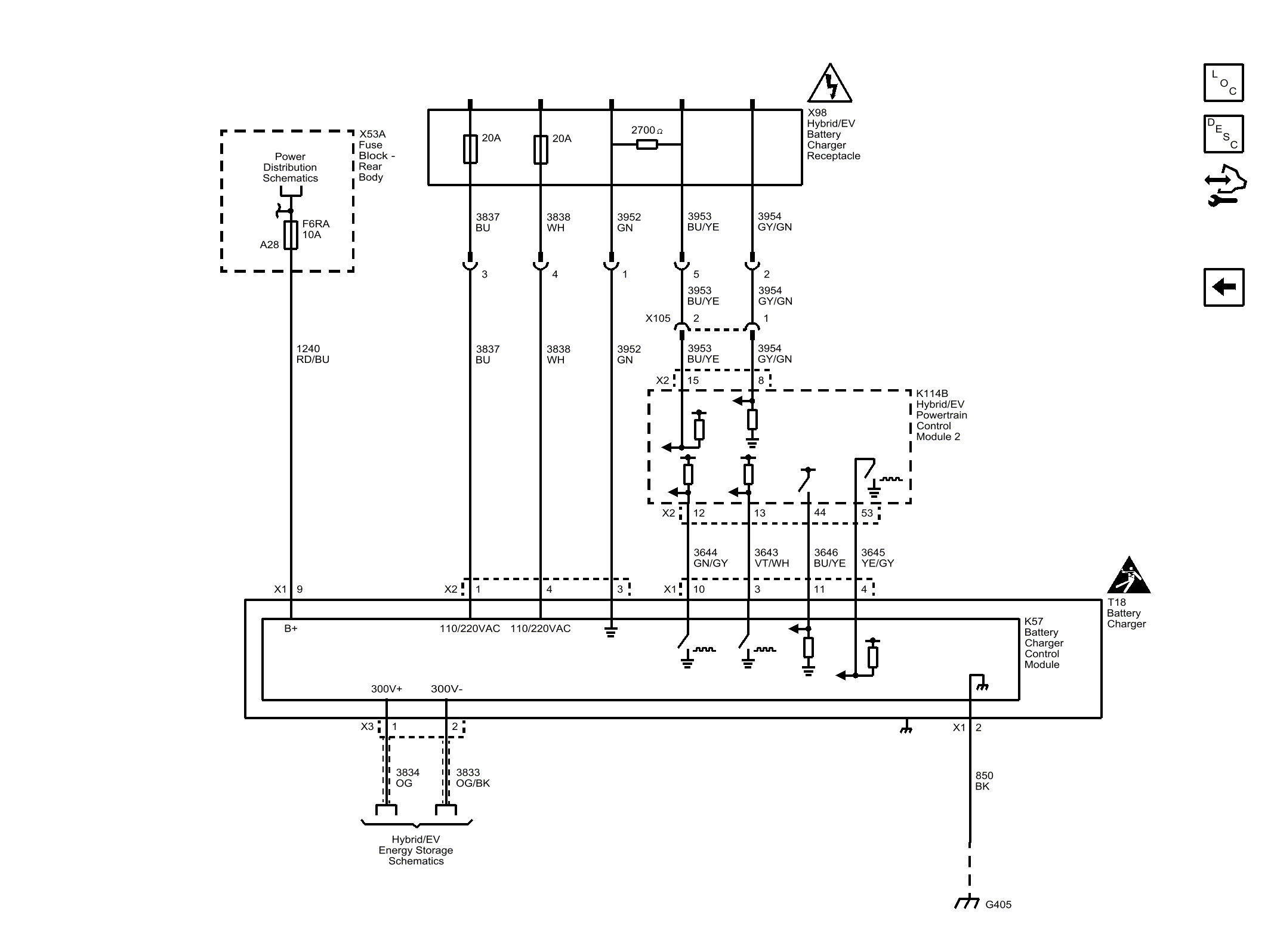

Fig 1: Battery Charger
Courtesy of GENERAL MOTORS COMPANY
