Left Front of Engine Components

Left Front of Engine Components

Items
1. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump
2. B68 Knock Sensor B68 Knock Sensor

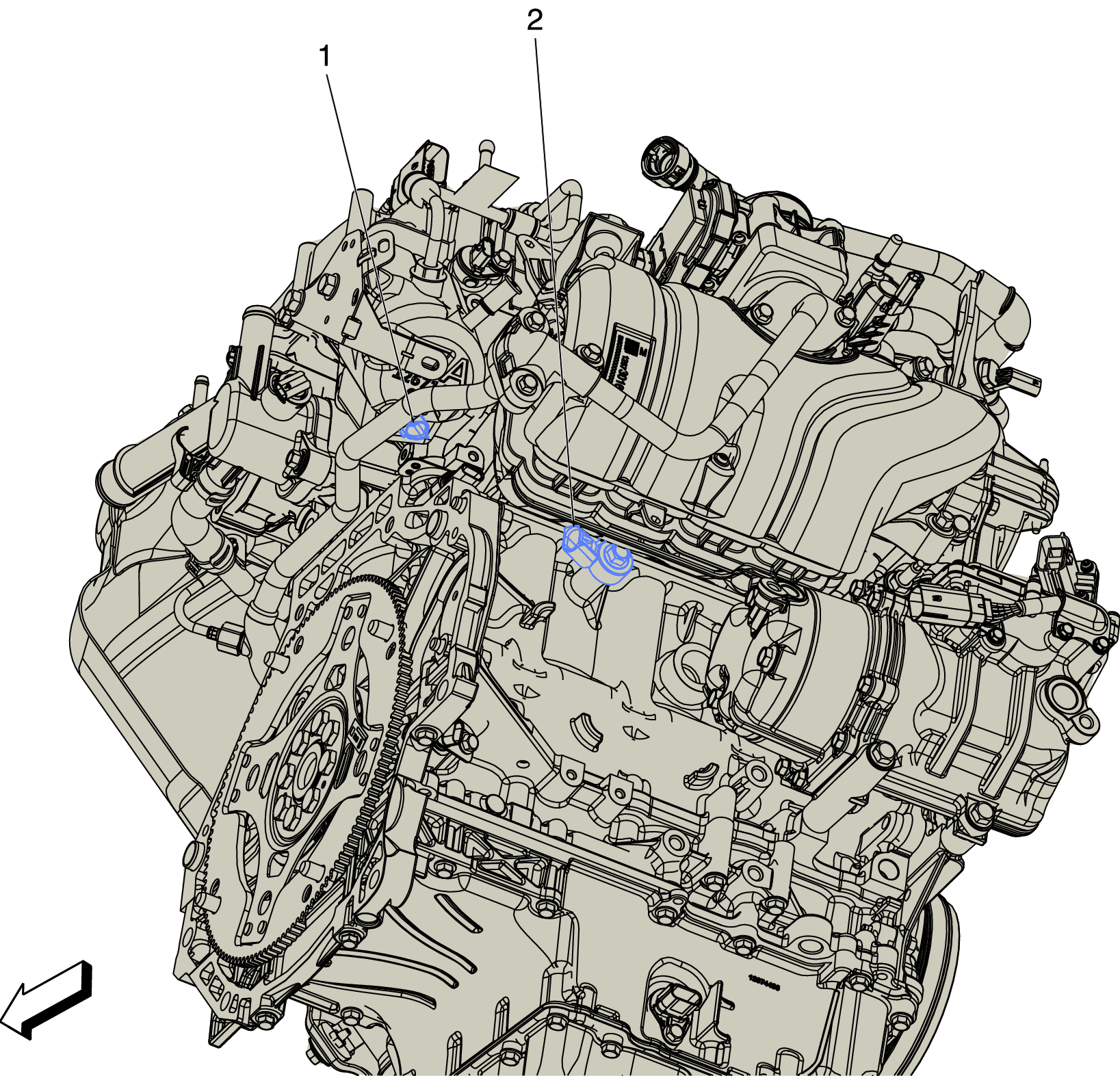

Fig 1: Left Front of Engine Components
GM4693610Courtesy of GENERAL MOTORS COMPANY
