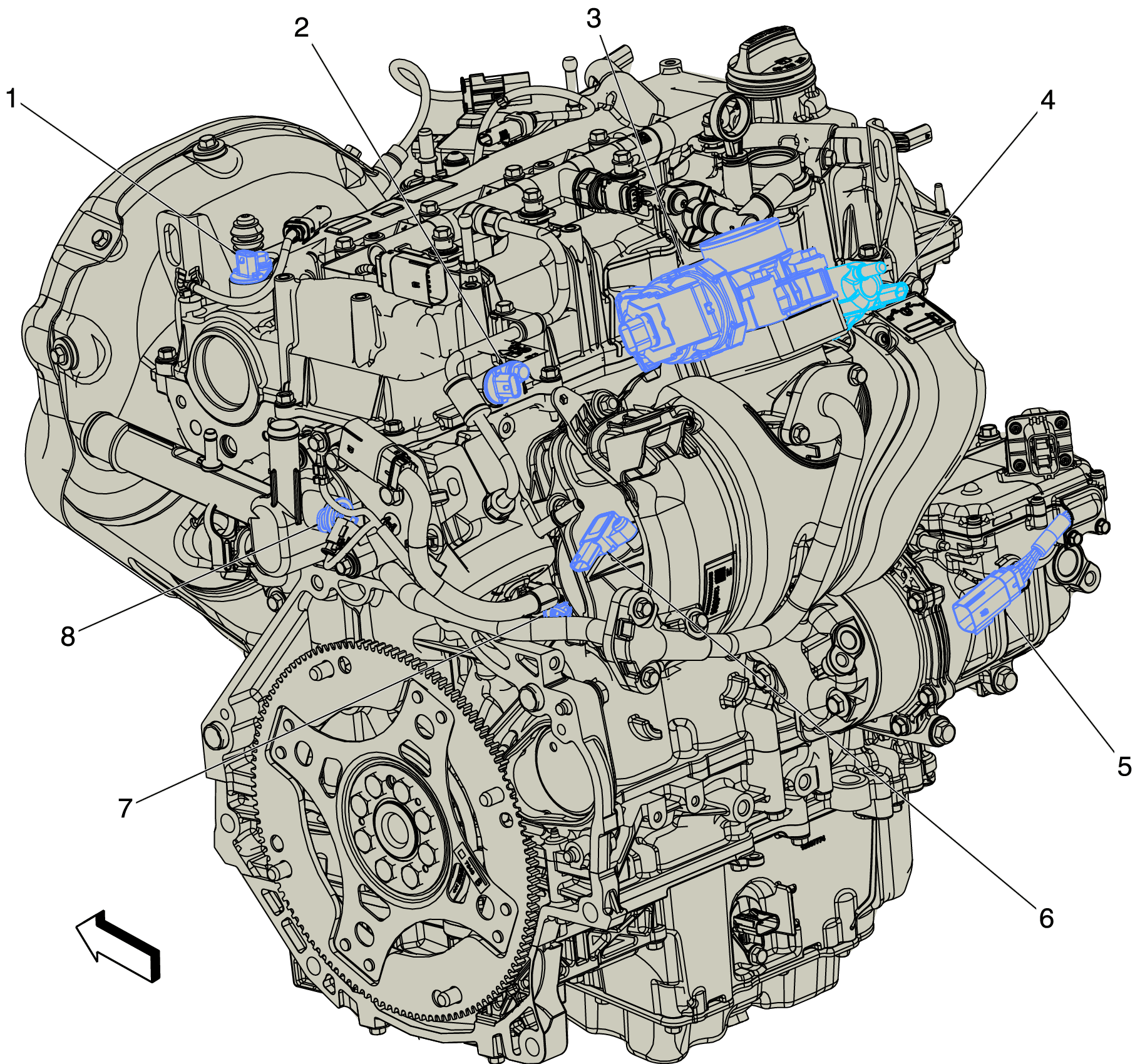

Left Rear of Engine Components
Left Rear of Engine Components
| Items |
|---|
| 1. B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| 2. B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
| 3. Q38 Throttle Body Q38 Throttle Body |
| 4. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 5. G1 A/C Compressor G1 A/C Compressor X1G1 A/C Compressor X2 |
| 6. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 7. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
| 8. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
