Left Rear of Engine/Transmission Components

Left Rear of Engine/Transmission Components

Items
1. T6 Power Inverter Module T6 Power Inverter Module X1T6 Power Inverter Module X2G5 Transmission Fluid Pump - Electric/AuxiliaryT6 Power Inverter Module X4
2. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor
3. B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake
4. Q38 Throttle Body Q38 Throttle Body
5. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
6. G1 A/C Compressor G1 A/C Compressor X1G1 A/C Compressor X2
7. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve
8. T12 Automatic Transmission Assembly

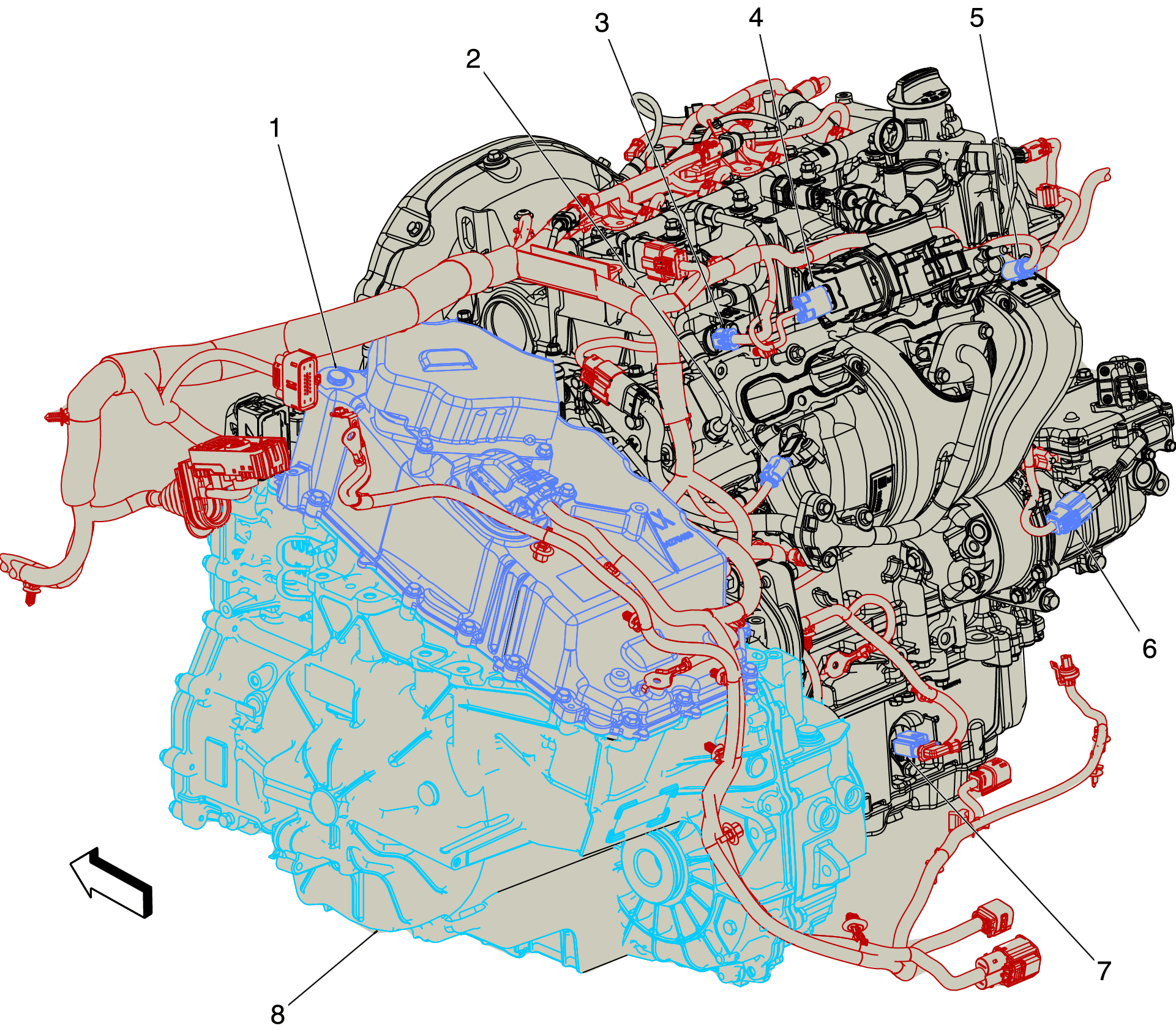

Fig 1: Left Rear of Engine/Transmission Components
GM4169553Courtesy of GENERAL MOTORS COMPANY
