Fuel Pump Power Control Module Replacement

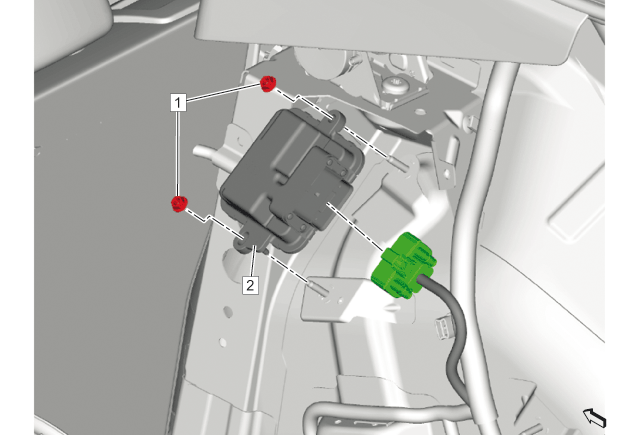

Fig 1: Fuel Pump Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Quarter Lower Rear Trim Panel Replacement (Left Side)Quarter Lower Rear Trim Panel Replacement (Right Side)
1	Fuel Pump Power Control Module Nut (Qty: 2) CAUTION: Fastener Caution Tighten 9 N.m 80 lb in)
2	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. When the replacement is completed, use a scan tool to perform the appropriate reset functions. Control Module References .

Callout

Component Name

Fuel Pump Power Control Module Nut (Qty: 2)

CAUTION:

Tighten
9 N.m 80 lb in)

Fuel Pump Power Control Module

Procedure

Disconnect the electrical connector.
When the replacement is completed, use a scan tool to perform the appropriate reset functions. Control Module References .
