Engine Compartment Components - Left

Engine Compartment Components - Left

Items
1. K177 Brake Booster Control Module K177 Brake Booster Control Module
2. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
3. X50B Fuse Block - Underhood Auxiliary X50B Fuse Block - Underhood Auxiliary X1
4. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3
5. K17 Electronic Brake Control Module K17 Electronic Brake Control Module
6. B201 Brake Control Brake Pedal Position Sensor B201 Brake Control Brake Pedal Position Sensor

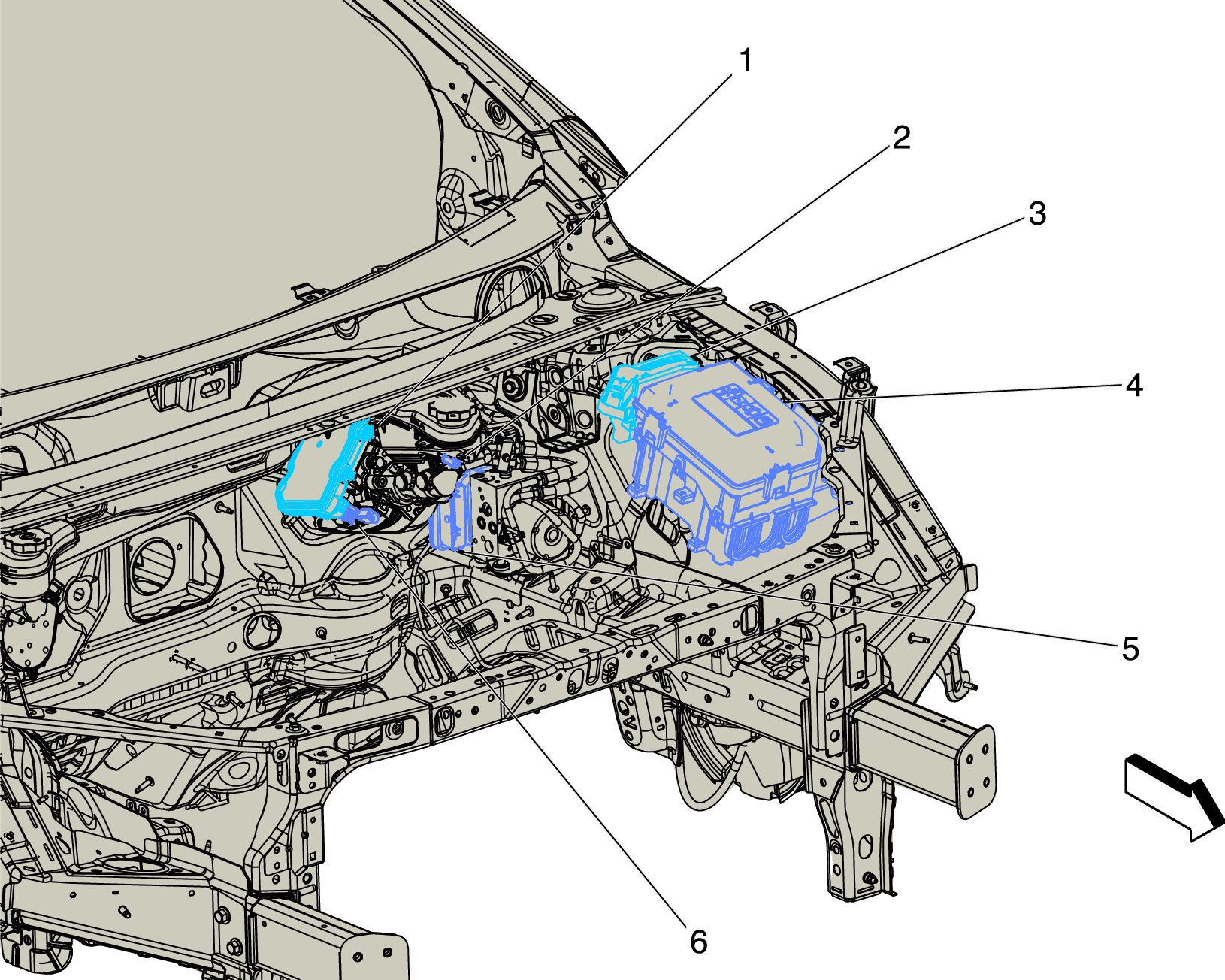

Fig 1: Engine Compartment Components - Left
GM4169541Courtesy of GENERAL MOTORS COMPANY
