Front Side Door Window Control Switch Replacement (Extended Cab)

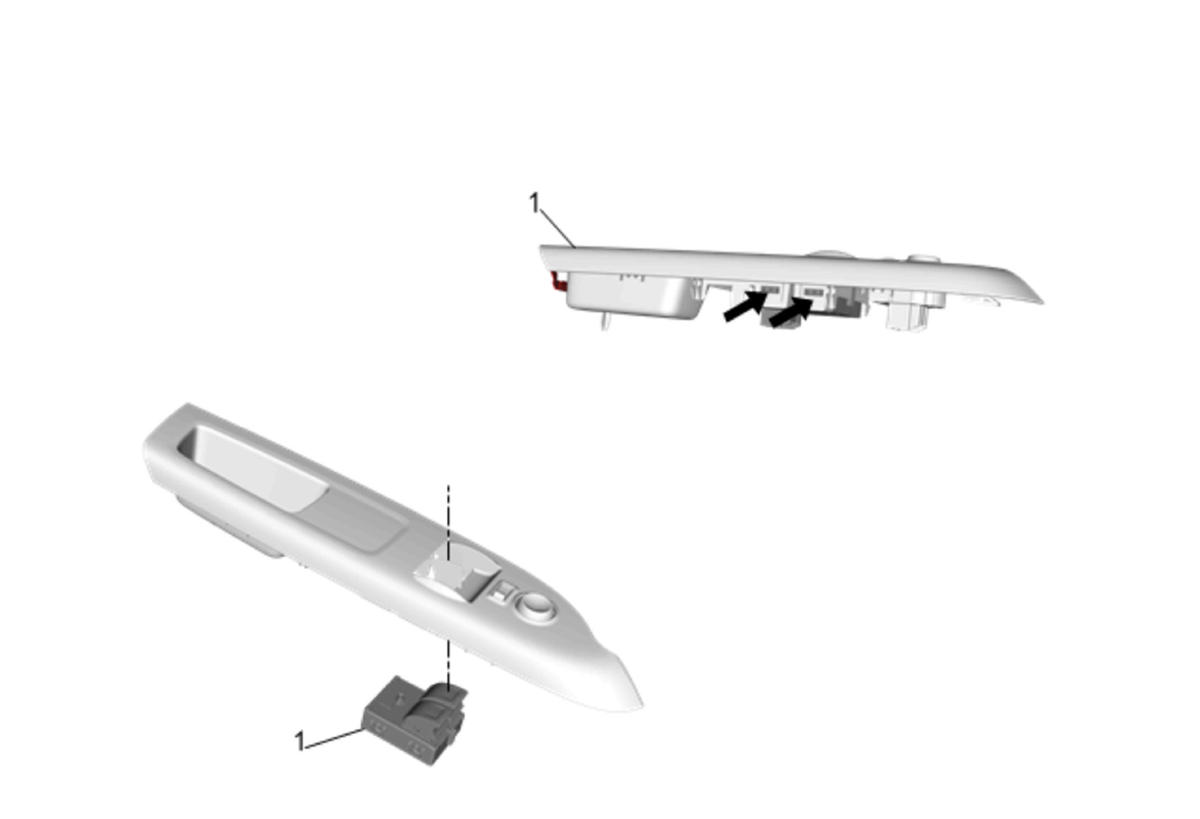

GM3950152Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Accessory Switch Mount Plate Replacement - Driver Side (Extended Cab)
1 Front Side Door Window Control Switch Assembly

Procedure

  1. Release tabs on switch to remove from front side door accessory switch mount plate - driver side.
  2. Refer to Control Module References for programming and set up procedures, if required.
