Rear Sliding Window Guide Replacement (Lower)

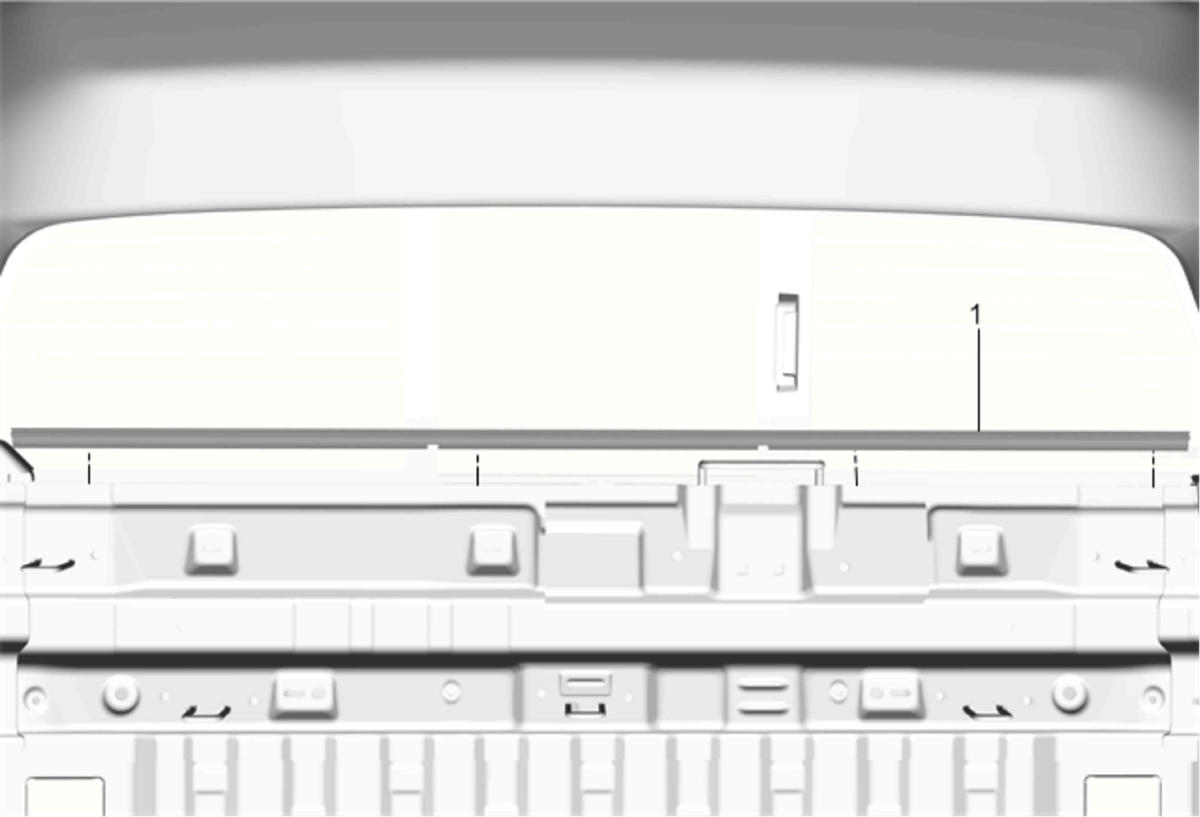

GM3807663Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear sliding glass window. Refer to Rear Sliding Window Replacement
1 Rear Sliding Window Guide - Lower
Procedure
From the passenger side, pull up and slide the rear sliding window lower guide from between the frame and sliding window.
