Video Processing Module Replacement

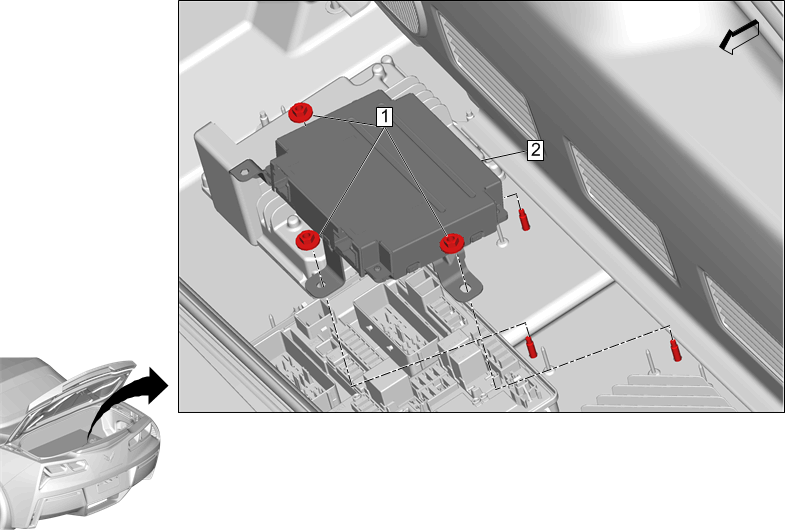

| Callout | Component Name |
|---|---|
| Preliminary Procedure REAR COMPARTMENT FLOOR PANEL TRIM REPLACEMENT (NORTH AMERICA)REAR COMPARTMENT FLOOR PANEL TRIM REPLACEMENT (EXPORT - CU9, CV5, CZ3, C4E) |
|
| 1 | Video Processing Module Nut[3x]
CAUTION:
Procedure Remove wire harness retainer push clip from bracket. Tighten 9N.m (80 lb in) |
| 2 | Video Processing Module Procedure
|
