Instrument Panel Components Center

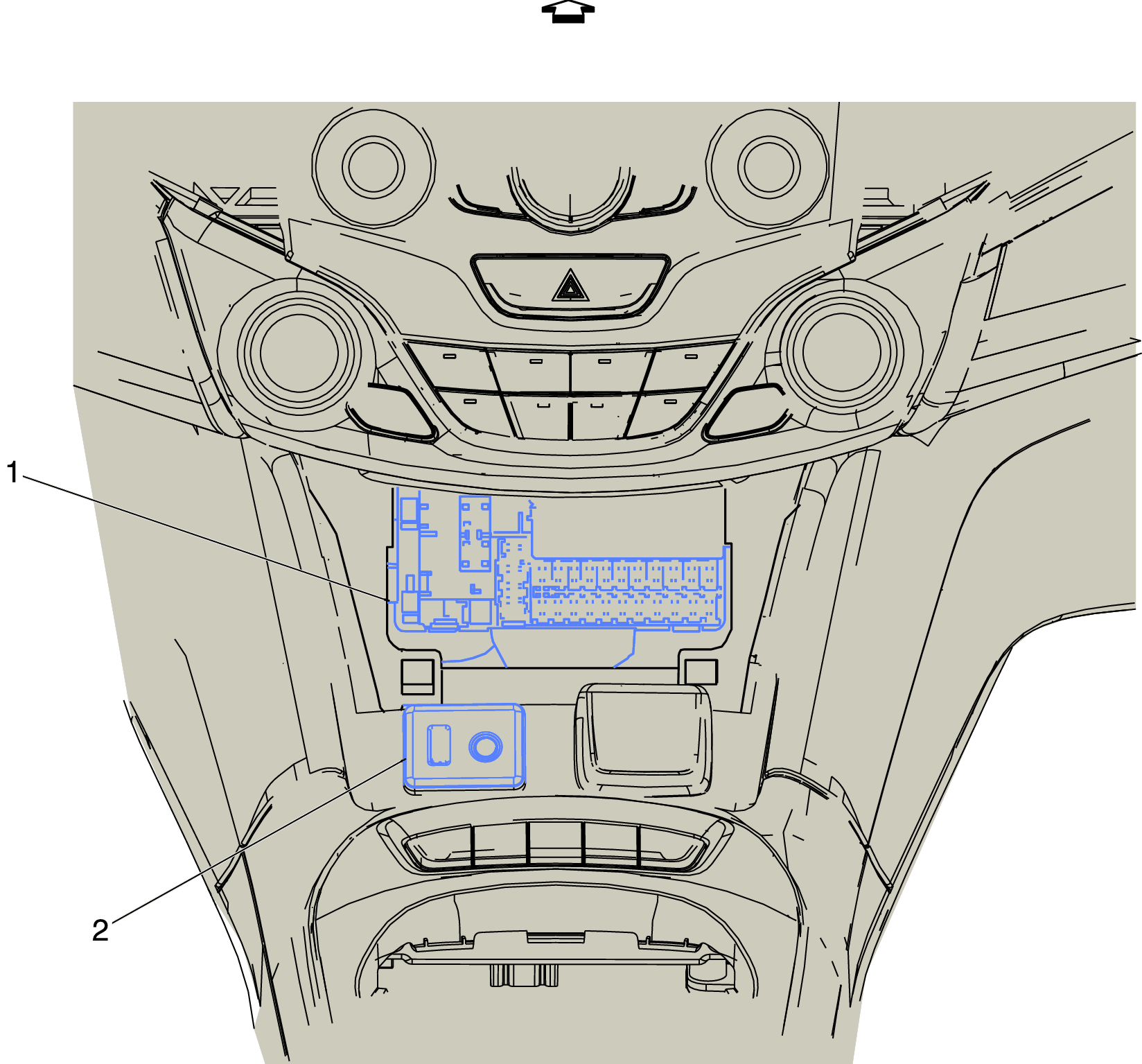

GM4421046
Instrument Panel Components Center

Items
1. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel, Wire Entry
2. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2
