Instrument Panel Components Left Side

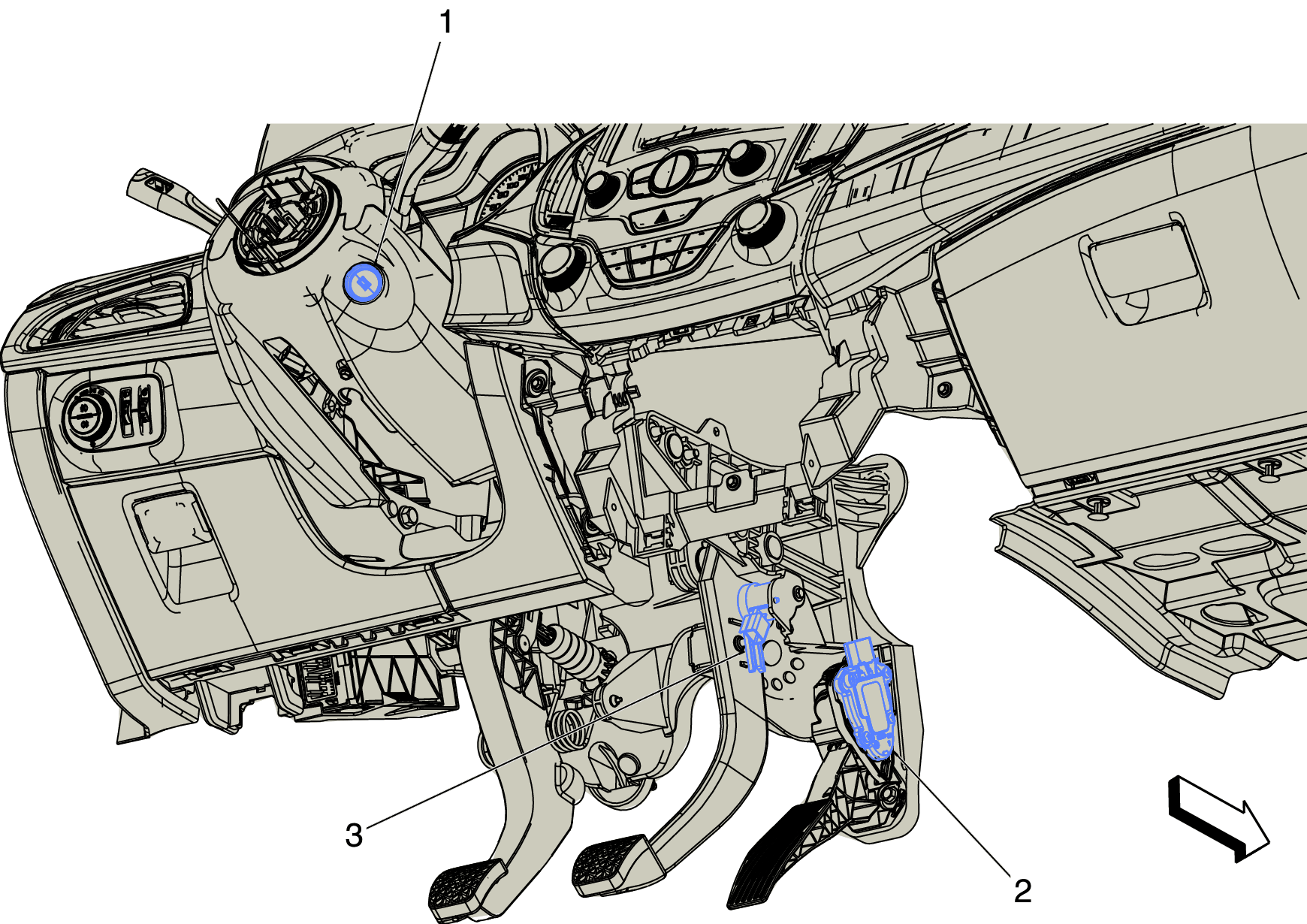

GM3752753
Instrument Panel Components Left Side

Items
1. M93 Key Capture Solenoid Actuator M93 Key Capture Solenoid Actuator
2. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
3. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (MF3)B22 Brake Pedal Position Sensor (MNU/MRG)
