Removal Procedure
Refer to Diesel/Gasoline Vapors Warning .
Refer to Safety Goggles and Fuel Warning .
When working on the fuel rail and fuel injectors, always maintain a clean work surface. Failure to maintain a clean work surface can result in contaminant on the injector seals and cause leaks.
- Fuel Injection Fuel Rail Assembly Removal and Installation - Remove
- NOTE:
The EN-51146-2-5 calibrations tools must be installed.
Remove the 8 plate bolts (1) and remove the EN-51146-1-2 plate (2), counterhold with a wrench (4) at the EN-51146-1-1 supports (3).
- Remove the 8 EN-51146-1-1 supports (3).
Disconnect the fuel injector electrical connector (3).

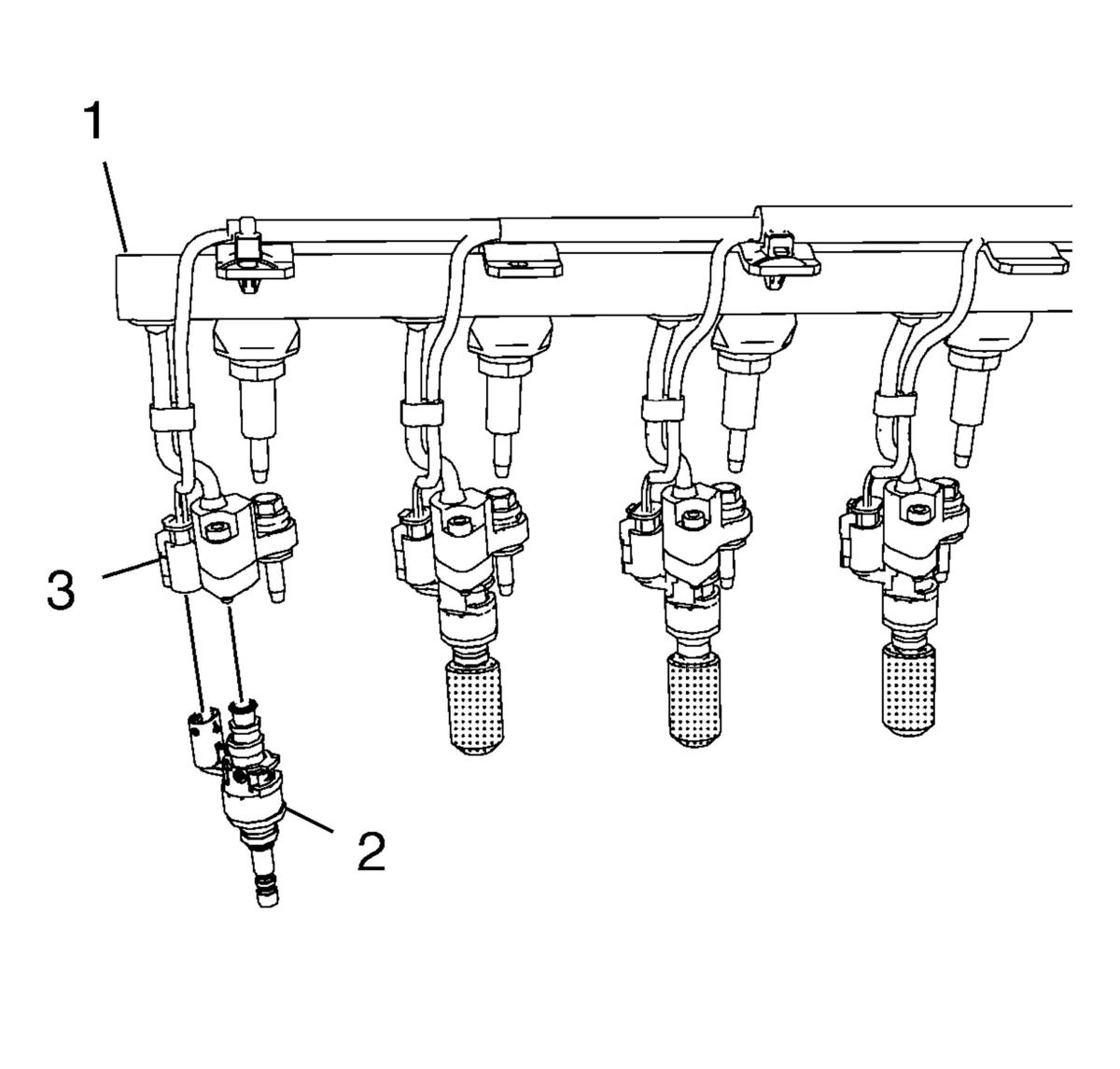

- Fuel Injector(2)@Fuel Injection Fuel Rail(1) - Remove
Remove only the EN-51146-1-1 supports (3) of the fuel injector or fuel injectors, which will be replaced. The EN-51146-1-1 supports must be installed at the injectors, which will be re-used. Failure to follow this caution could cause leaks or malfunction after installation.
