Heated Oxygen Sensor Replacement - Sensor 1

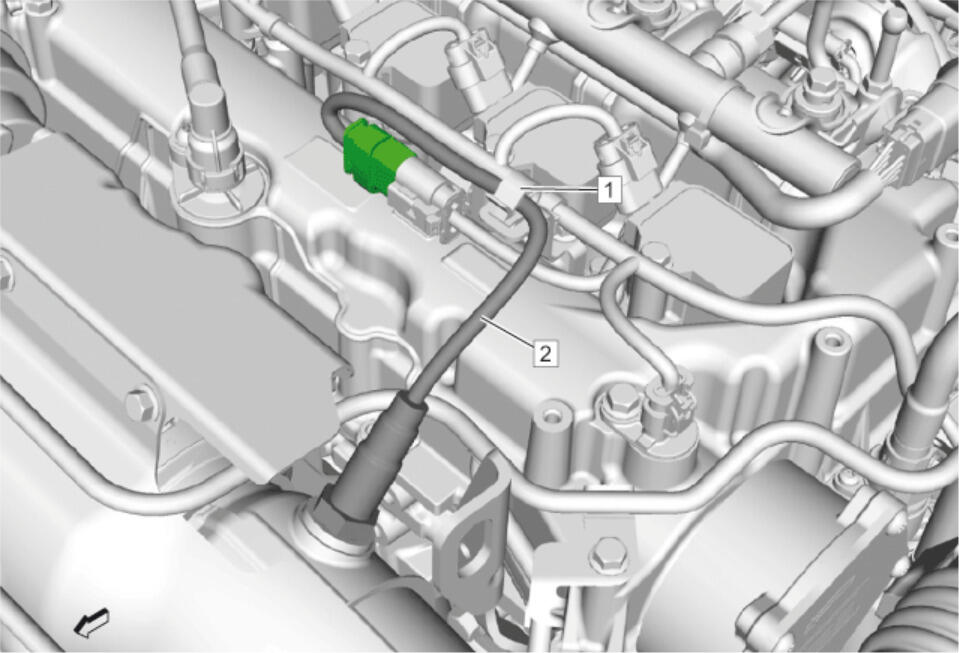

Callout	Component Name
WARNING: Exhaust Service Warning Preliminary Procedures Battery Negative Cable Disconnection and Connection Engine Sight Shield Replacement
1	Wiring Harness Clip
2	Heated Oxygen Sensor CAUTION: Fastener Caution Procedure Disconnect the electrical connector. If replacing the sensor, perform the HO2S heater resistance learned values reset. HO2S Heater Resistance Learned Values Reset Tighten 42 N.m (31 lb ft) Special Tools EN-6179 Heated Oxygen Sensor Remover / Installer Equivalent regional tools:Special Tools Special Tools (Diagnostic Tools)

Callout

Component Name

WARNING:

Preliminary Procedures

Wiring Harness Clip

Heated Oxygen Sensor

CAUTION:

Procedure

Disconnect the electrical connector.
If replacing the sensor, perform the HO2S heater resistance learned values reset. HO2S Heater Resistance Learned Values Reset

Tighten
42 N.m (31 lb ft)
Special Tools
EN-6179 Heated Oxygen Sensor Remover / Installer
Equivalent regional tools:Special Tools Special Tools (Diagnostic Tools)
