Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

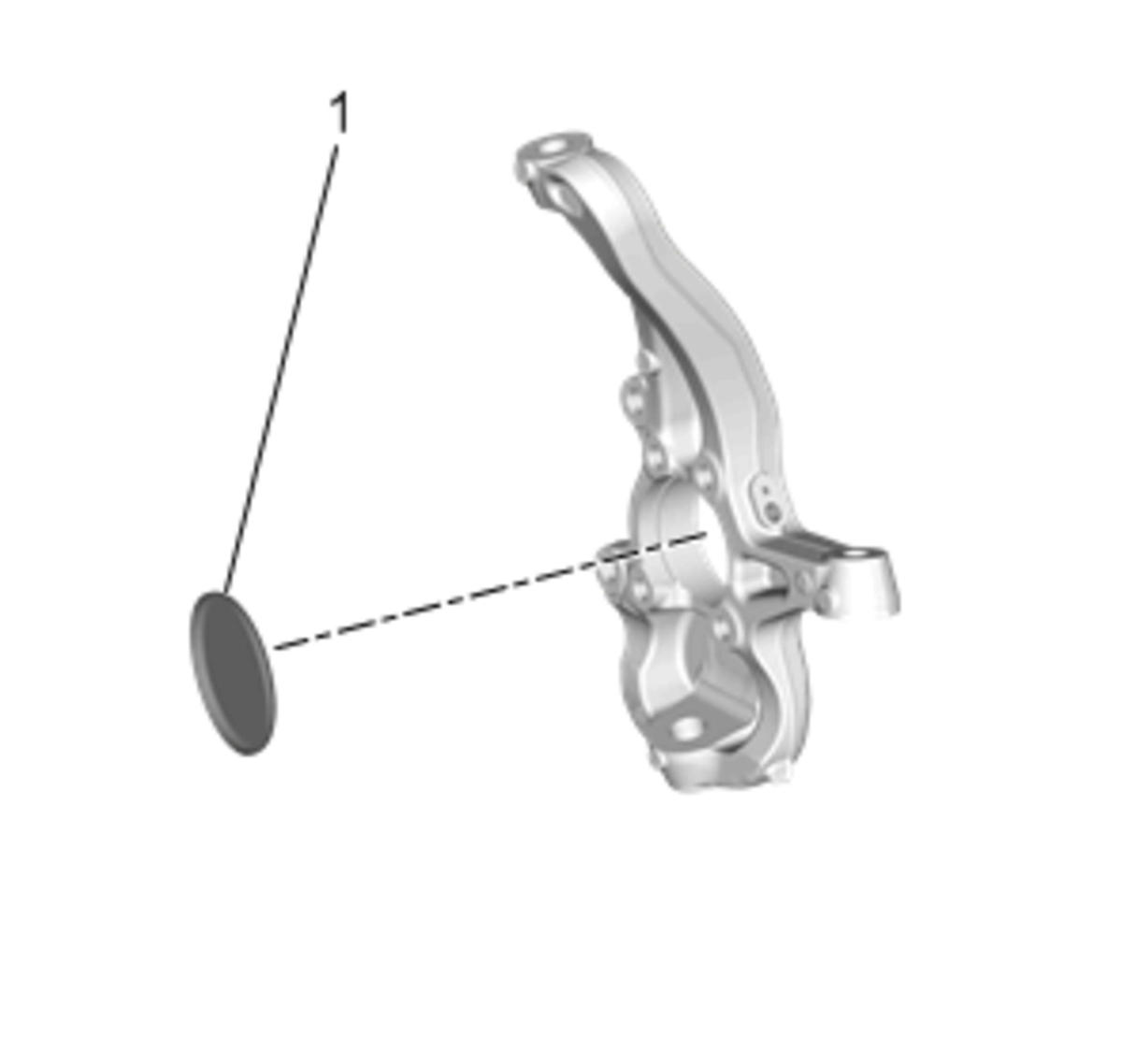

  1. GM3728780Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the front brake bearing shield is fully seated against the ridge in the steering knuckle.

    Using a hydraulic press, install the front brake bearing shield (1).

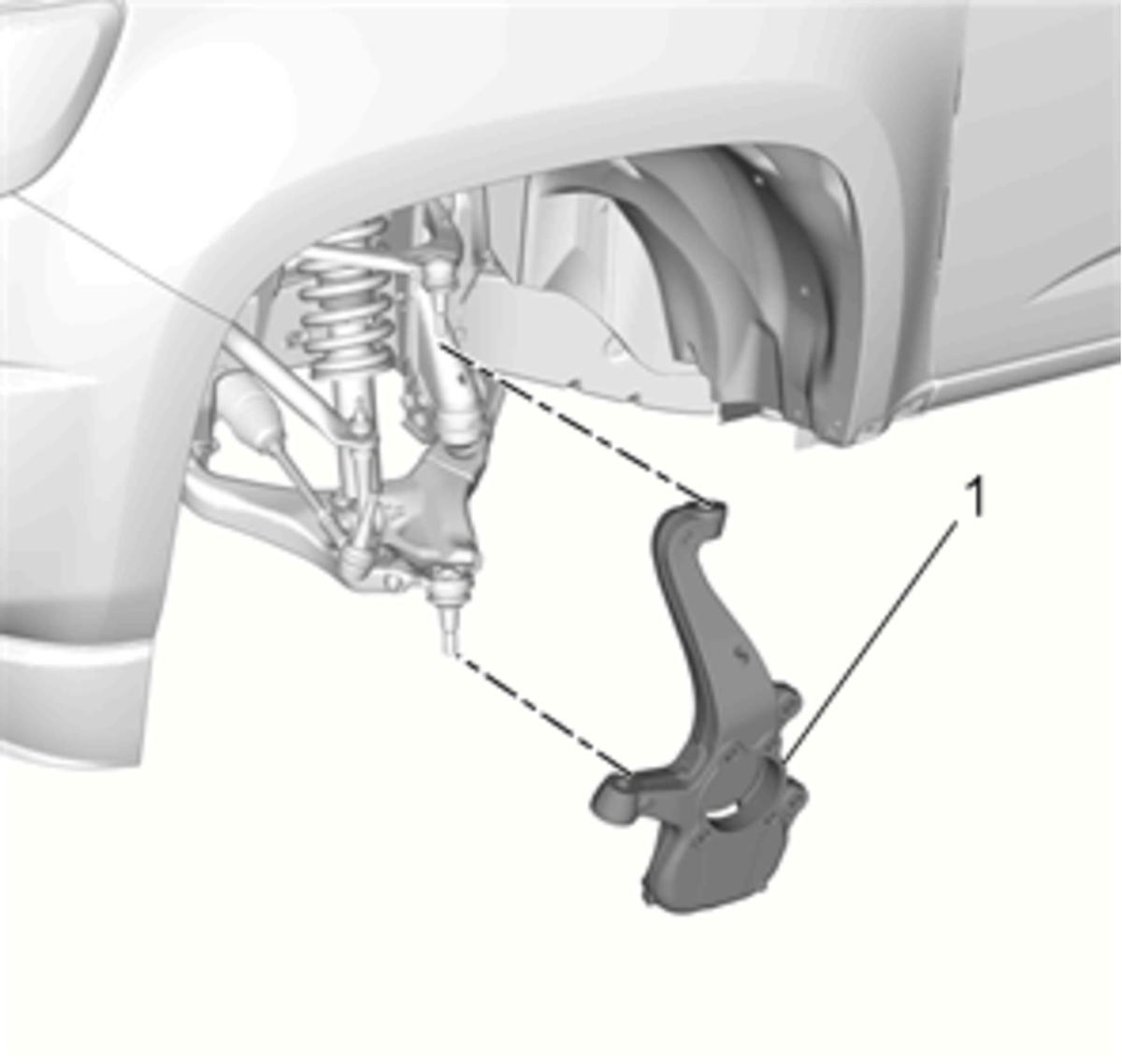

  2. GM3728674Courtesy of GENERAL MOTORS COMPANY

    Install the steering knuckle (1). Refer to Steering Knuckle Replacement (4WD without ZR2)Steering Knuckle Replacement (2WD)Steering Knuckle Replacement (4WD with ZR2) .

  3. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
