Home
>>
Chevrolet
>>
2018
>>
Sonic Premier, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Lock Control System
>>
Schematic Wiring Diagrams
>>

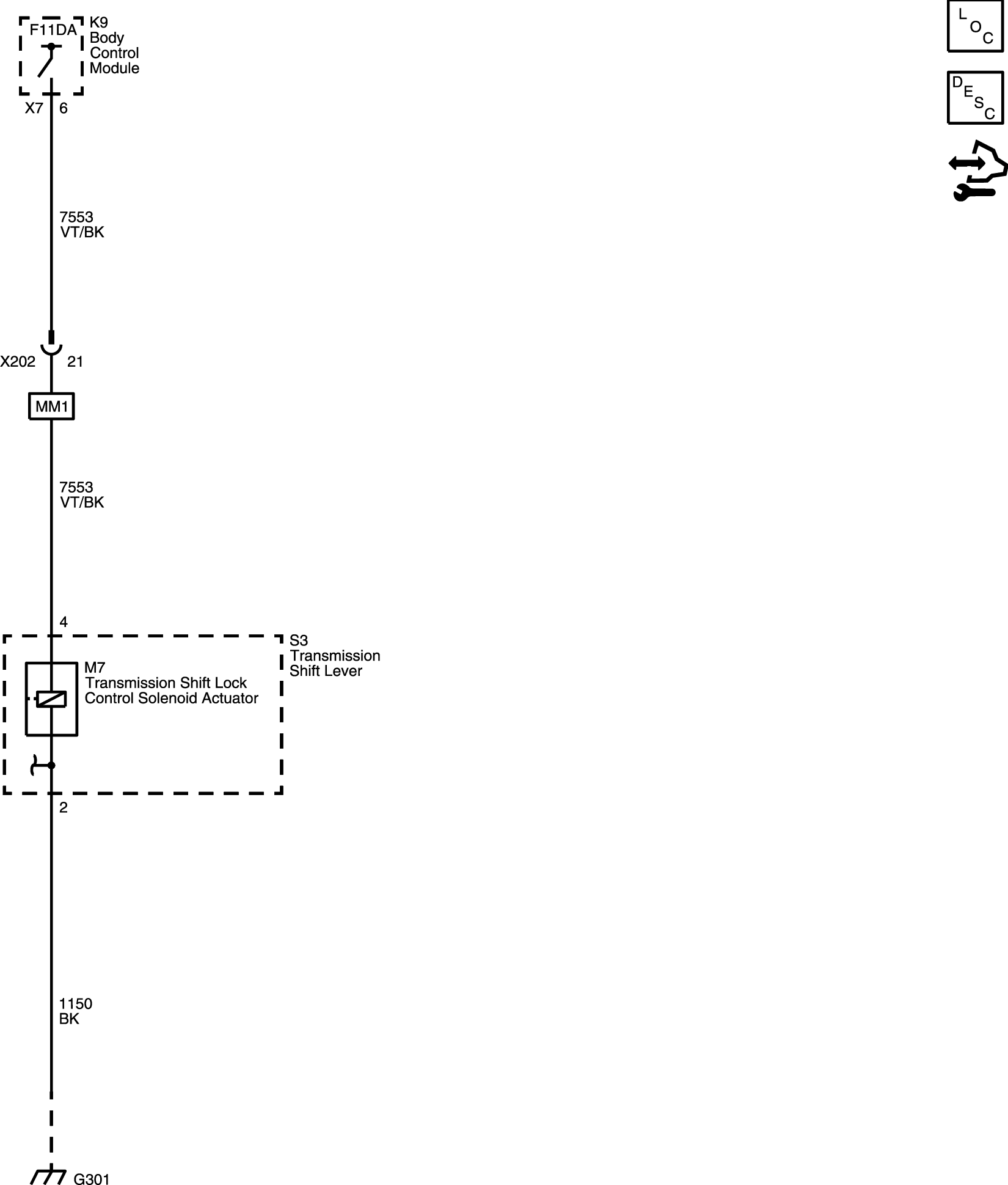

Shift Lock Control Wiring Schematics
>>
Shift Lock
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Shift Lock
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
