Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the brake caliper guide pins and seals for damage or corrosion and replace, if necessary.
Courtesy of GENERAL MOTORS COMPANY

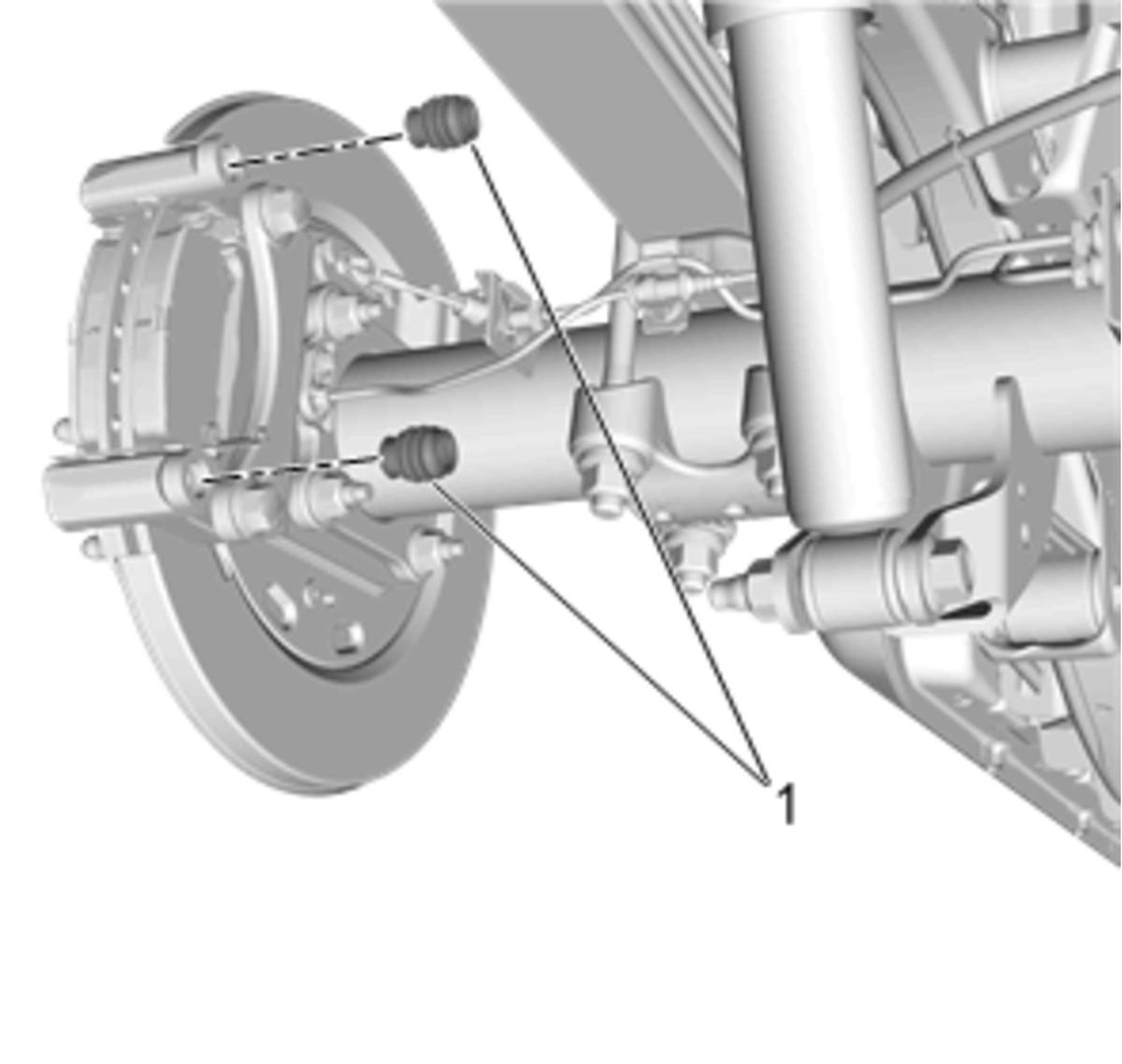

Install the brake caliper guide pin seals (1).
Courtesy of GENERAL MOTORS COMPANY

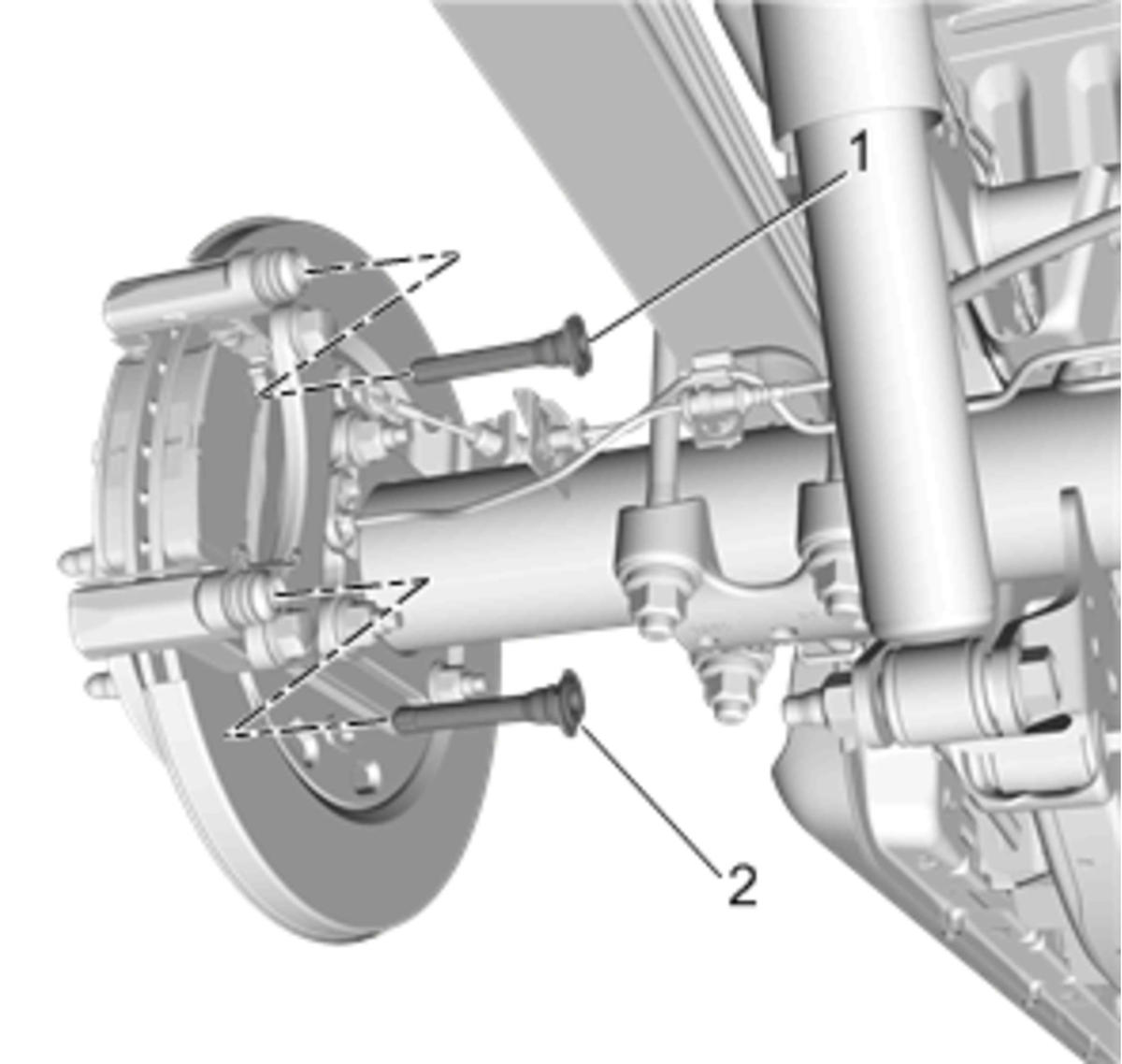

Install the upper brake caliper guide pin (1).

NOTE:

The lower brake caliper guide pin is equipped with a bushing and must be installed in the same location.

Install the lower brake caliper guide pin (2).
Position the brake caliper over the brake pads and to the caliper bracket.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

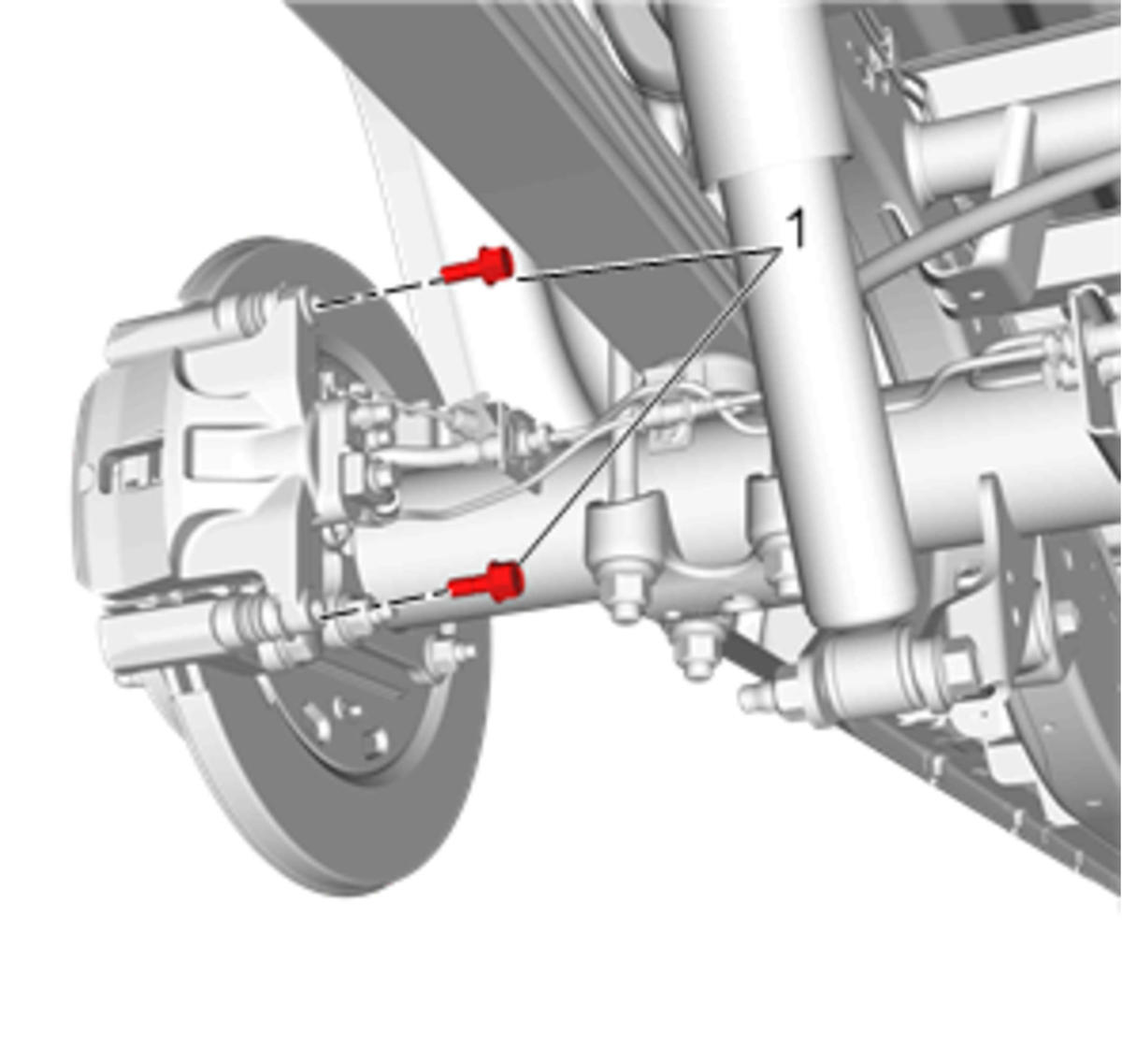

Install the brake caliper guide pin bolts (1) and tighten to 34 N.m (25 lb ft).
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
