Driver Seat Components (LHD)

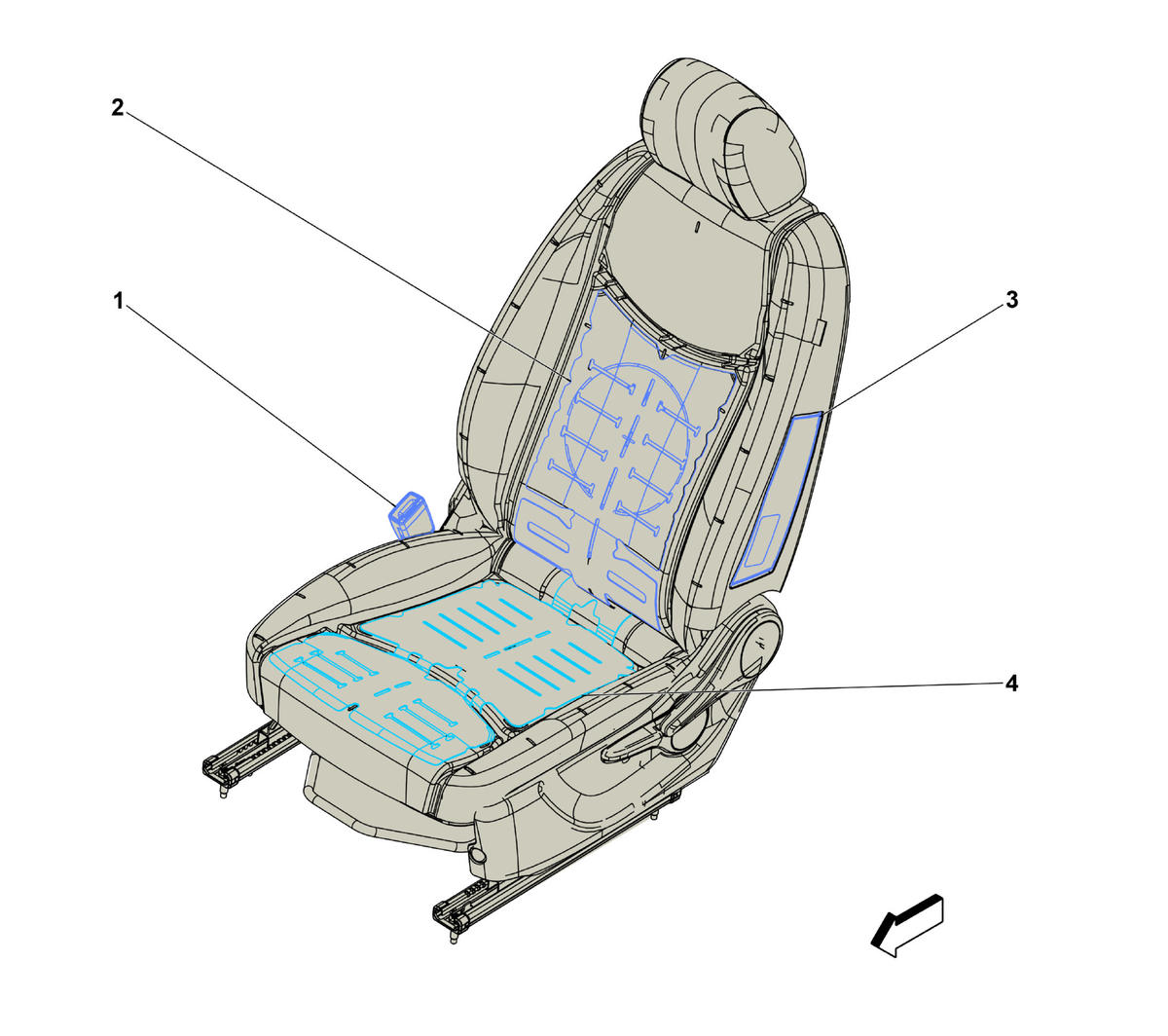

GM4873582Courtesy of GENERAL MOTORS COMPANY
Driver Seat Components (LHD)

Items
1. B88D Seat Belt Switch - Driver
2. E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back (KA1)
3. F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver
4. E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion
