Radio Control Switch Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

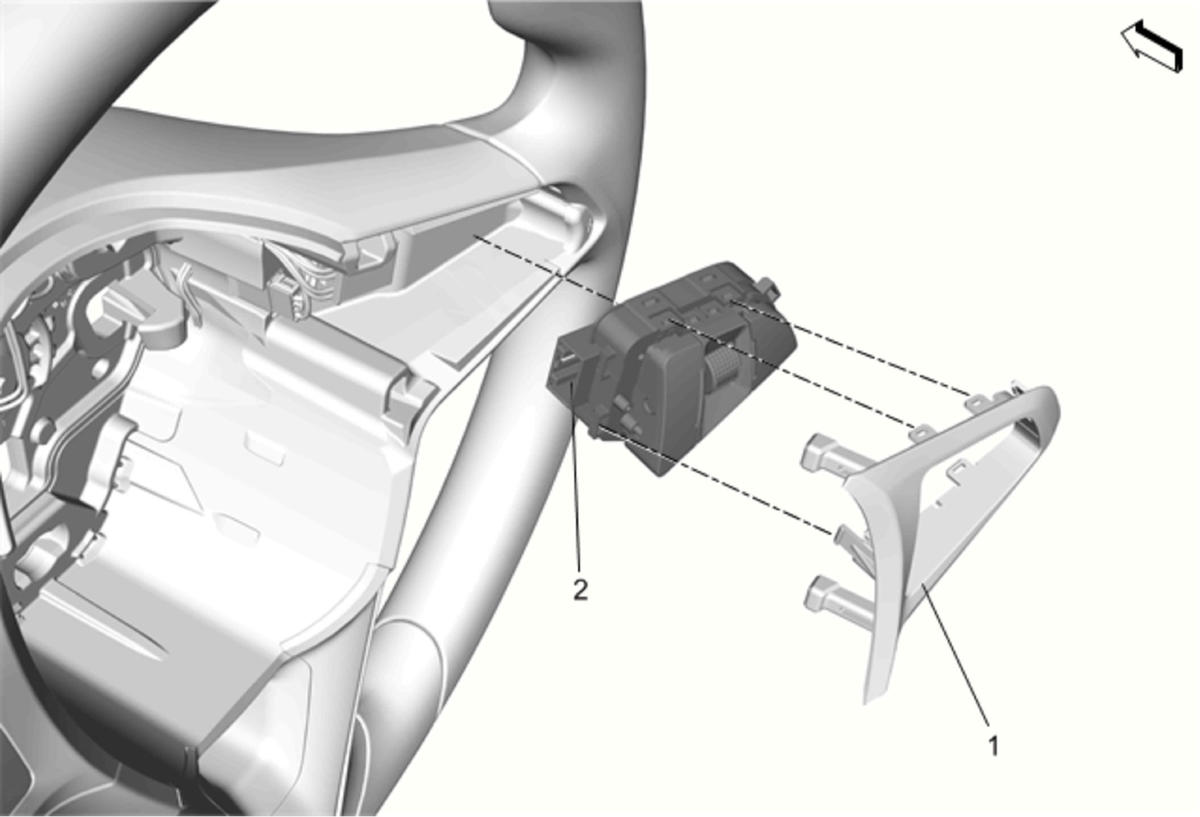

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the steering wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement . |
|
| 1 | Steering Wheel Spoke Control Switch Bezel Procedure Remove switch bezel. Refer to Steering Wheel Spoke Control Switch Bezel Replacement . |
| 2 | Radio Control Switch Assembly Procedure Disconnect the electrical connector. |
