Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

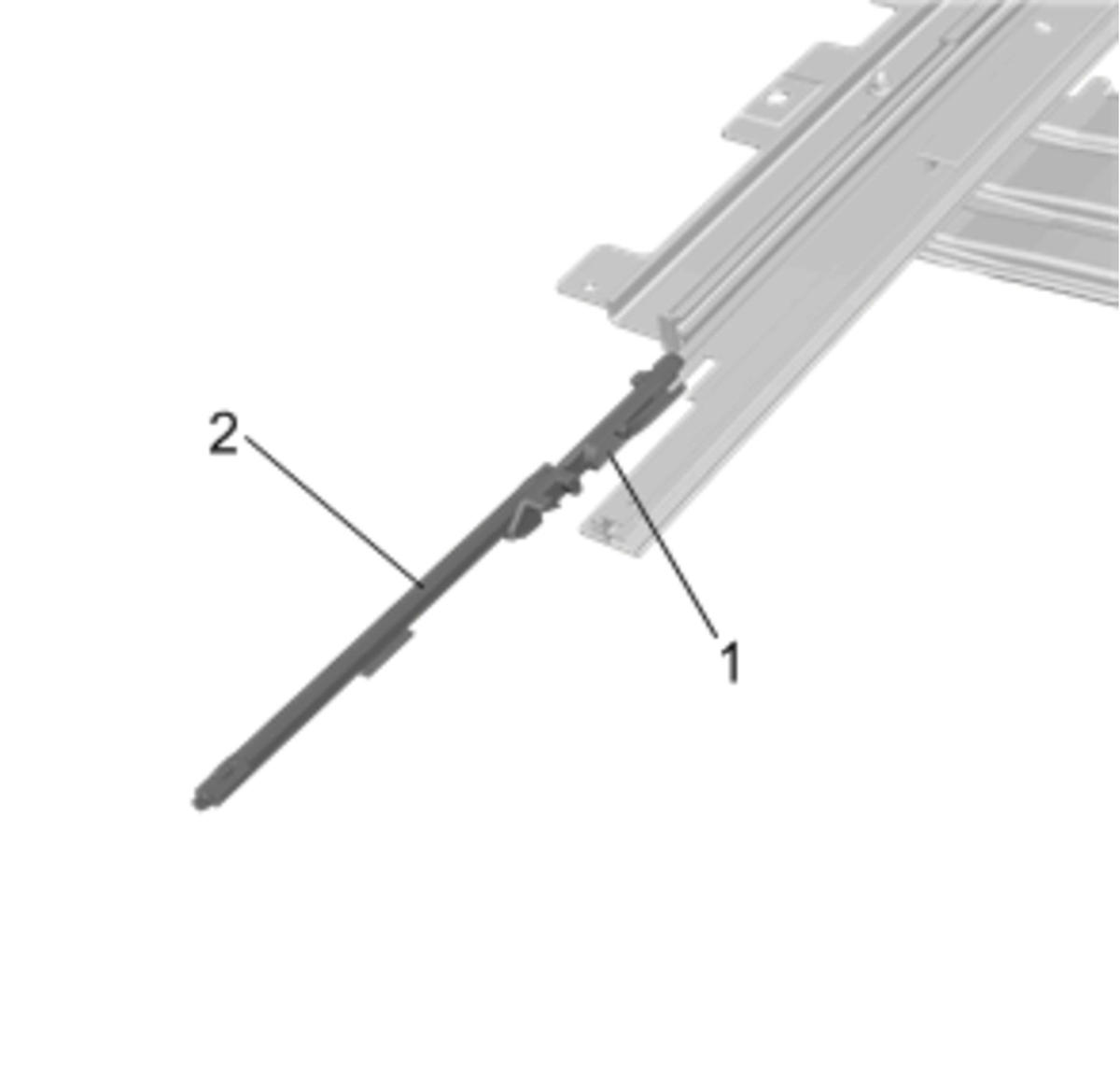

Install the retraction bar (1) and drive cable (2) to the sunroof frame.

Fig 1: Retraction Bar And Drive Cable
Courtesy of GENERAL MOTORS COMPANY
Install the locking slide (1).

Fig 2: Locking Slide
Courtesy of GENERAL MOTORS COMPANY

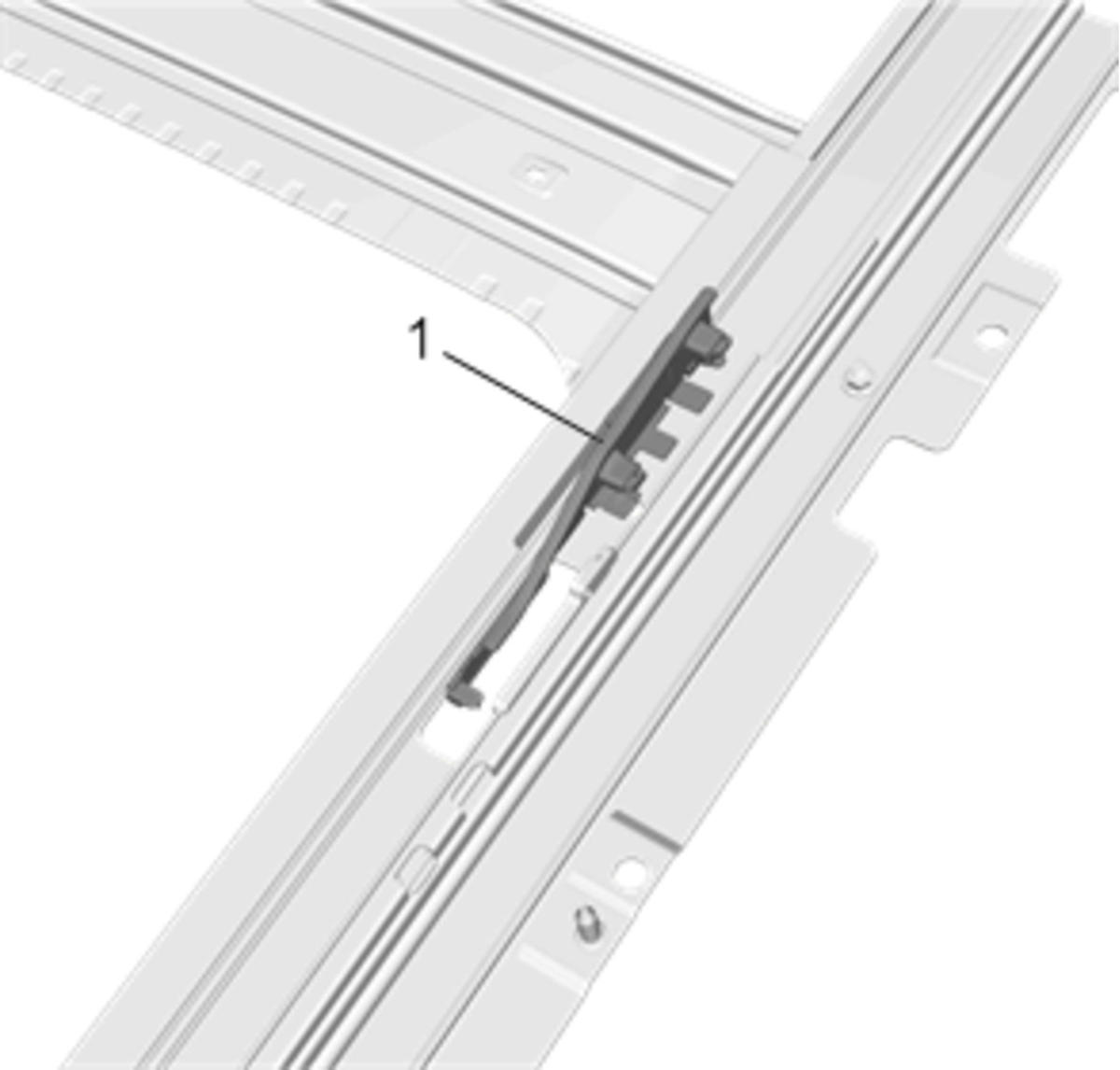

Install the curve on guide A (1).

Fig 3: Curve On Guide A
Courtesy of GENERAL MOTORS COMPANY

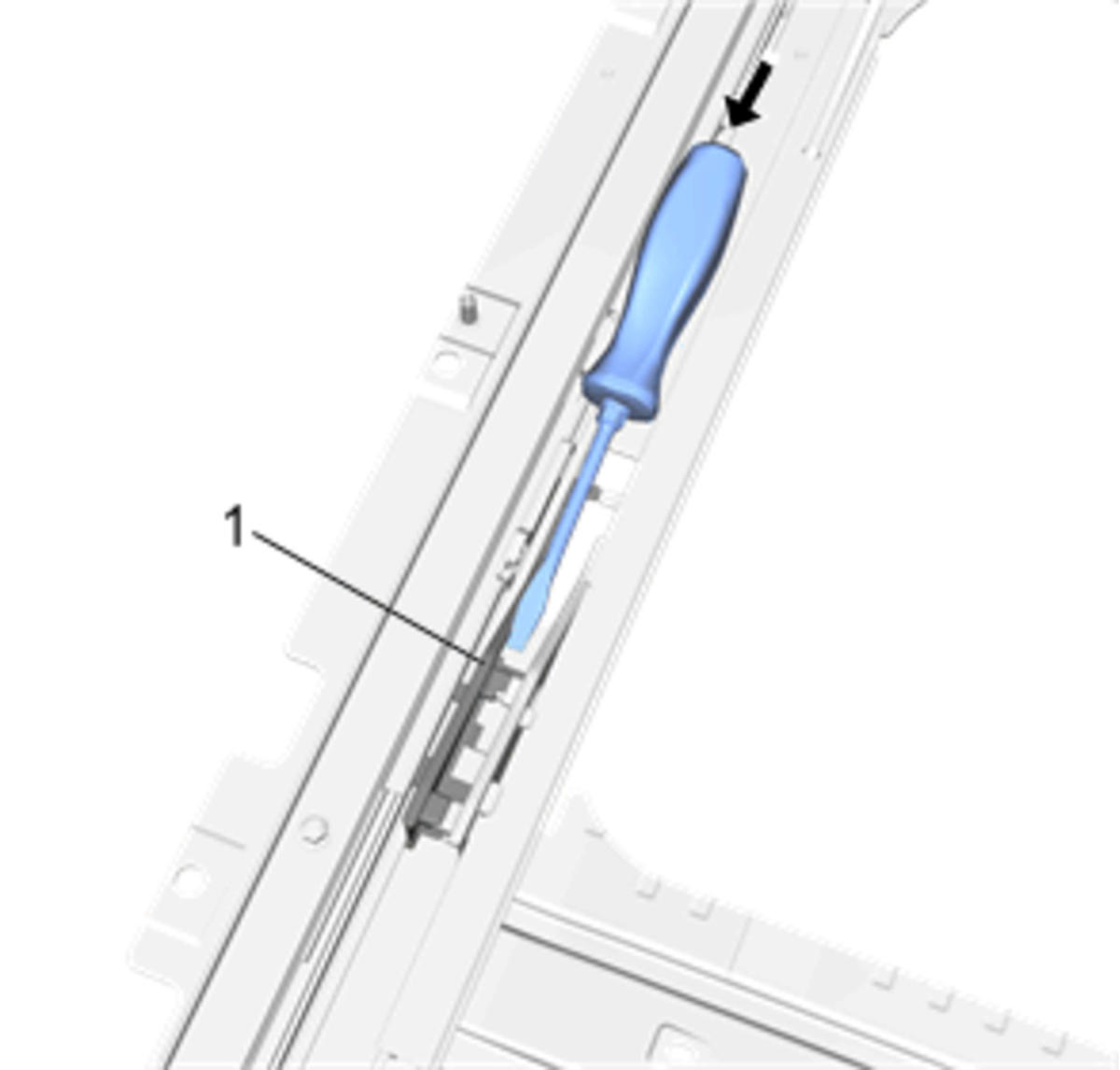

Install the curve on guide B (1). Push the middle of curve on guide using flat tip tool.

Fig 4: Curve On Guide B
Courtesy of GENERAL MOTORS COMPANY

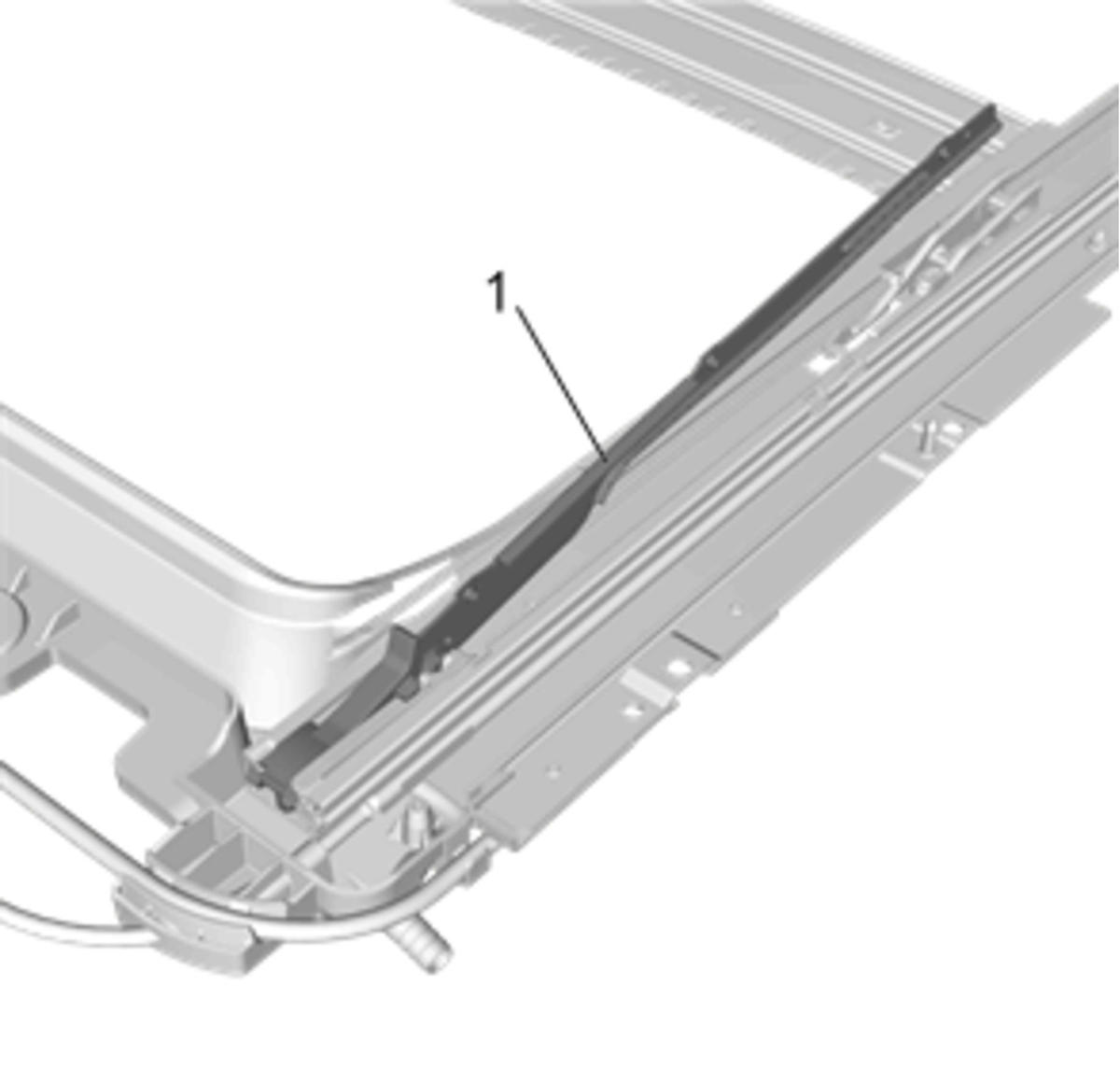

Install the curve on panel assembly (1) to the frame.

Fig 5: Curve On Panel Assembly
Courtesy of GENERAL MOTORS COMPANY

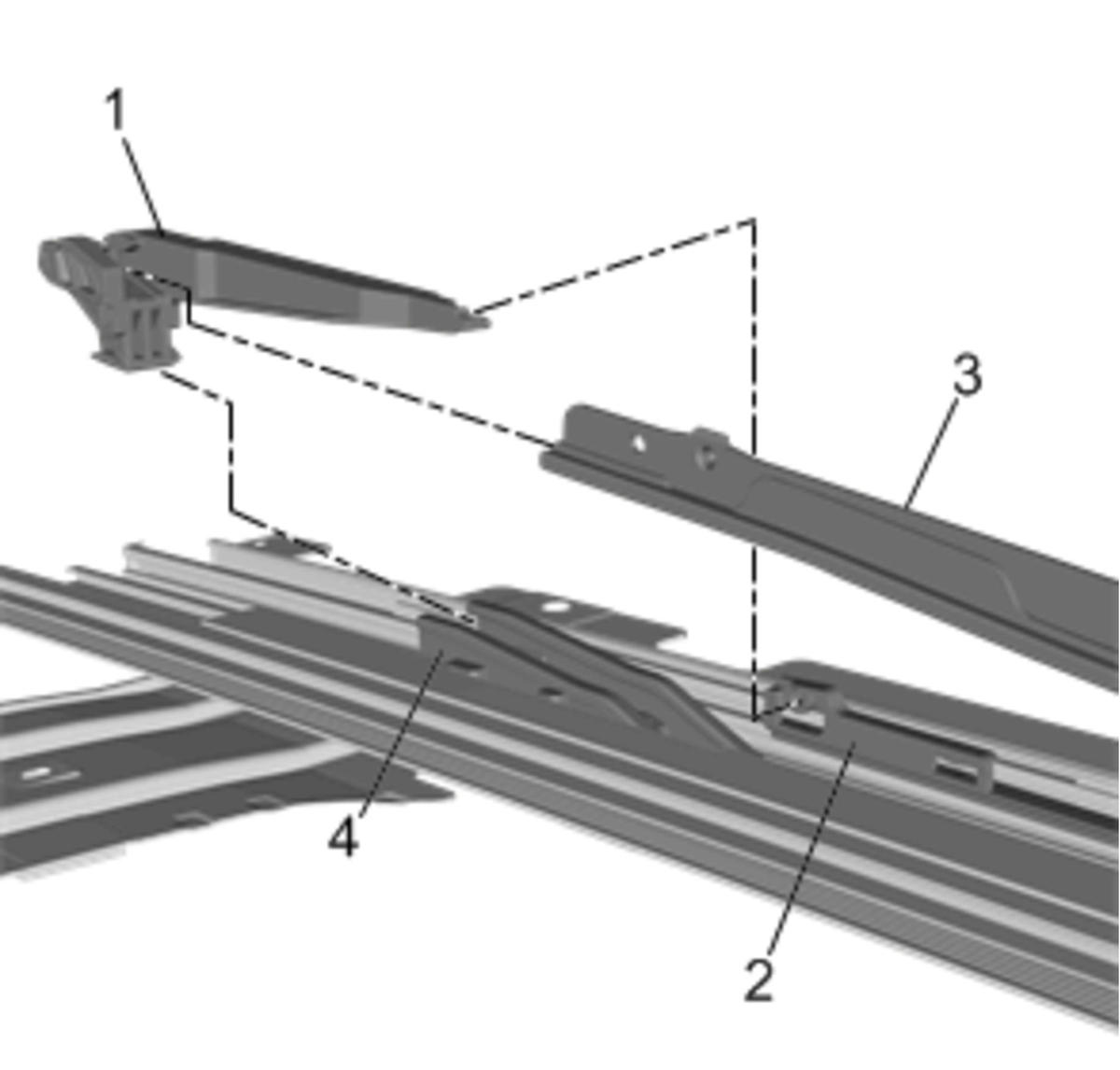

Install the drive wedge (1) to the locking slider (2), curve on panel assembly (3) and curve on guide (4).

Fig 6: Drive Wedge, Locking Slider And Curve On Panel Assembly
Courtesy of GENERAL MOTORS COMPANY

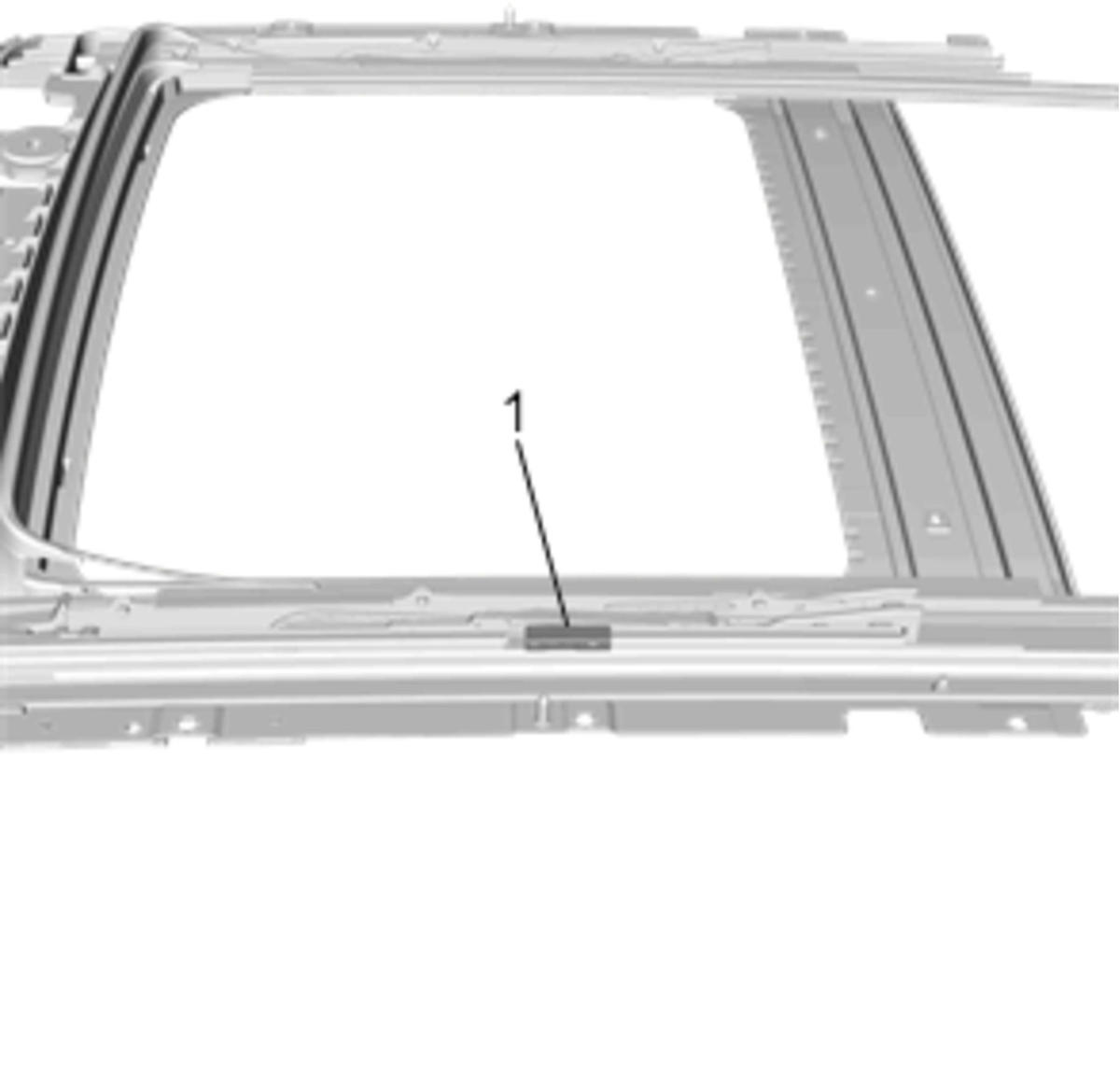

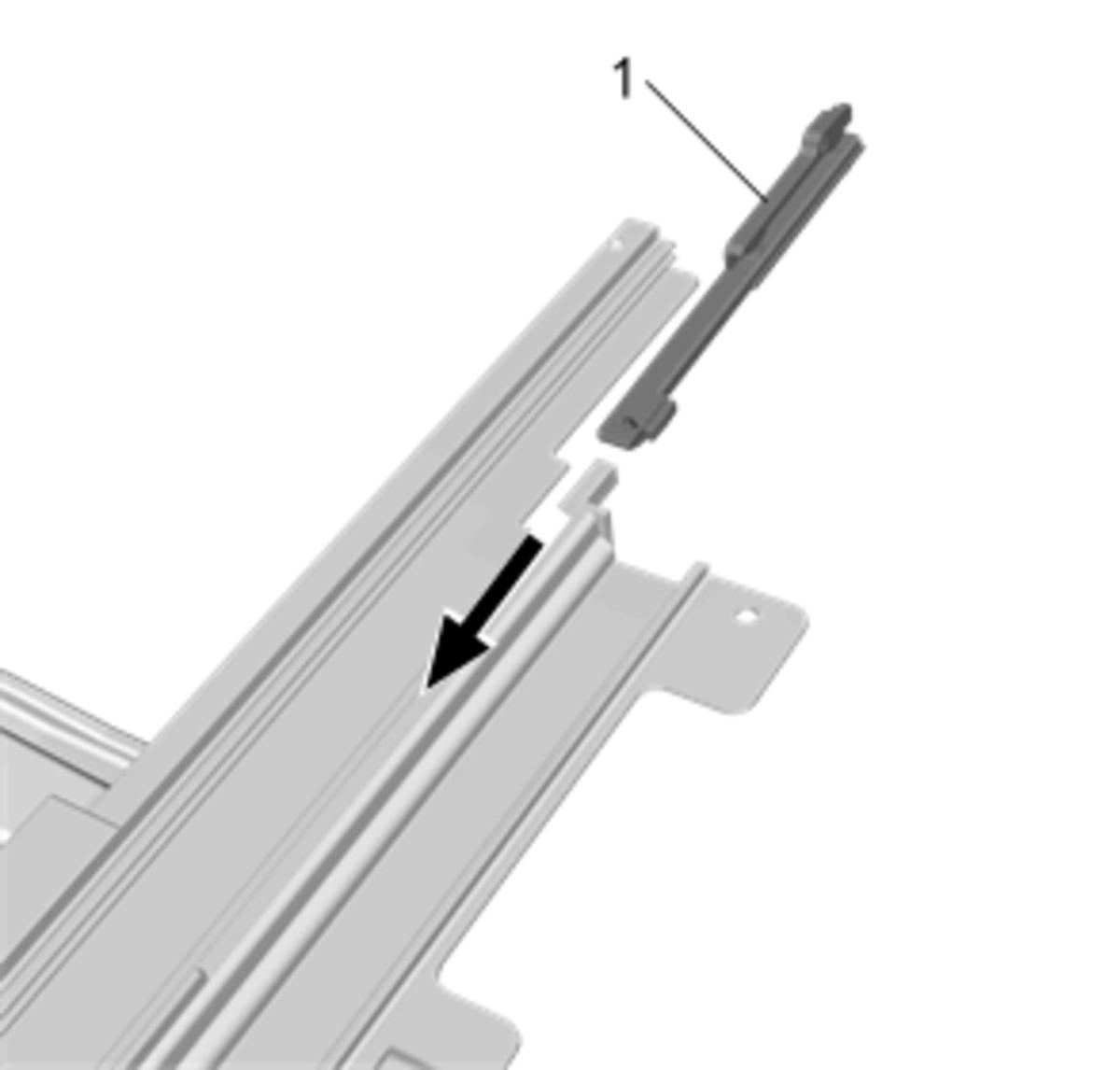

Install the locking slide buffer (1).

Fig 7: Locking Slide Buffer
Courtesy of GENERAL MOTORS COMPANY

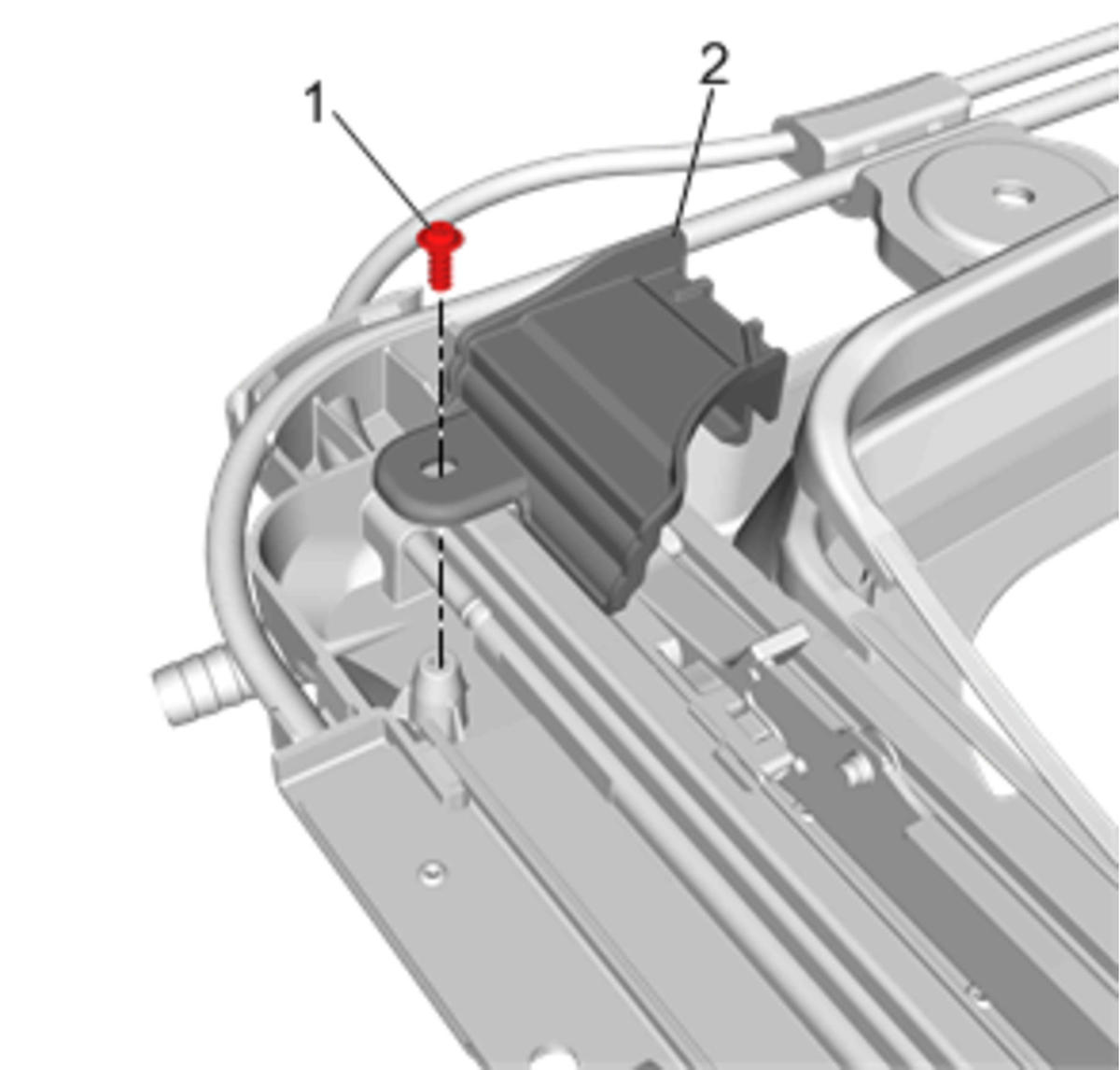

Install the front cover guide screw (1) and front cover guide (2).

Fig 8: Front Cover Guide Screw
Courtesy of GENERAL MOTORS COMPANY

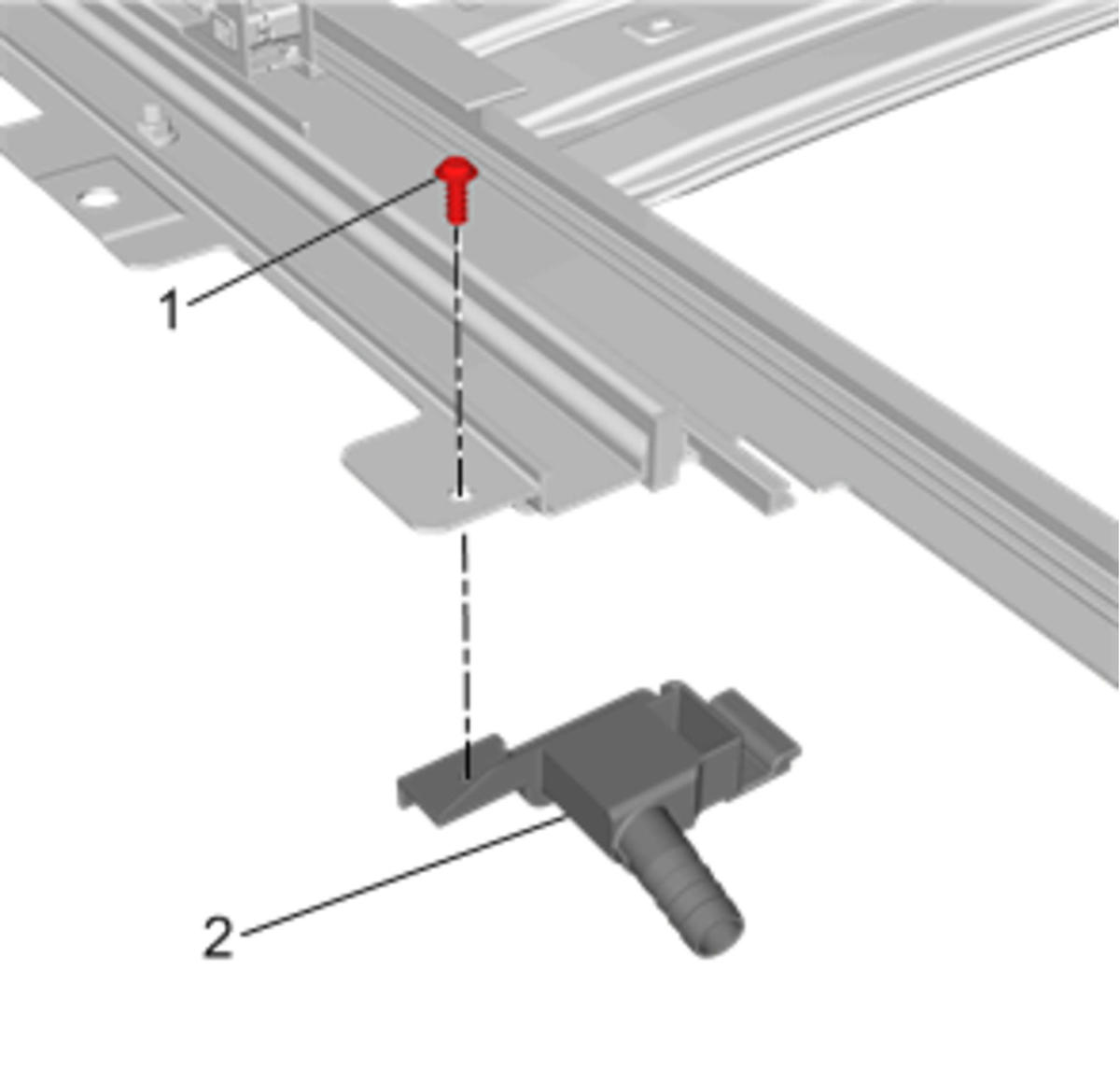

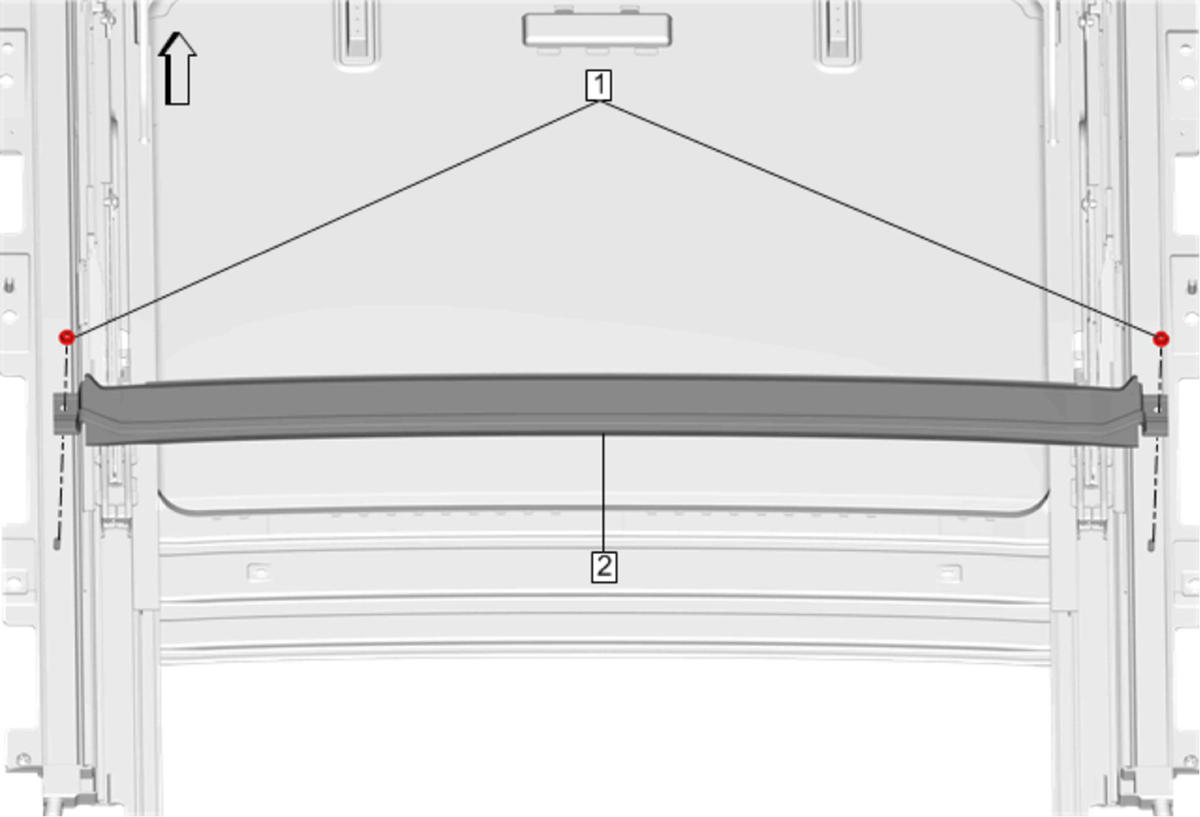

Install the rear drainage piece screw (1) and rear drainage piece (2).

Fig 9: Rear Drainage Piece Screw
Courtesy of GENERAL MOTORS COMPANY

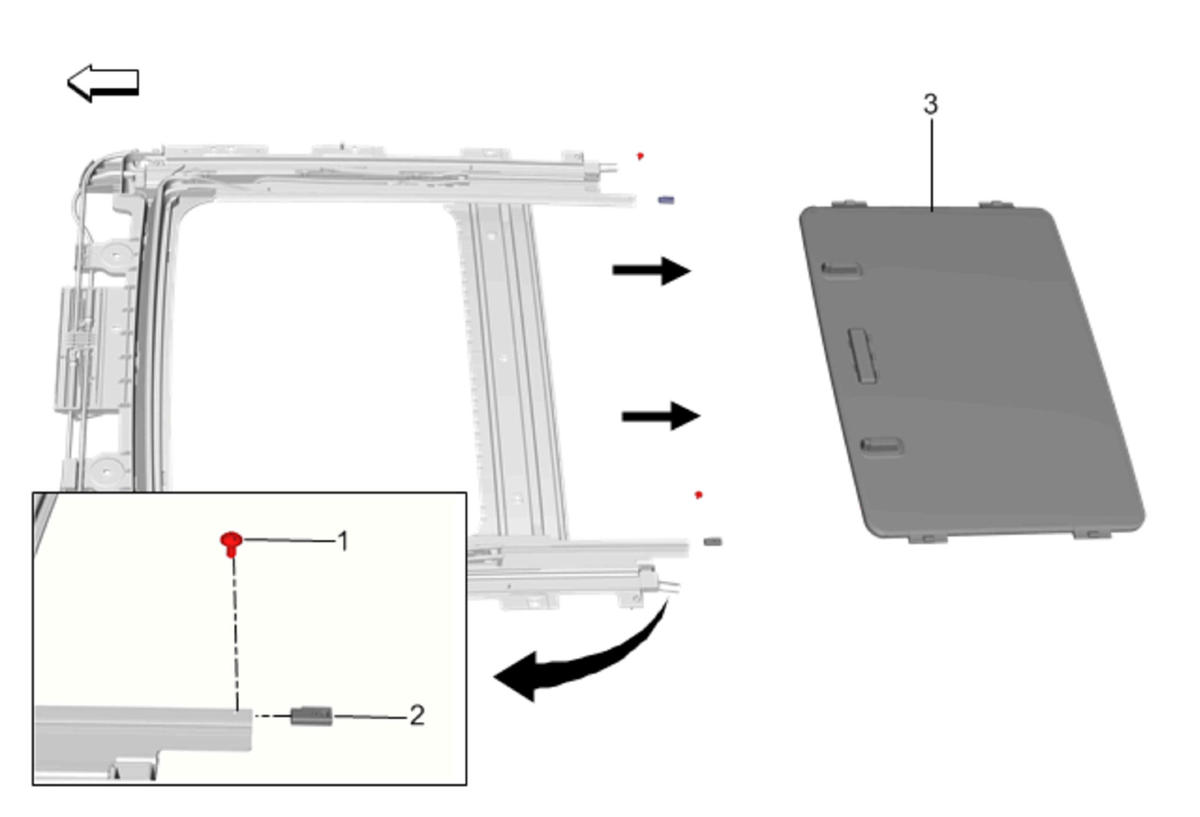

Install the sunroof sunshade. Refer to Sunroof Sunshade Replacement

Fig 10: Sunroof Sunshade
Courtesy of GENERAL MOTORS COMPANY
Install the sunroof housing drain gutter. Refer to Sunroof Housing Drain Gutter Replacement

Fig 11: Sunroof Housing Drain Gutter
Courtesy of GENERAL MOTORS COMPANY
Install the sunroof window motor. Refer to Sunroof Window Motor Replacement
Install the sunroof module assembly. Refer to Sunroof Module Assembly Replacement
