Body Control Module Shield Replacement

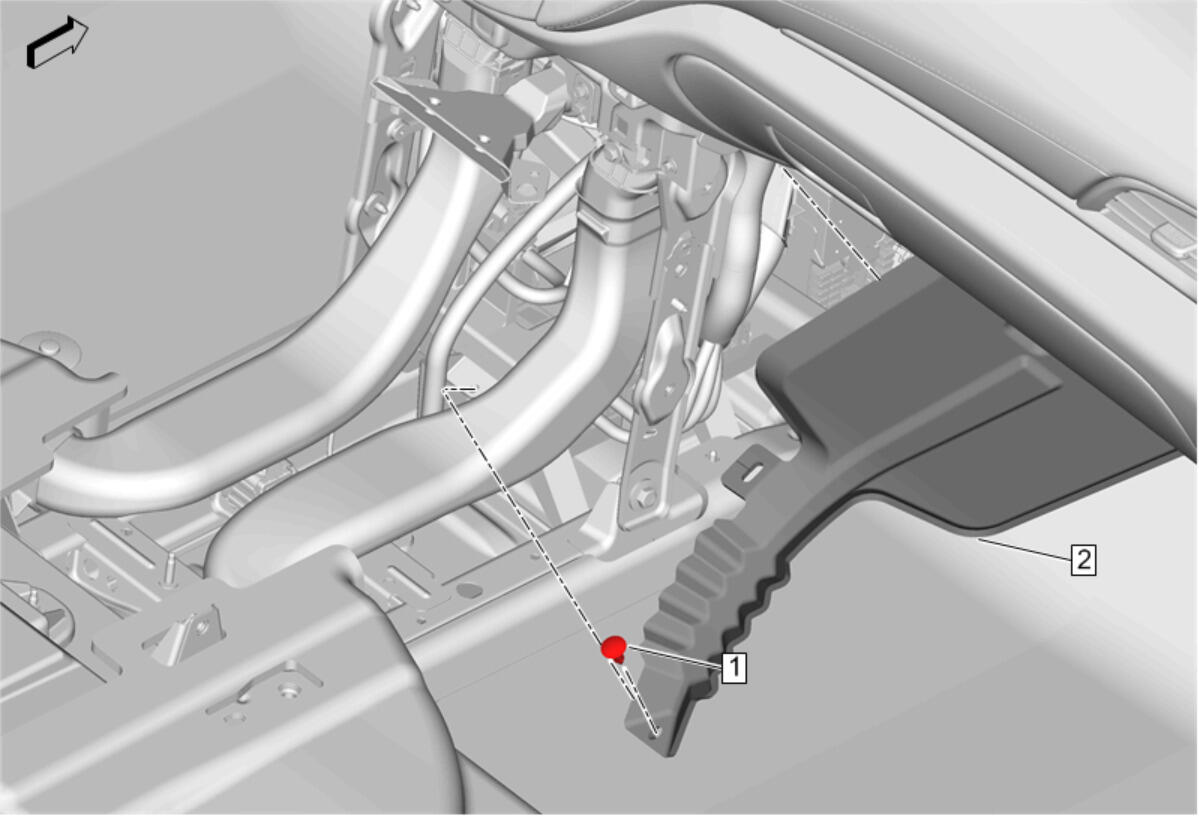

GM4758193
Callout Component Name
Preliminary Procedure
Front Floor Console Replacement
1 Body Control Module Retainer
2 Body Control Module Shield
Procedure
Reposition the wiring harness.
