Front Floor Speaker Replacement

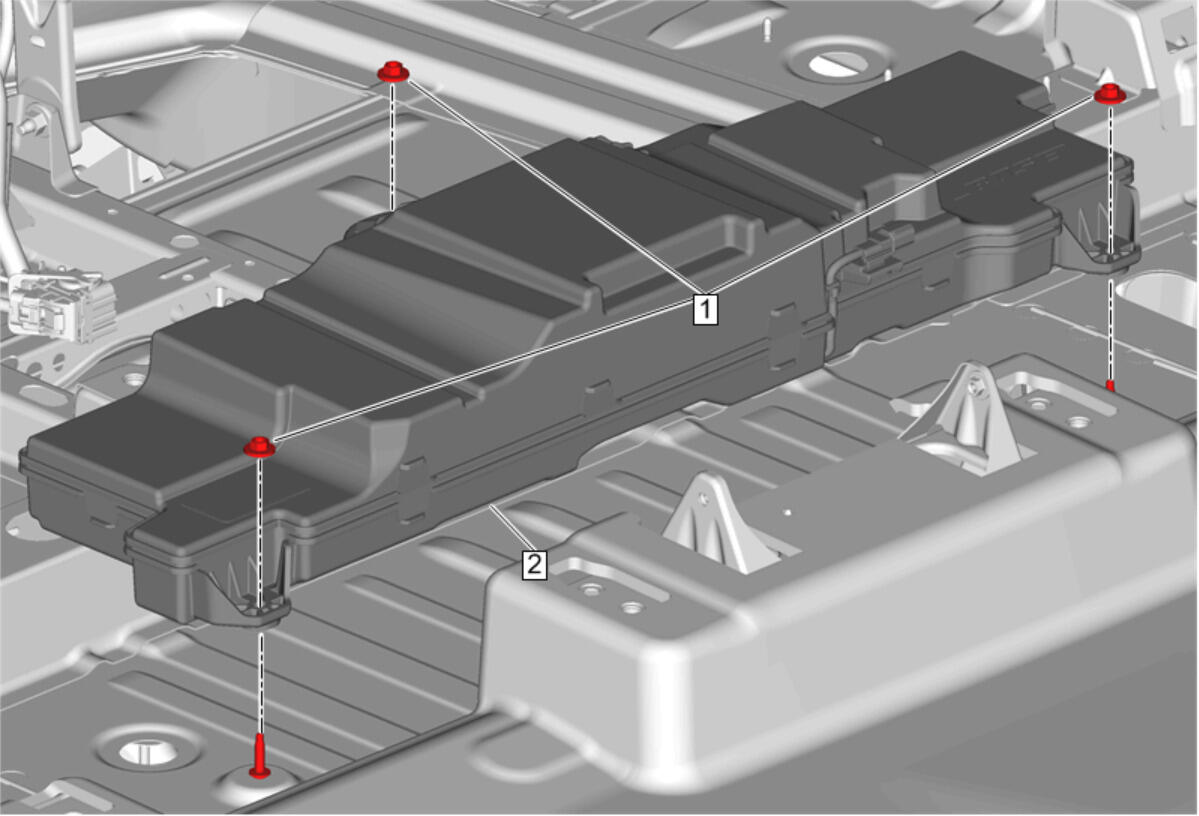

Callout
Component Name
Preliminary Procedures
Floor Rear Air Outlet Duct Replacement - Left Side
Floor Rear Air Outlet Duct Replacement - Right Side
1
Radio Front Floor Speaker Nut [3x]
CAUTION:
Fastener Caution
Tighten
6 N.m (53 lb in)
2
Front Floor Speaker
Procedure
Disconnect the electrical connector.
