Front Side Door Window Channel Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY

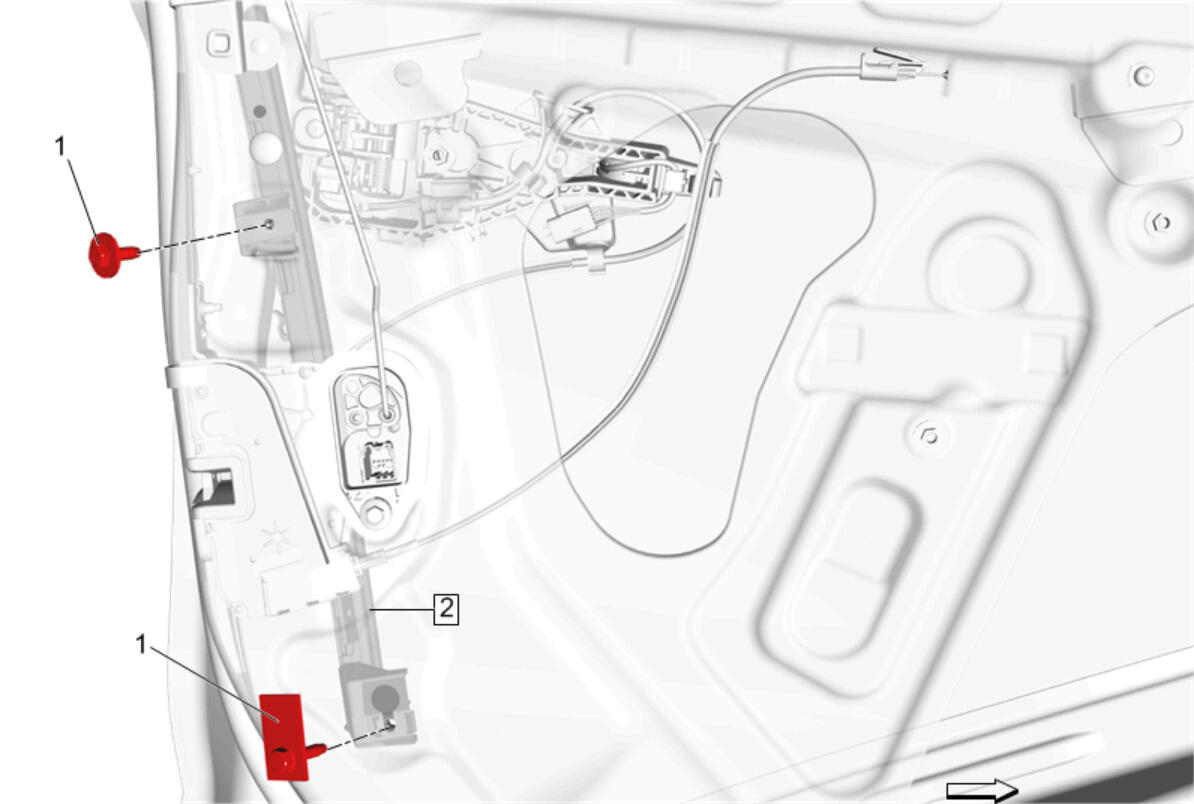

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedure Front Side Door Water Deflector Replacement
1	Front Side Door Window Channel Retainer Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Side Door Window Channel Retainer Procedure Remove the wiring harness retainer from the front side door window channel retainer, if needed.
