Front Side Door Window Regulator Replacement

Courtesy of GENERAL MOTORS COMPANY

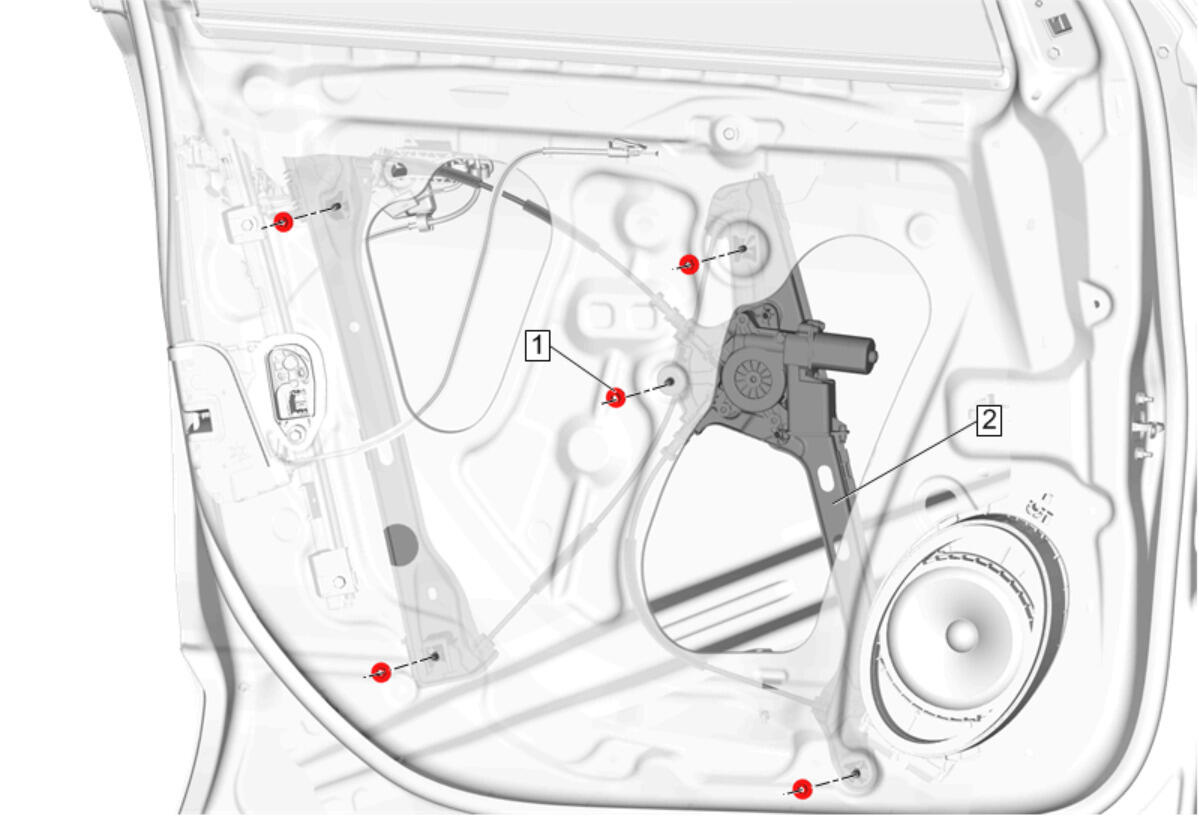

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Front Side Door Water Deflector Replacement Place the front side door window in the halfway position to gain access to window regulator guides. Using the proper tool, release the window regulator guide from the window sash. Tape the window to the upper door frame.
1	Front Side Door Window Regulator Nut [5x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Side Door Window Regulator Procedure Disconnect the electrical connector. Transfer all parts as necessary. Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Front Side Door Water Deflector Replacement
Place the front side door window in the halfway position to gain access to window regulator guides.
Using the proper tool, release the window regulator guide from the window sash.
Tape the window to the upper door frame.

Front Side Door Window Regulator Nut [5x]

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Front Side Door Window Regulator

Procedure

Disconnect the electrical connector.
Transfer all parts as necessary.
Inspect the door window for proper operation before installing the door trim panel.
