Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

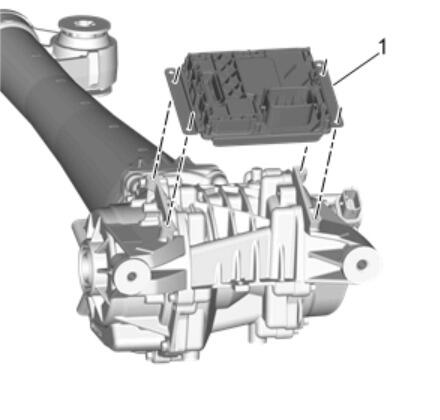

Position the clutch control module (1) onto the rear axle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
Apply loctite before installing bolts.

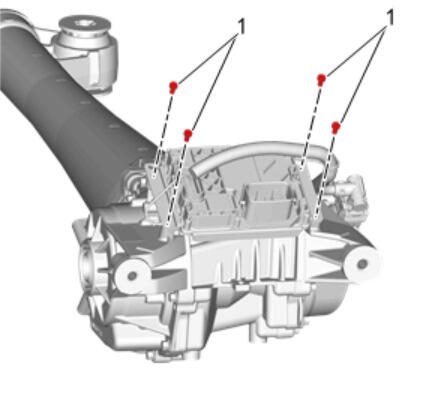

Install the clutch control module bracket bolts (1). Tighten to 6 N.m (53 lb in).
Courtesy of GENERAL MOTORS COMPANY

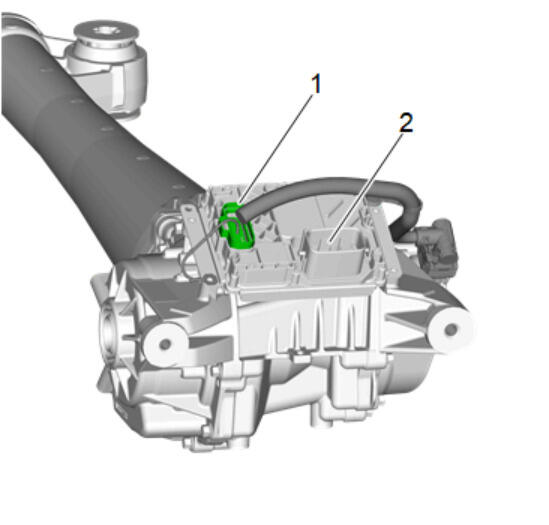

Reconnect the electrical connector (1) to the clutch control module.
Remove the support and lower the vehicle.
Reprogram the K47 clutch control module. Control Module References
