Removal Procedure
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.
Fuel/gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.
Wear safety glasses in order to avoid eye damage.
Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Caution .
High pressure fuel feed pipes are one time use only. ALWAYS install a NEW high pressure fuel feed pipe if the pipe is removed OR the fittings are loosened.
- Relieve the fuel system pressure. Fuel Pressure Relief
- Fuel Feed Pipe @ Engine - Remove and DISCARD - Fuel Feed Pipe Replacement (AWD) Fuel Feed Pipe Replacement (FWD) Fuel Feed Pipe Replacement (AWD/FWD, At Engine)
- Fuel Feed Intermediate Pipe - Remove and DISCARD - Fuel Feed Intermediate Pipe Replacement
Electrical Connector (1) - Disconnect
- Engine Coolant Thermostat Housing - Remove - Engine Coolant Thermostat Housing Replacement (LFY)

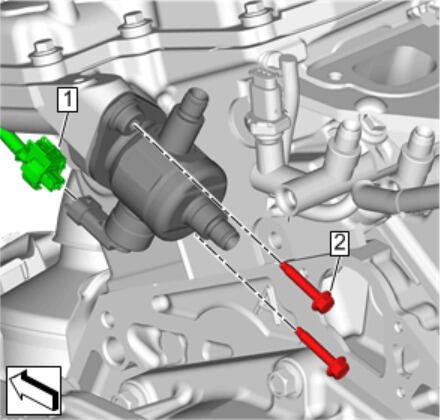

- Fuel Pump Bolt (2) - Remove and DISCARD [2x]

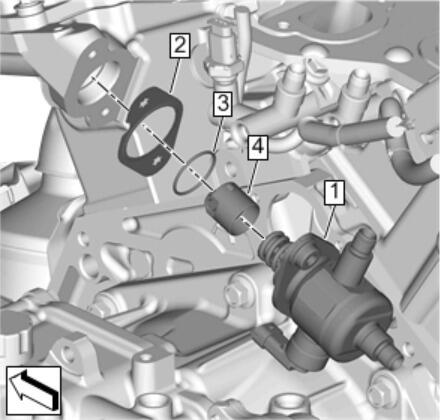

Fuel Pump (1) - Remove
- Fuel Pump Bracket Gasket (2) - Remove and DISCARD
- Fuel Pump Housing Seal (3) - Remove and DISCARD
- Valve Lifter Follower (4) - Remove
Alternately loosen the fuel pump bolts one turn at a time until the pump is fully disengaged from fuel pump lifter follower. Trying to remove the pump bolts without even side-to-side loosening may result in pump plunger damage
