Engine Control Module Bracket Replacement

Callout	Component Name
Preliminary Procedures Engine Control Module Replacement Radiator Surge Tank Overflow Hose @ Engine Control Module Bracket - Reposition away - Radiator Surge Tank Overflow Hose Replacement (LTG Radiator Surge Tank to Engine Coolant Air Bleed Pipe to Radiator)

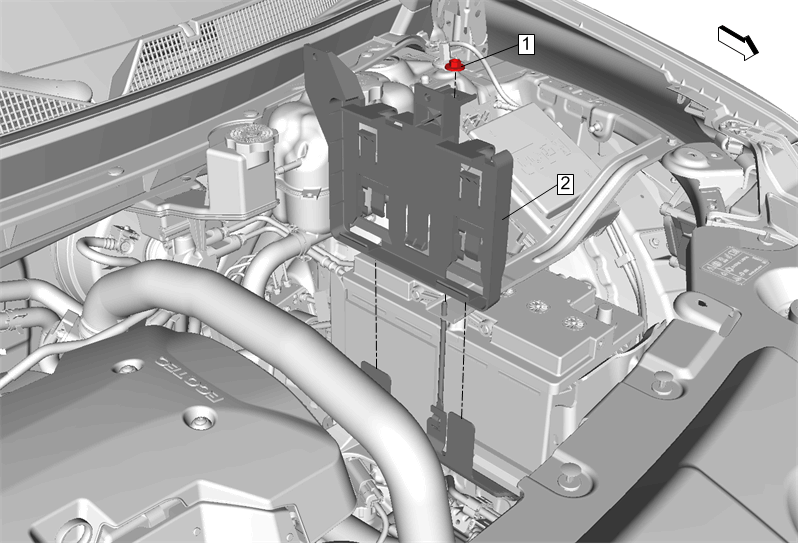

1	Engine Control Module Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Control Module Bracket

Callout

Component Name

Preliminary Procedures

Engine Control Module Bracket Nut

CAUTION:

Tighten
9 N.m (80 lb in)

Engine Control Module Bracket
