Strut, Strut Component, or Spring Replacement

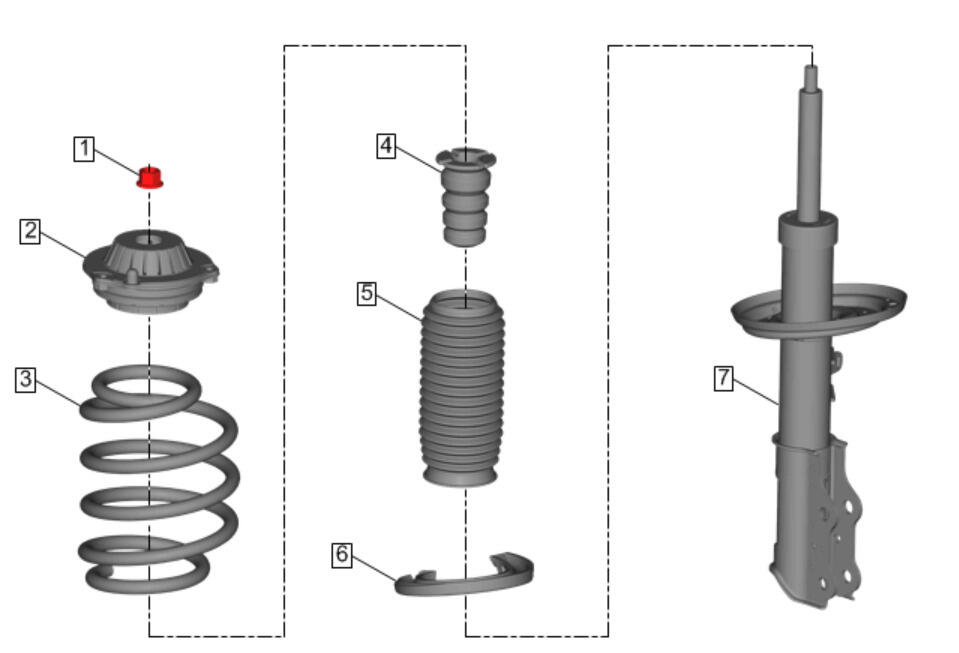

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Strut Assembly Removal and Installation To prevent personal injury and/or component damage, use the proper tools to support and compress the coil spring prior to removal of the strut shaft nut when removing the coil spring. The coil spring is under extreme pressure and can become a projectile should the spring separate from the strut before all of the tension is relieved. |
|
| 1 | Front Strut Rod Mount Nut
CAUTION:
Refer to Fastener Caution . Procedure
Tighten 70 N.m (52 lb ft) Special Tools
Equivalent regional tools:Special Tools |
| 2 | Front Suspension Strut Mount |
| 3 | Front Coil Spring |
| 4 | Front Suspension Strut Bumper |
| 5 | Front Strut Boot |
| 6 | Front Coil Spring Lower Insulator |
| 7 | Front Suspension Strut |
