Installation Procedure

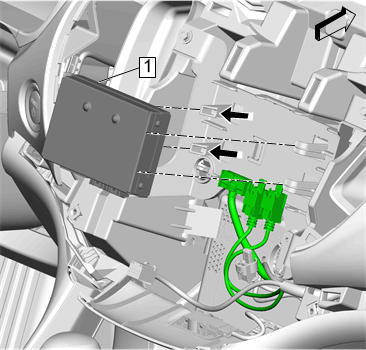

  1. GM4779525

    Human Machine Interface Control Module Bypass Module(1) - Install

  2. Connect the electrical connectors.

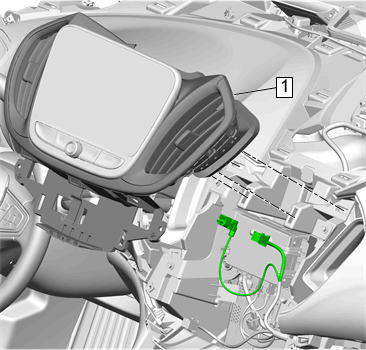

  3. GM4779514

    Connect the electrical connectors.

  4. Instrument Panel Center Air Outlet (1) - Install

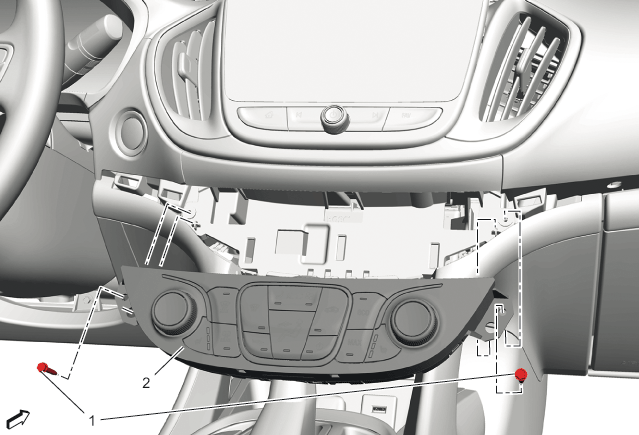

  5. GM4084553

    Heater and Air Conditioning User Interface Control(2) - Install - Heater and Air Conditioning User Interface Control Replacement

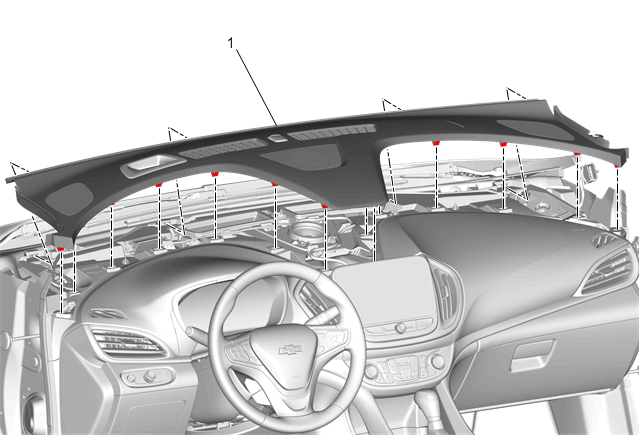

  6. GM4074964

    Instrument Panel Extension(1) - Install - Instrument Panel Extension Replacement
