Liftgate Outside Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

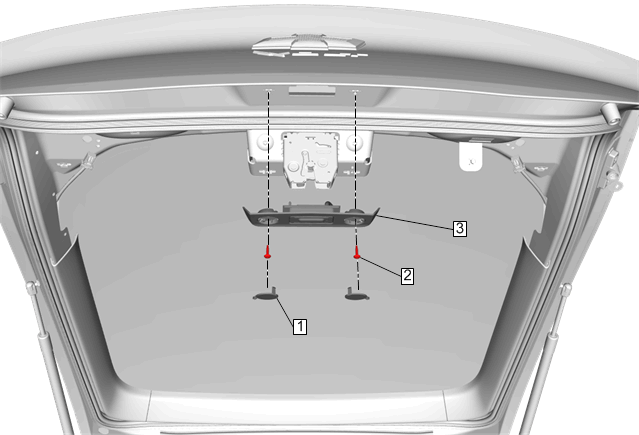

Callout	Component Name
Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement .
1	Liftgate Outside Handle Bolt Cap [2x]
2	Liftgate Outside Handle Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Liftgate Outside Handle Procedure Release the retainers. Disconnect the electrical connector. Transfer components as necessary.
