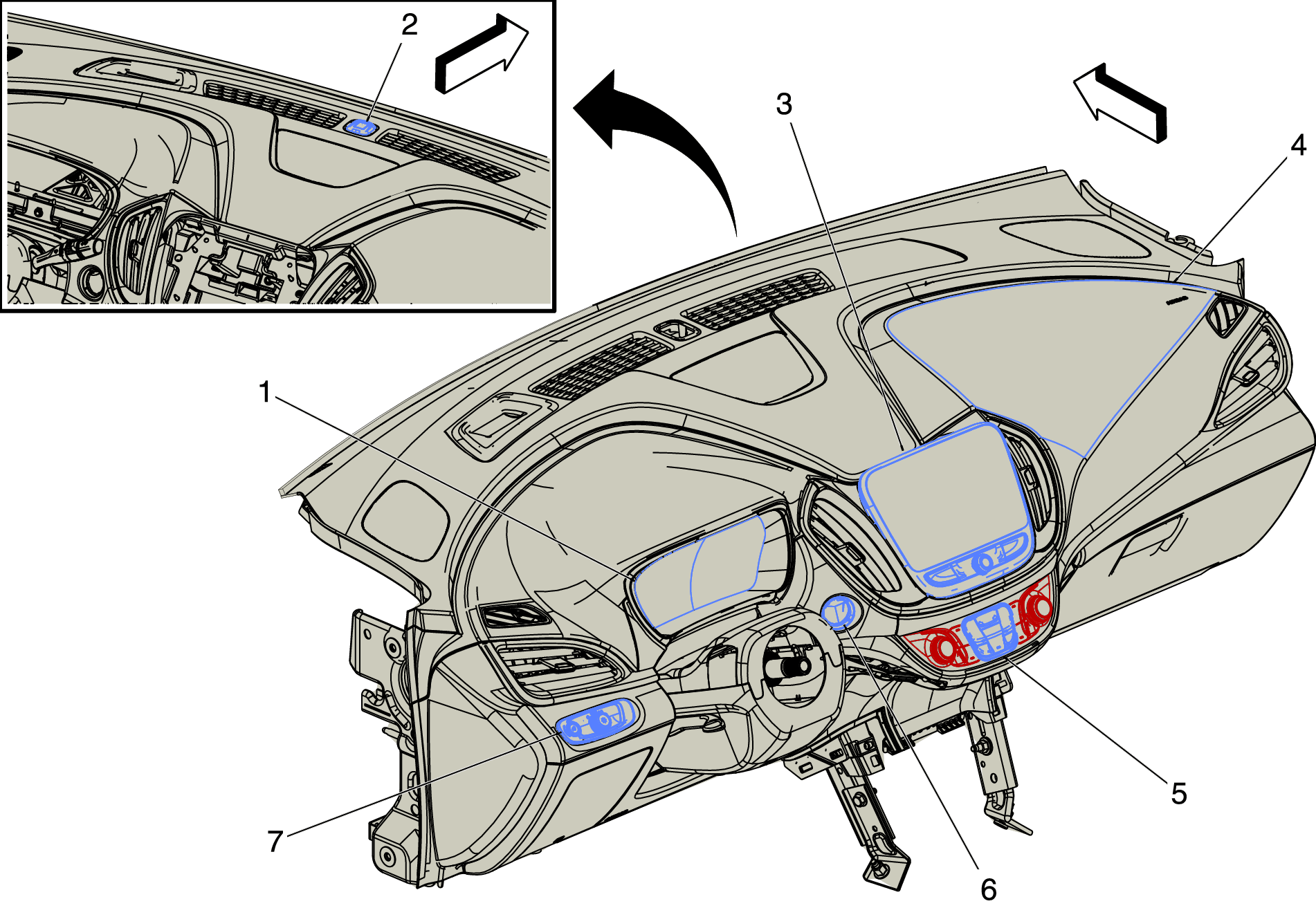

Instrument Panel Components (1 of 4)

GM4169574Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components (1 of 4)

Items
1. P16 Instrument Cluster P16 Instrument Cluster
2. B305 Ambient Light/Sunload Sensor and Battery State of Charge Indicator B305 Ambient Light/Sunload Sensor and Battery State of Charge Indicator
3. P17 Info Display Module P17 Info Display Module X1P17 Info Display Module X2
4. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2F101 Passenger Instrument Panel Air Bag X3
5. A26 HVAC Controls A26 HVAC Controls
6. S83 Vehicle On/Off Switch S83 Vehicle On/Off Switch
7. S30 Headlamp Switch S30 Headlamp Switch
