Instrument Panel Components (3 of 4)

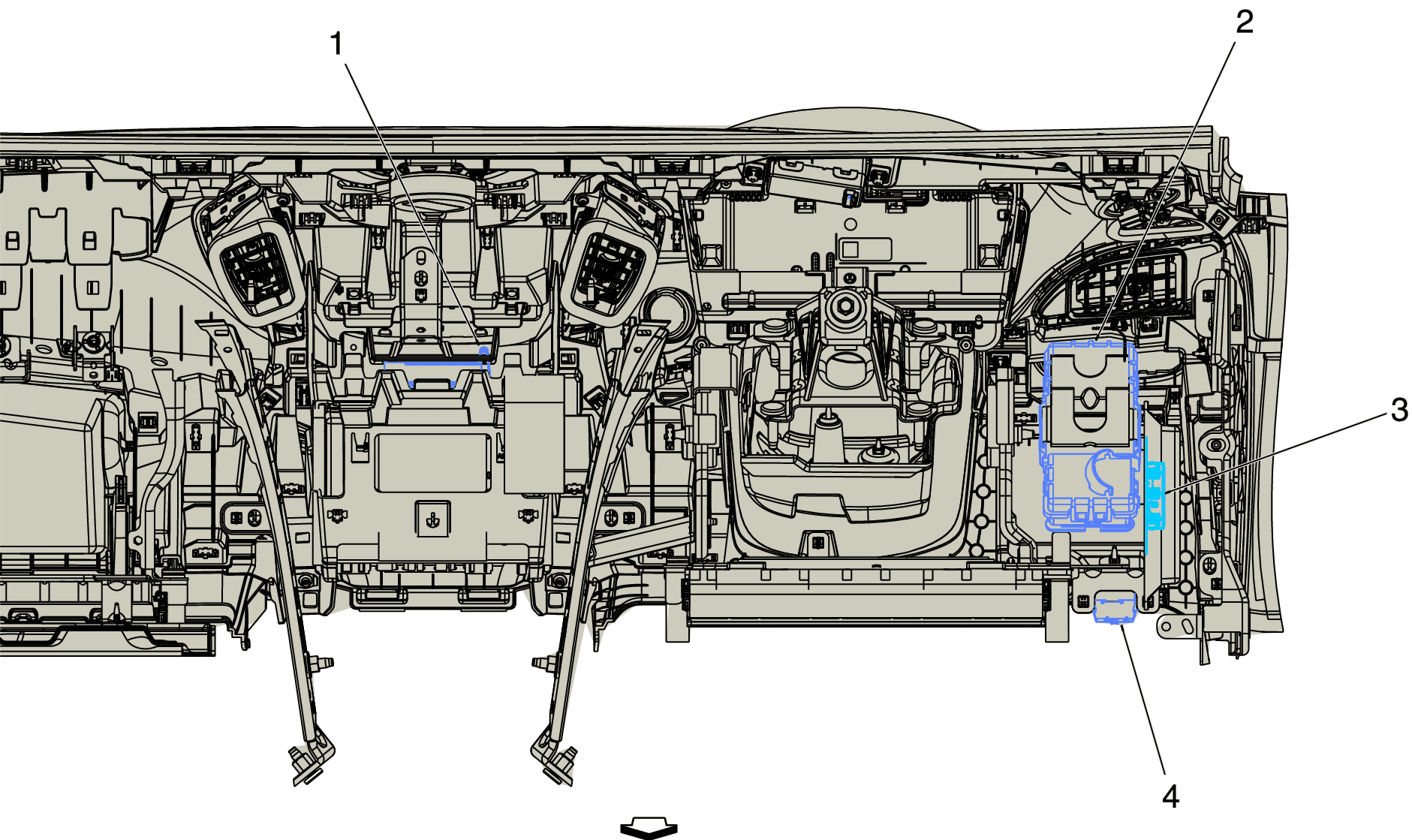

GM4582525Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components (3 of 4)

Items
1. T10B Keyless Entry Antenna - Instrument Panel Compartment T10B Keyless Entry Antenna - Instrument Panel Compartment
2. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel
3. T15 Navigation Antenna Signal Splitter T15 Navigation Antenna Signal Splitter X1T15 Navigation Antenna Signal Splitter X2T15 Navigation Antenna Signal Splitter X3
4. X84 Data Link Connector X84 Data Link Connector
