Left Front of Engine Components (LCV)

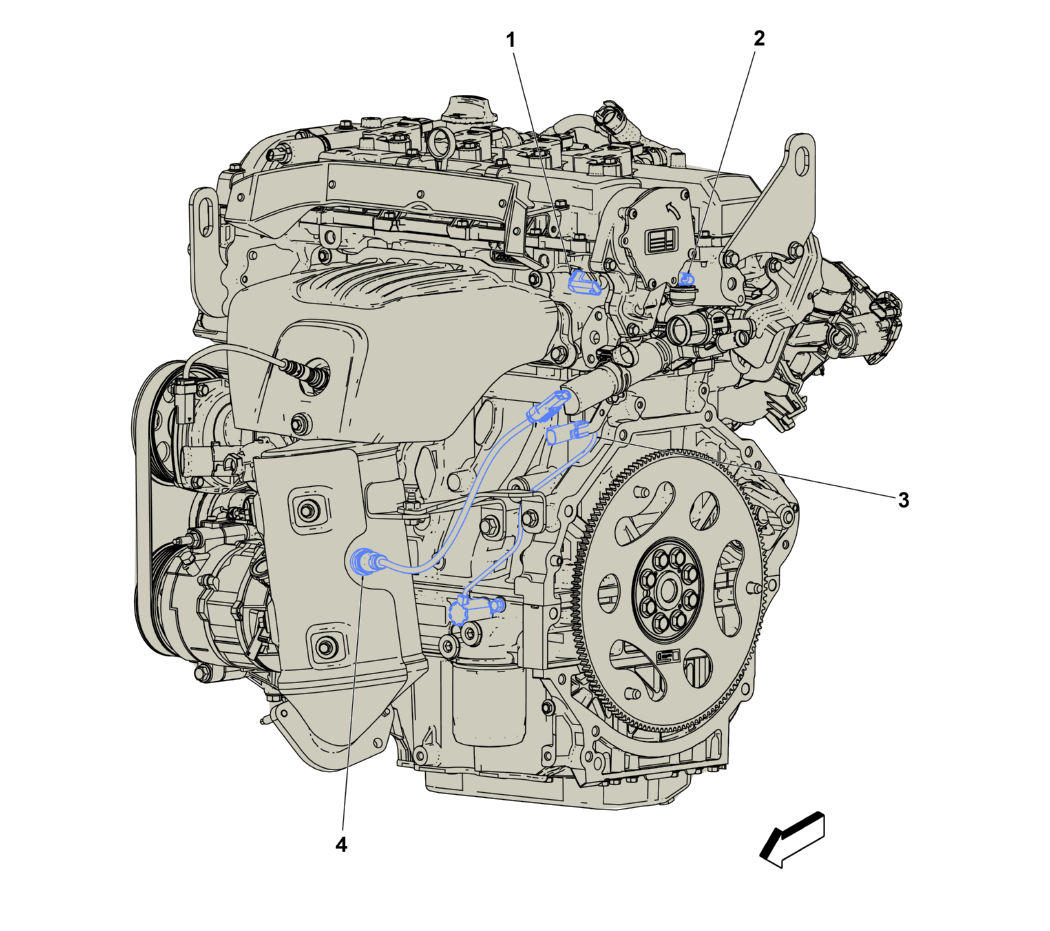

GM5128781Courtesy of GENERAL MOTORS COMPANY
Left Front of Engine Components (LCV)

Component Name Callout
B23E Camshaft Position Sensor - Exhaust (LCV/LSY) B23E Camshaft Position Sensor - Exhaust (LCV) 1
B34 Engine Coolant Temperature Sensor (LCV/LGX) B34 Engine Coolant Temperature Sensor (LCV) 2
Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LCV) 3
B52B Heated Oxygen Sensor 2 (LCV/LSY) B52B Heated Oxygen Sensor 2 (LCV) 4
