Installation Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:

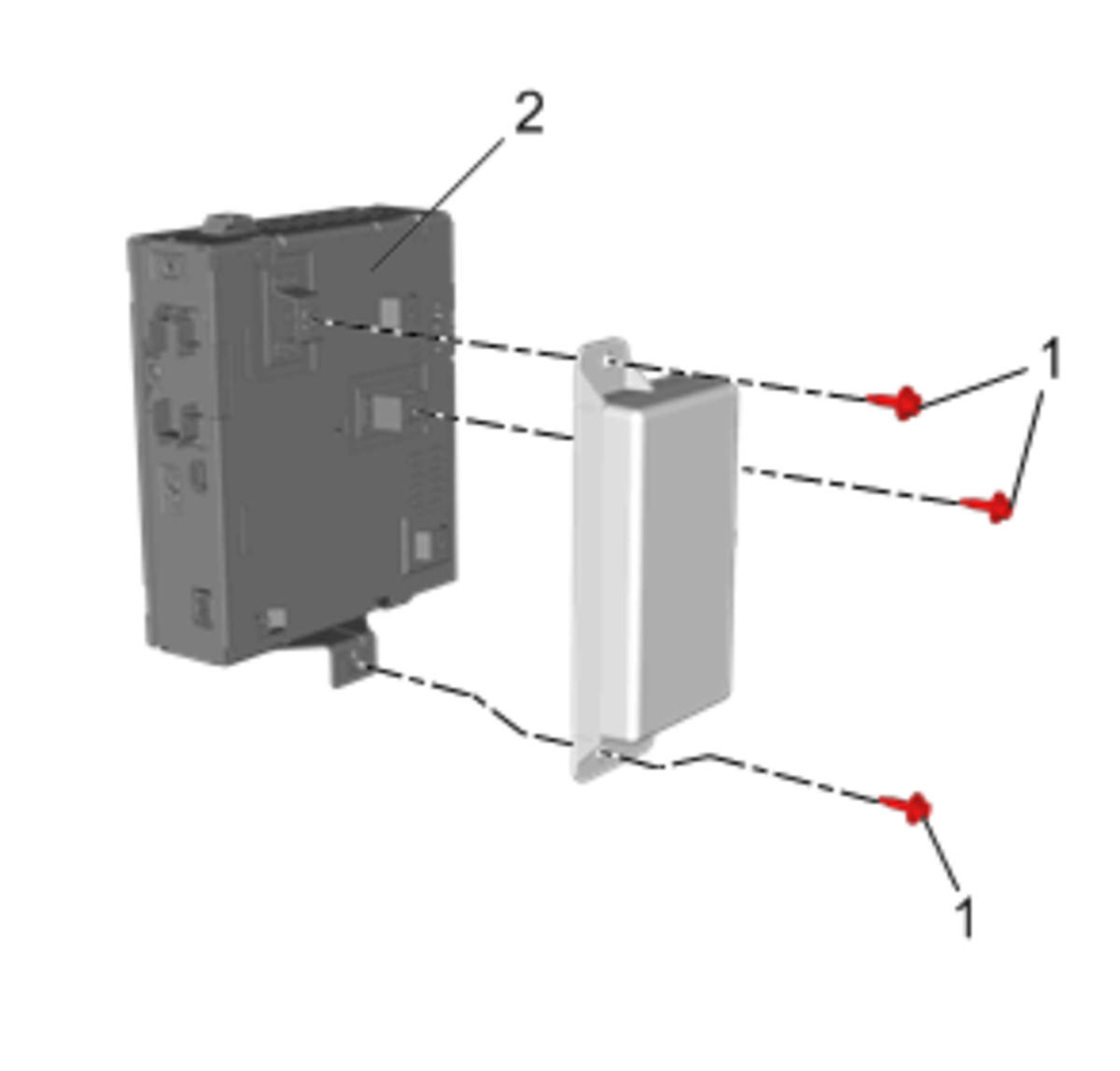

Communication Interface Module Battery @ Radio Assembly (2) - Install
- Radio Assembly Bolt (1) - Install and tighten to 2.5 N.m (22 lb in) [3x]

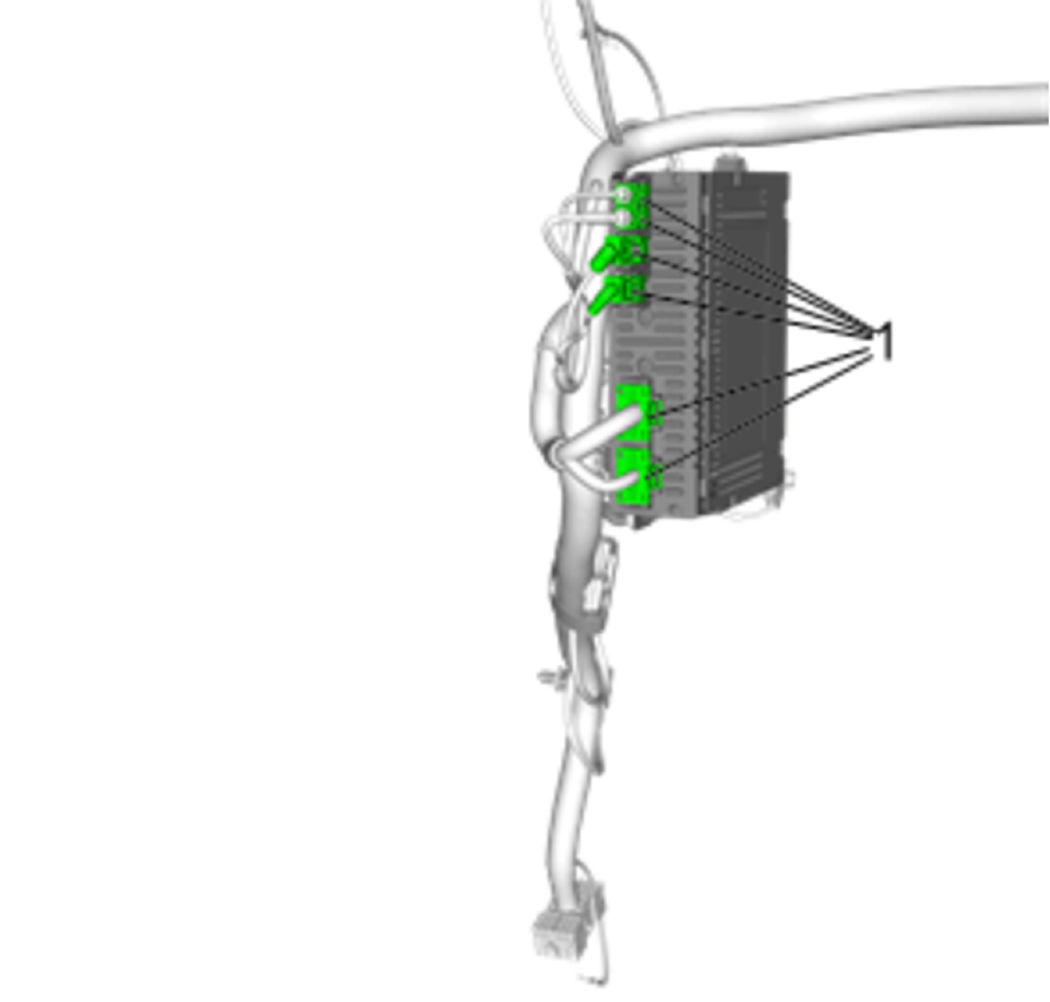

Connect the electrical connectors. (1)
- Attach the wiring harness securing clips.

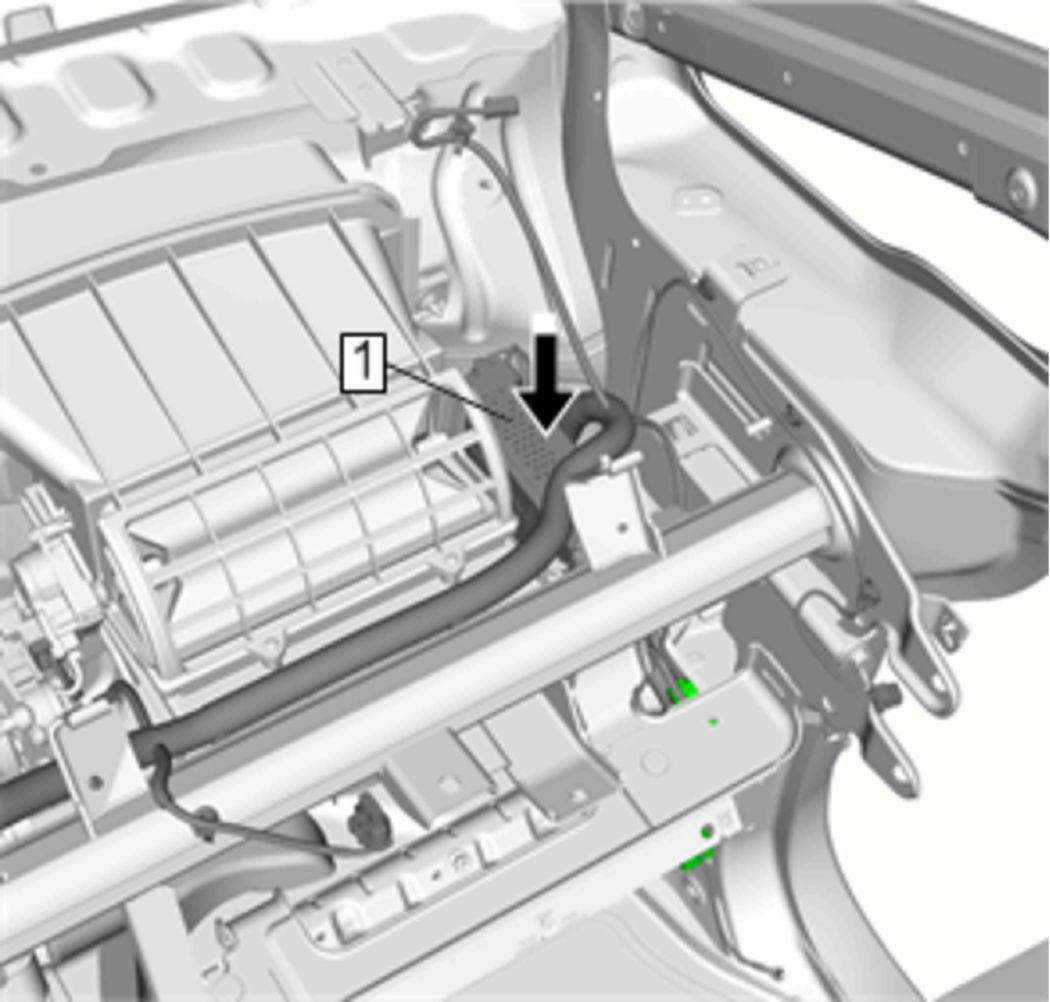

Position the radio module (1) and harness assembly into the bracket.

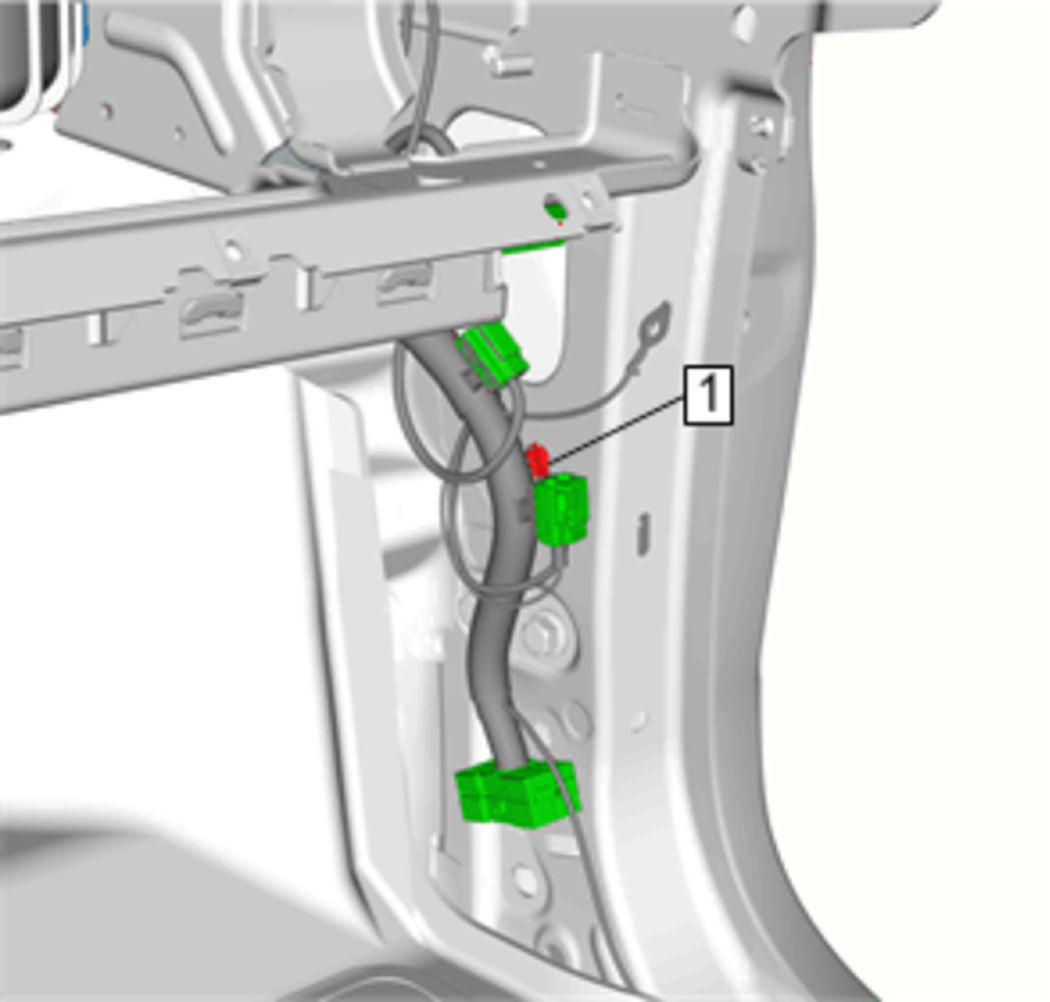

Clip the harness retainer (1).

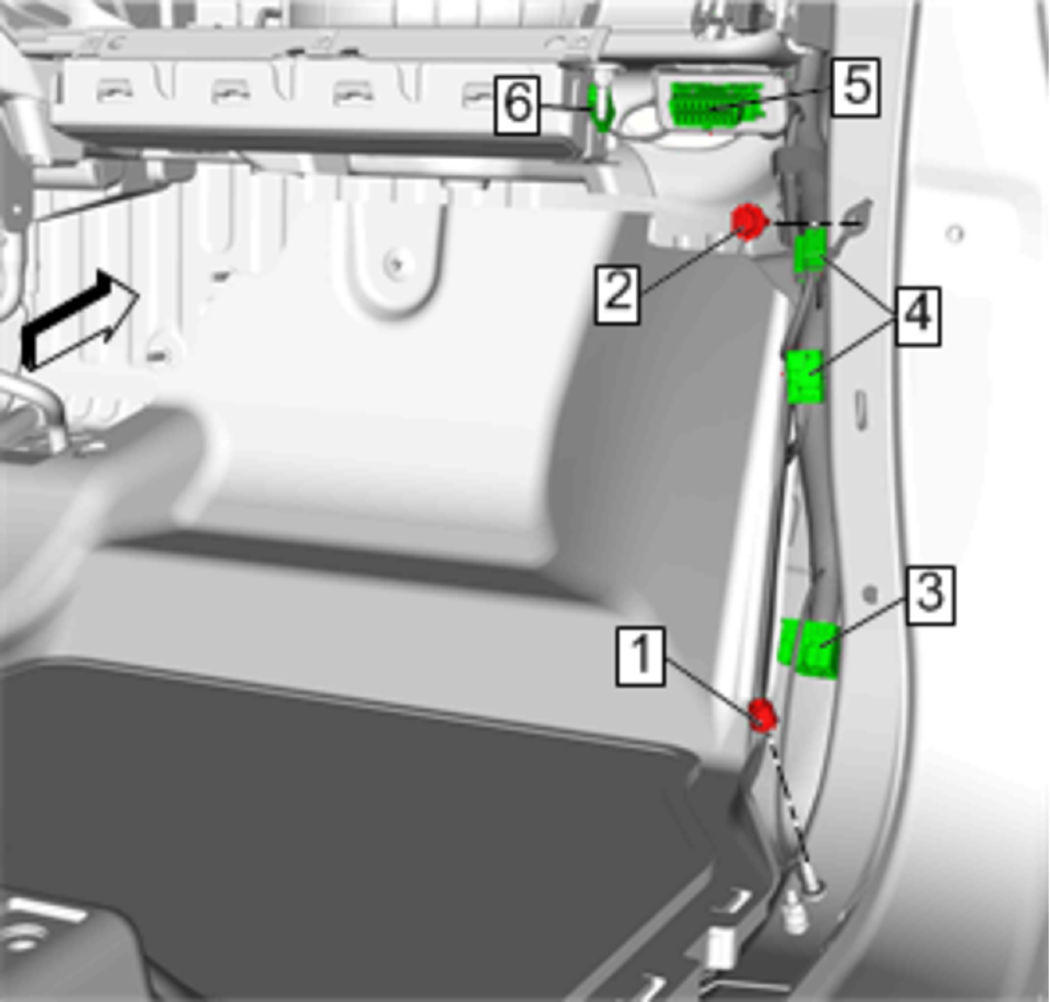

Install the ground nut (1) and ground wire. Tighten the fastener to 9 N.m (80 lb in).
- Install the ground bolt (2) and ground wire. Tighten the fastener to 9 N.m (80 lb in).
- Clip and Connect the I/P main harness connector (3).
- Connect the coax antenna connectors (4).
- Clip the passenger side DLC connector (5).
- Connect the passenger side airbag connector (6).

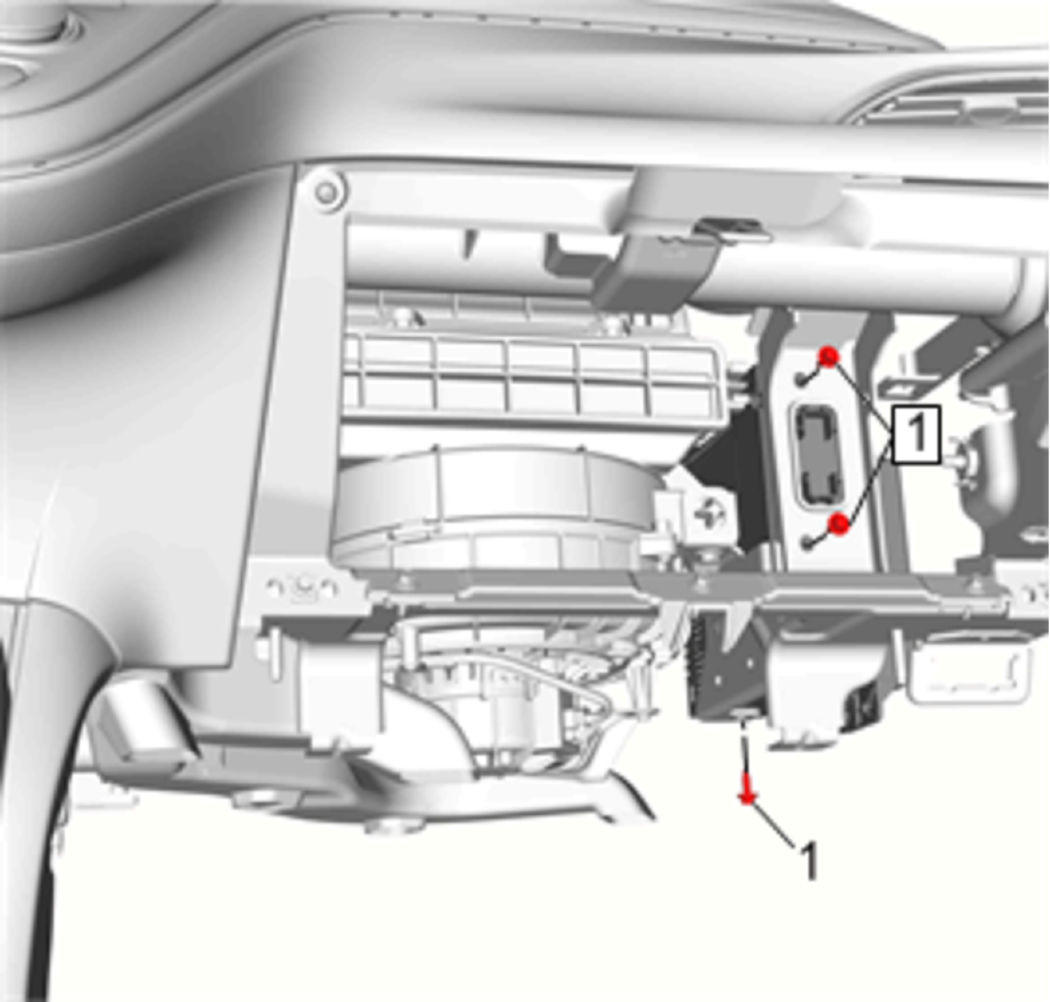

Radio Assembly Bolt (1) - Install and tighten to 2.5 N.m (22 lb in)

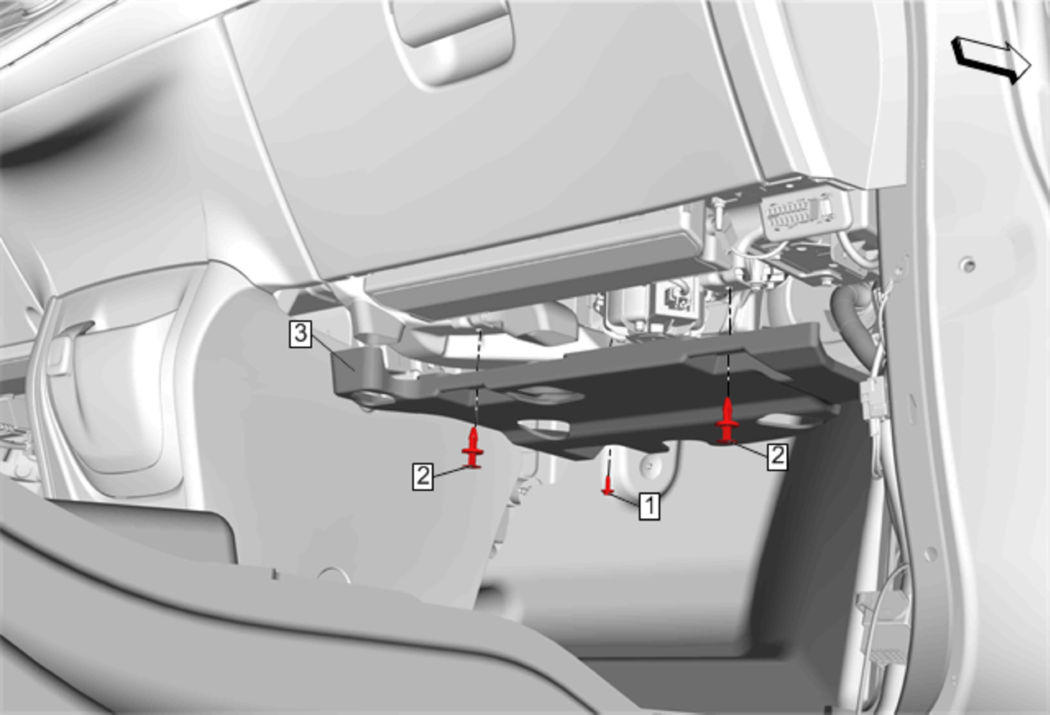

Instrument Panel Lower Trim Panel Insulator (3) - Install - Instrument Panel Lower Trim Panel Insulator Replacement

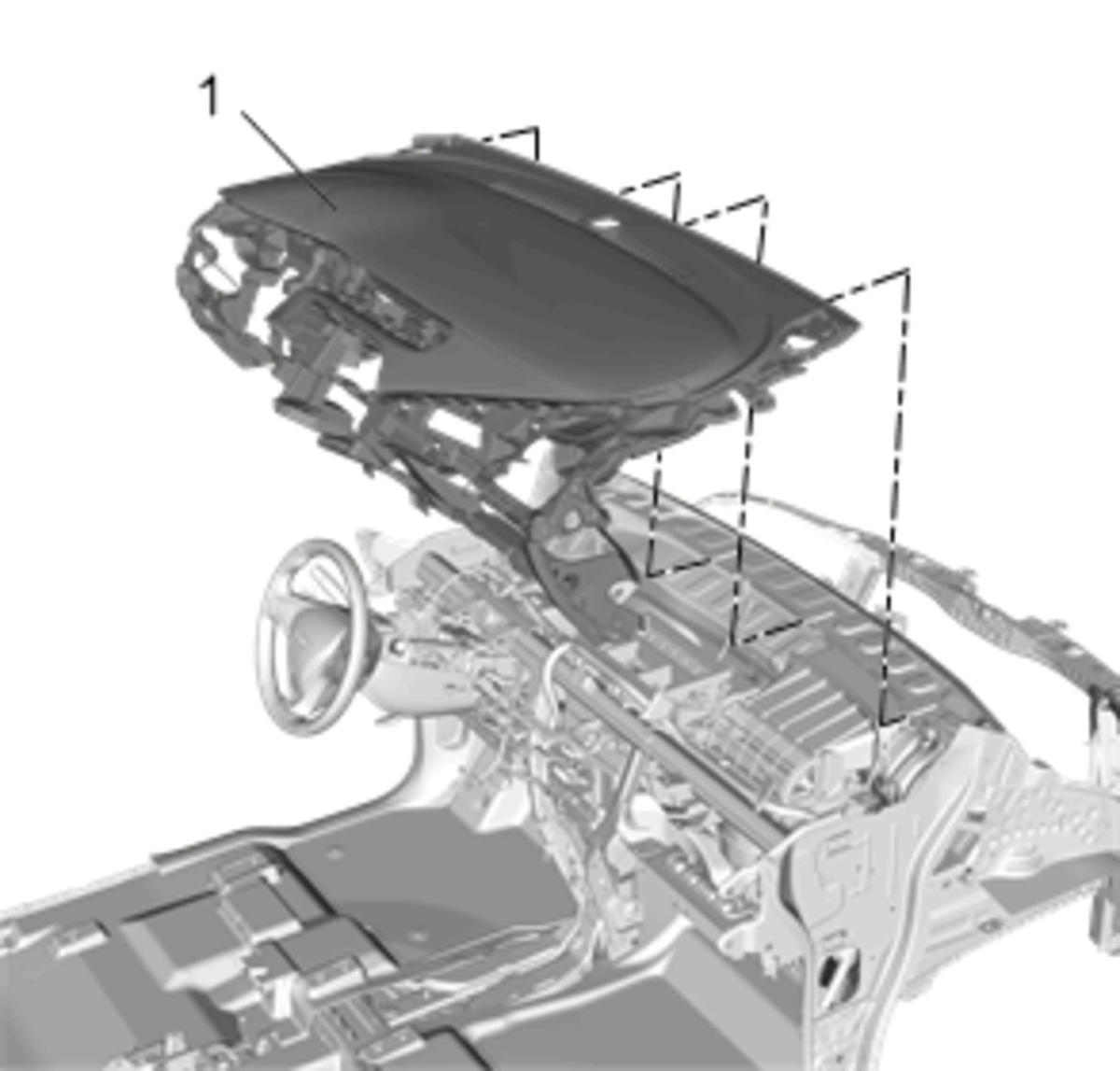

Instrument Panel Assembly (1) - Install - Instrument Panel Assembly Replacement
- Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
