Card Reader Receptacle Replacement - Video
WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

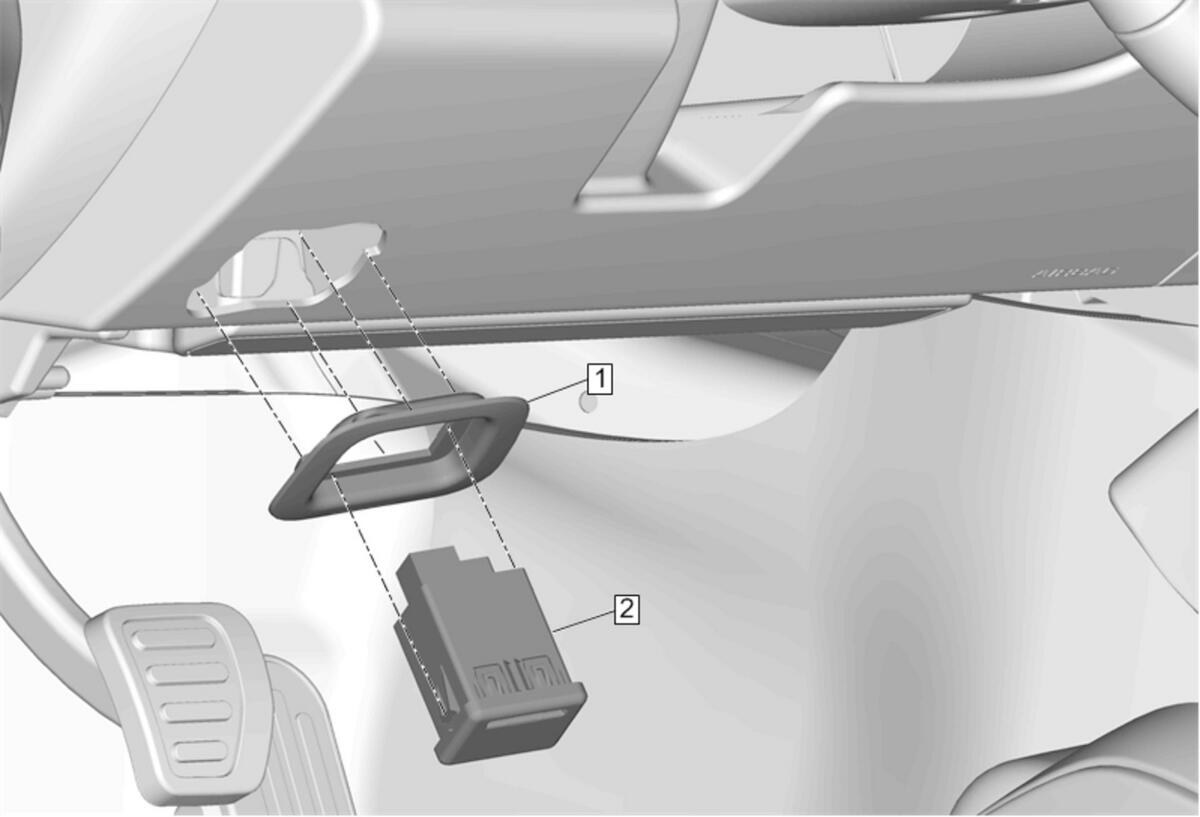

| Callout |
Component Name |
| 1 |
Instrument Panel Trim Plate
Procedure
Rotate the instrument panel trim plate counterclockwise. |
| 2 |
Card Reader Receptacle Procedure
- Disconnect the electrical connector.
- Release the retaining tabs.
|
