Below Engine Compartment Components
Courtesy of GENERAL MOTORS COMPANY

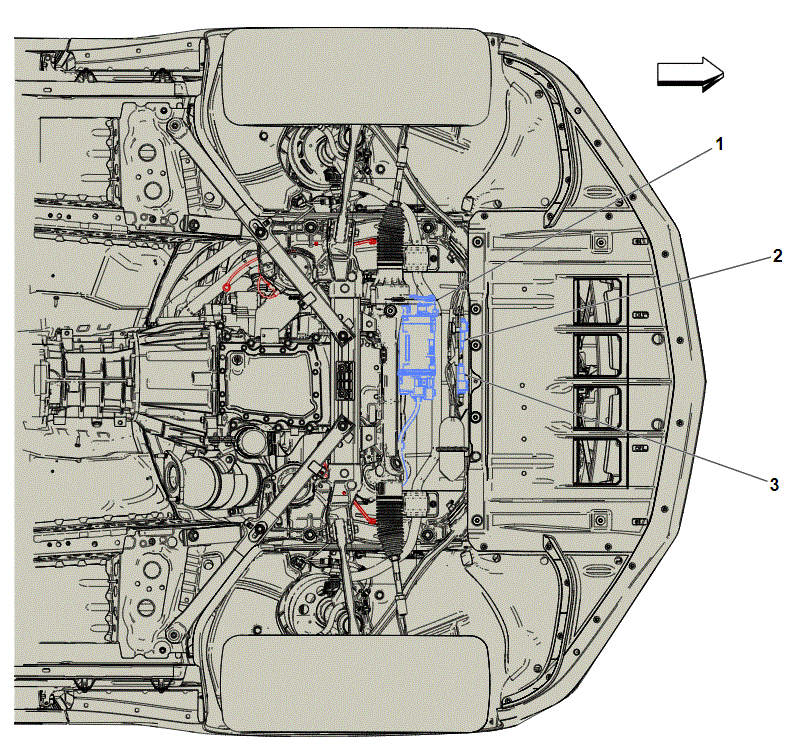

Below Engine Compartment Components
ITEMS
1. K43 Power Steering Control Module
2. Q80L Engine Mount Solenoid Valve - Left (LTG)
3. Q80R Engine Mount Solenoid Valve - Right (LTG)
Courtesy of GENERAL MOTORS COMPANY
