Installation Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Use NEW bolts.

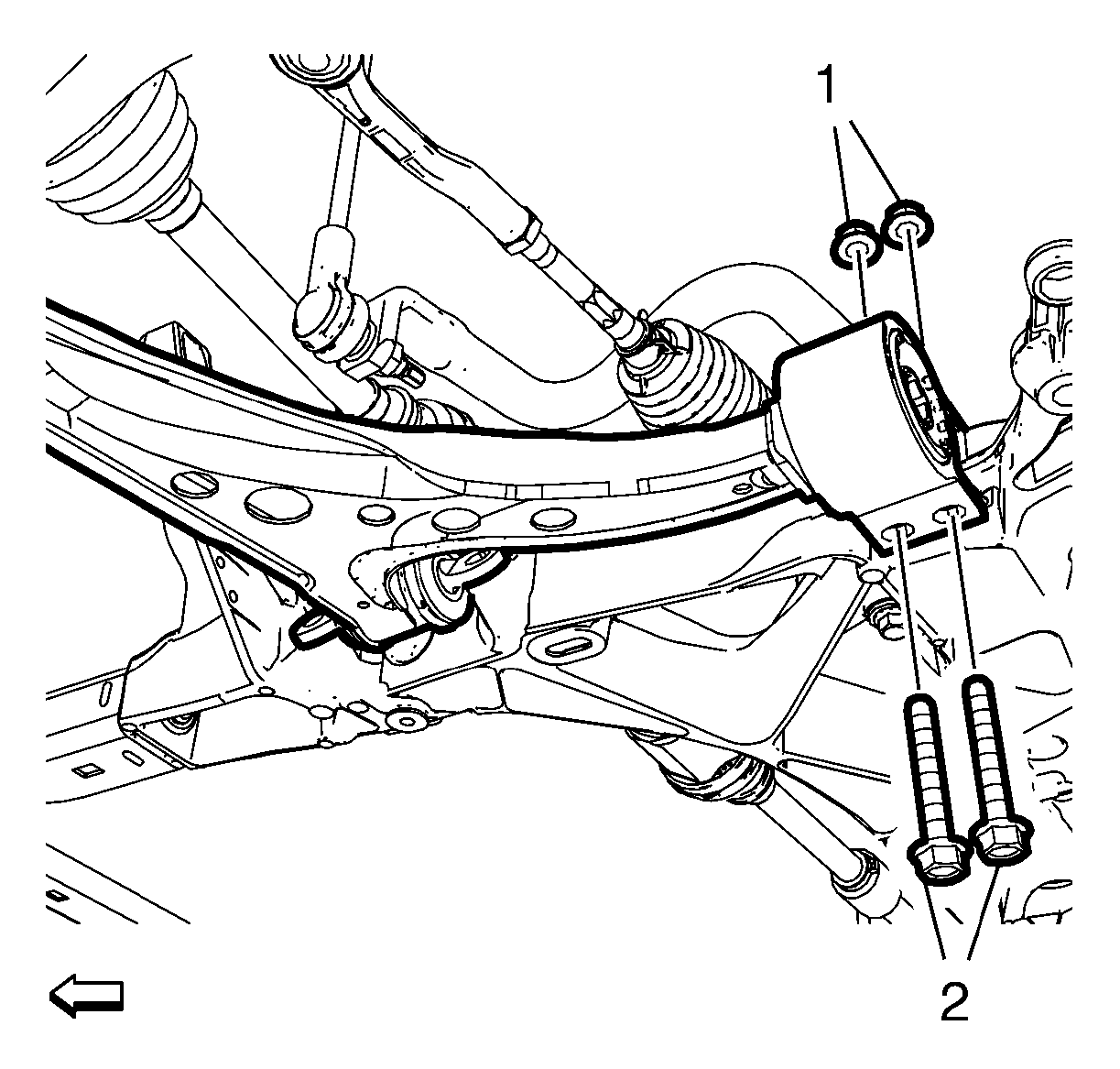

Bolt(2) - Loosely install[2x]
- Nut(1) - Loosely install[2x]
- NOTE:
Use NEW bolts.

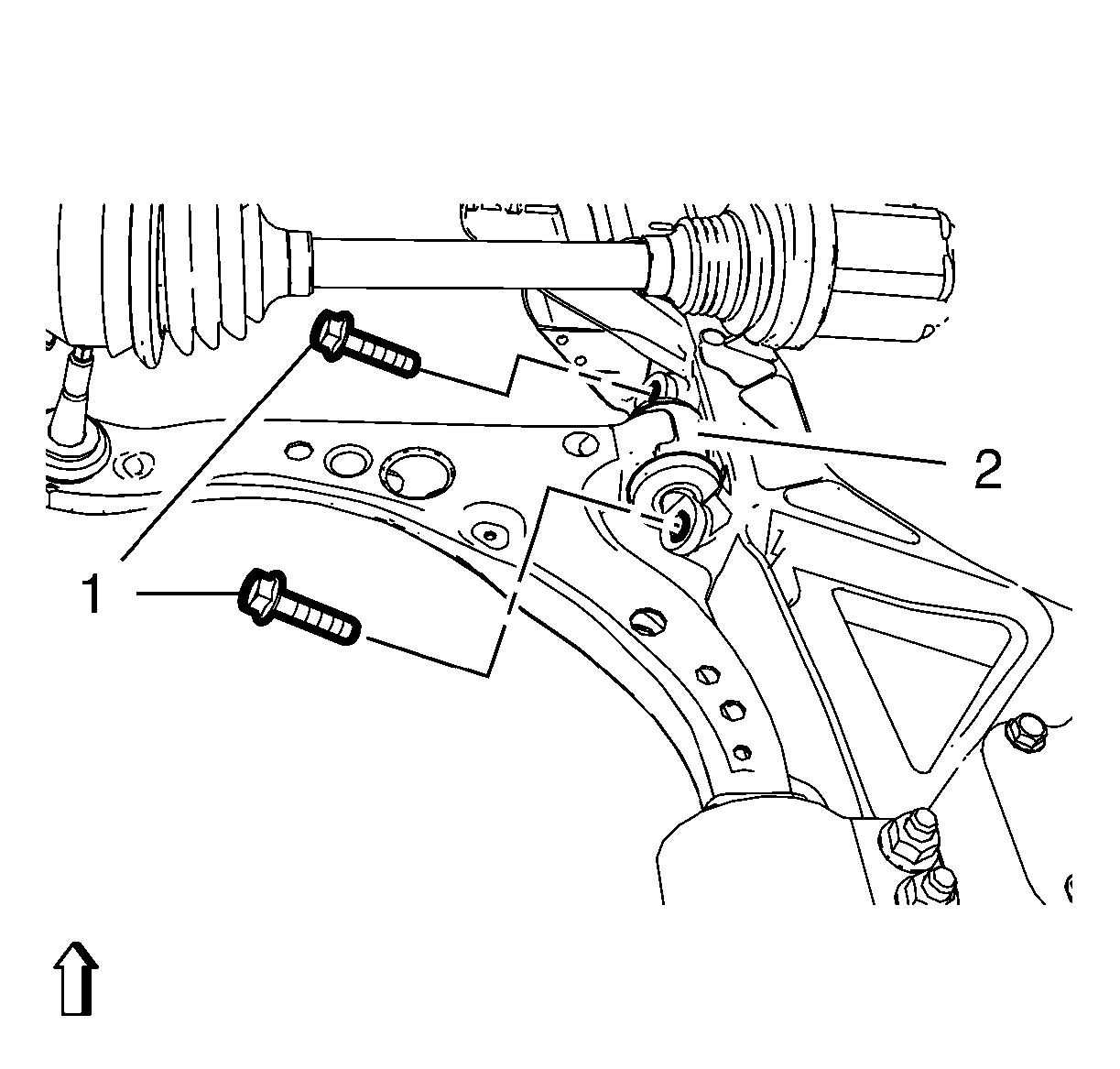

Bolt(1)@Front Lower Control Arm Bushing(2) - Loosely install[2x]
- WARNING:
Refer to Torque-to-Yield Fastener Warning .
CAUTION:Refer to Fastener Caution .
NOTE:Hold against the nuts (2) to tighten the bolts (1). Use a suitable tool.
Bolt(2) & Nut(1) - Tighten[2x]
- First Pass: 100 N.m (74 lb ft)
- Final Pass: 90 to 105 degrees - EN-45059 meter
- WARNING:
Refer to Torque-to-Yield Fastener Warning .
CAUTION:Refer to Fastener Caution .
Bolt(1)@Front Lower Control Arm Bushing(2) - Tighten[2x]
- First Pass: 100 N.m (74 lb ft)
- Final Pass:30 to 45 degrees - EN-45059 meter
- NOTE:
Support the lower control arm ball joint with a hydraulic jack.
NOTE:Hold against the hex of the threaded stud to tighten the nut (1). Use a suitable tool.

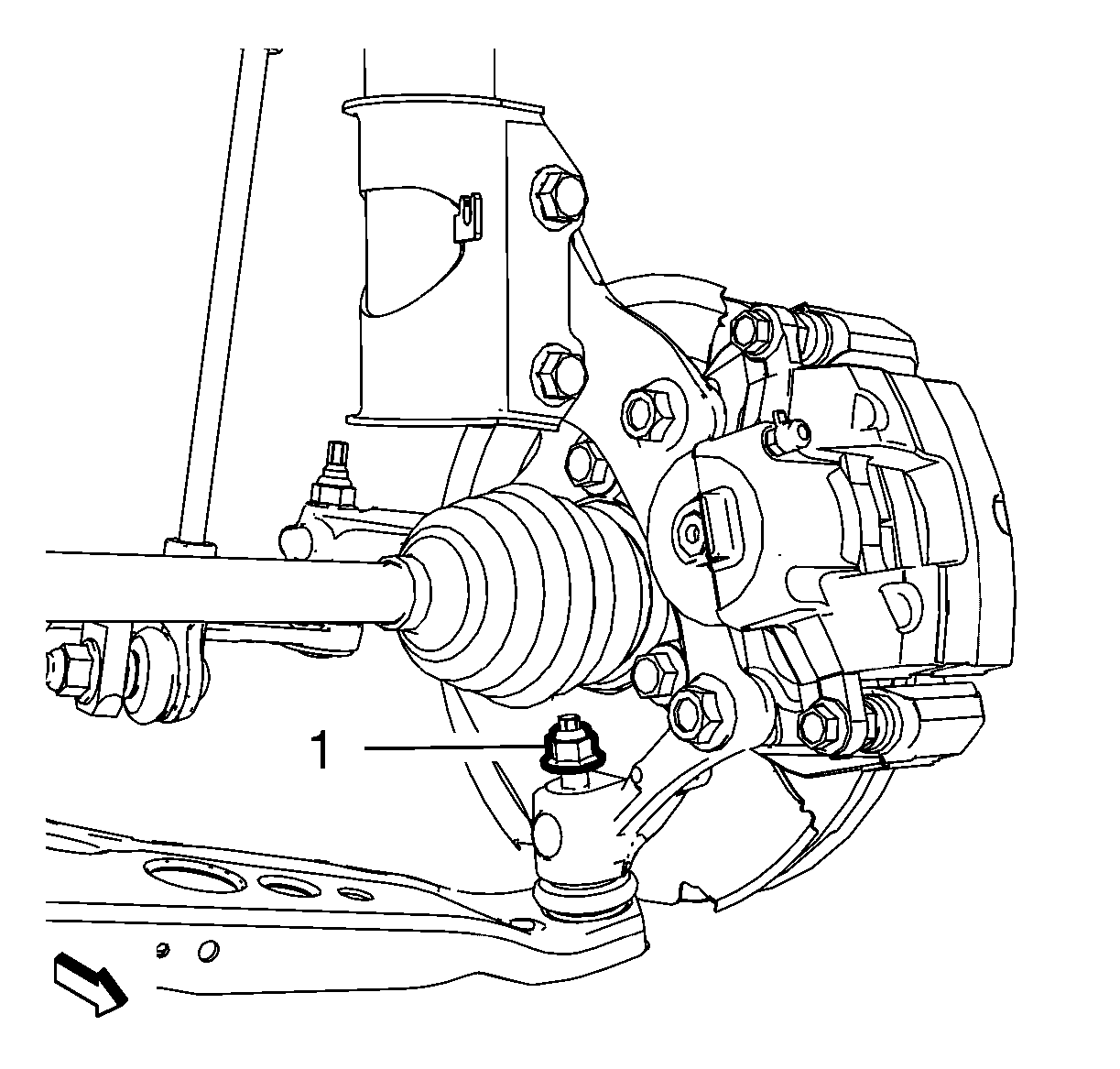

Install the lower ball joint in the steering knuckle.
- Install a NEW nut.(1)
- Nut - Tighten[2x]
- First Pass:35 N.m (26 lb ft)
- Final Pass:30 to 45 degrees - EN-45059 meter
- If equipped with the front leveling position sensor, connect the electrical connector.
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Measure and adjust the wheel alignment. Wheel Alignment Measurement
NOTE:
Use NEW nuts.
WARNING:
Refer to Torque-to-Yield Fastener Warning .
CAUTION:
Refer to Fastener Caution .
