Navigation Signal Splitter Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedures Battery Negative Cable Disconnection and Connection Human Machine Interface Control Module Bracket Replacement

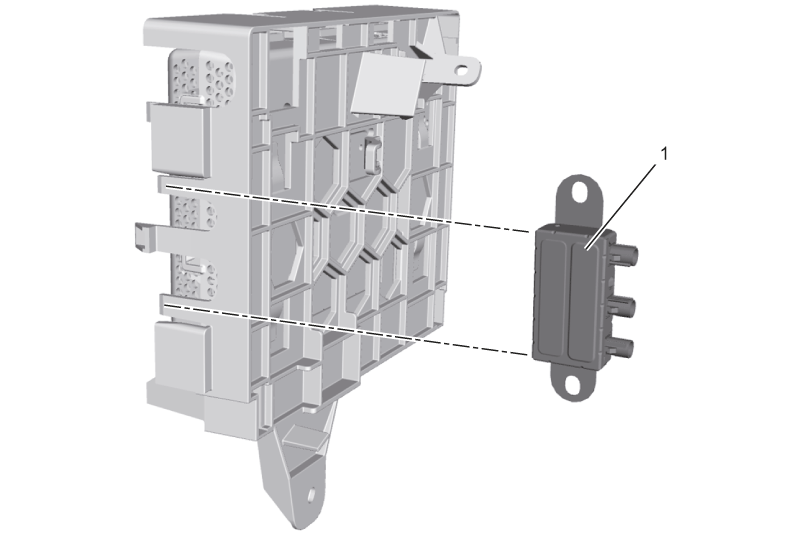

1	Navigation Signal Splitter Procedure Unlock the retaining tabs.

Callout

Component Name

Preliminary Procedures

Battery Negative Cable Disconnection and Connection
Human Machine Interface Control Module Bracket Replacement

Navigation Signal Splitter
Procedure
Unlock the retaining tabs.
