Radio Control Assembly Replacement (IO5 or IO6)

WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

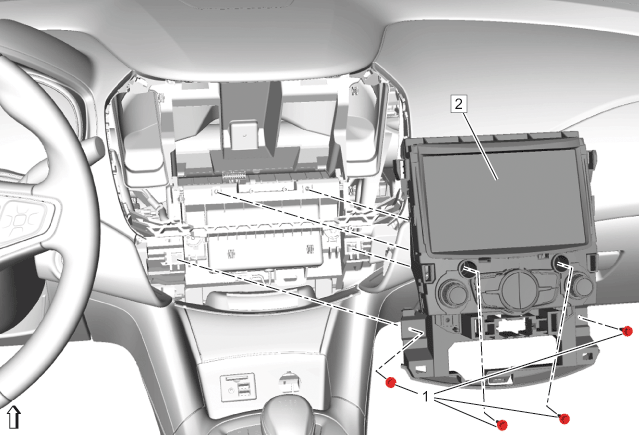

GM4284260
Callout Component Name

Preliminary Procedures

  1. Heater and Air Conditioning Control Replacement
  2. Instrument Panel Center Trim Pad Replacement
  3. Instrument Panel Center Air Outlet Replacement
1 Radio Control Assembly Bolt [4x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Radio Control Assembly

Procedure

  1. Unlock the retaining tabs.
  2. Disconnect all electrical connectors.
