Installation Procedure

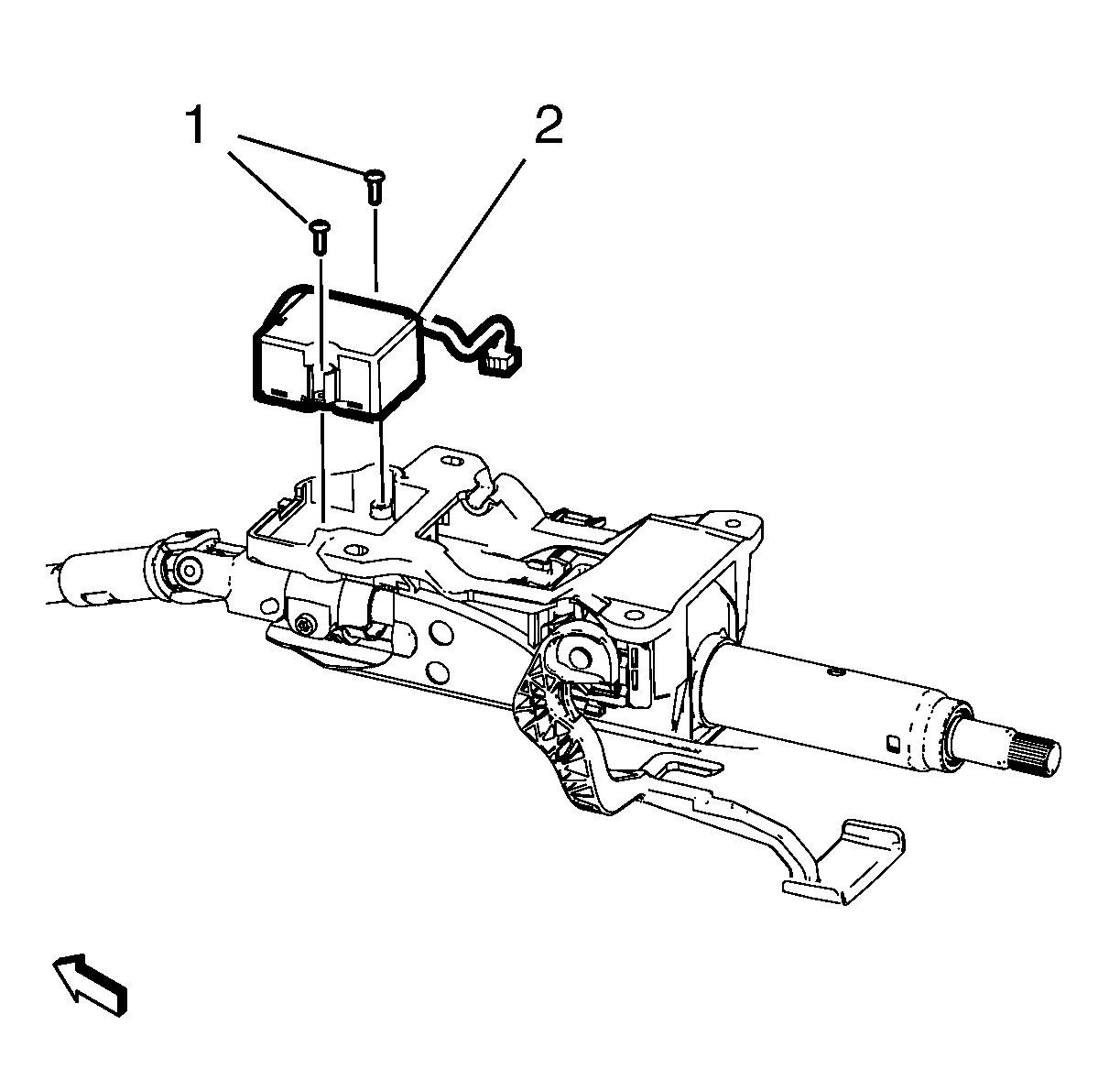

{If equipped} Steering Column Lock Control Module (2) - Install
- {If equipped} Bolt (1) @ Steering Column Lock Control Module - Install and tighten 3.5 N.m (31 lb in) [2x]

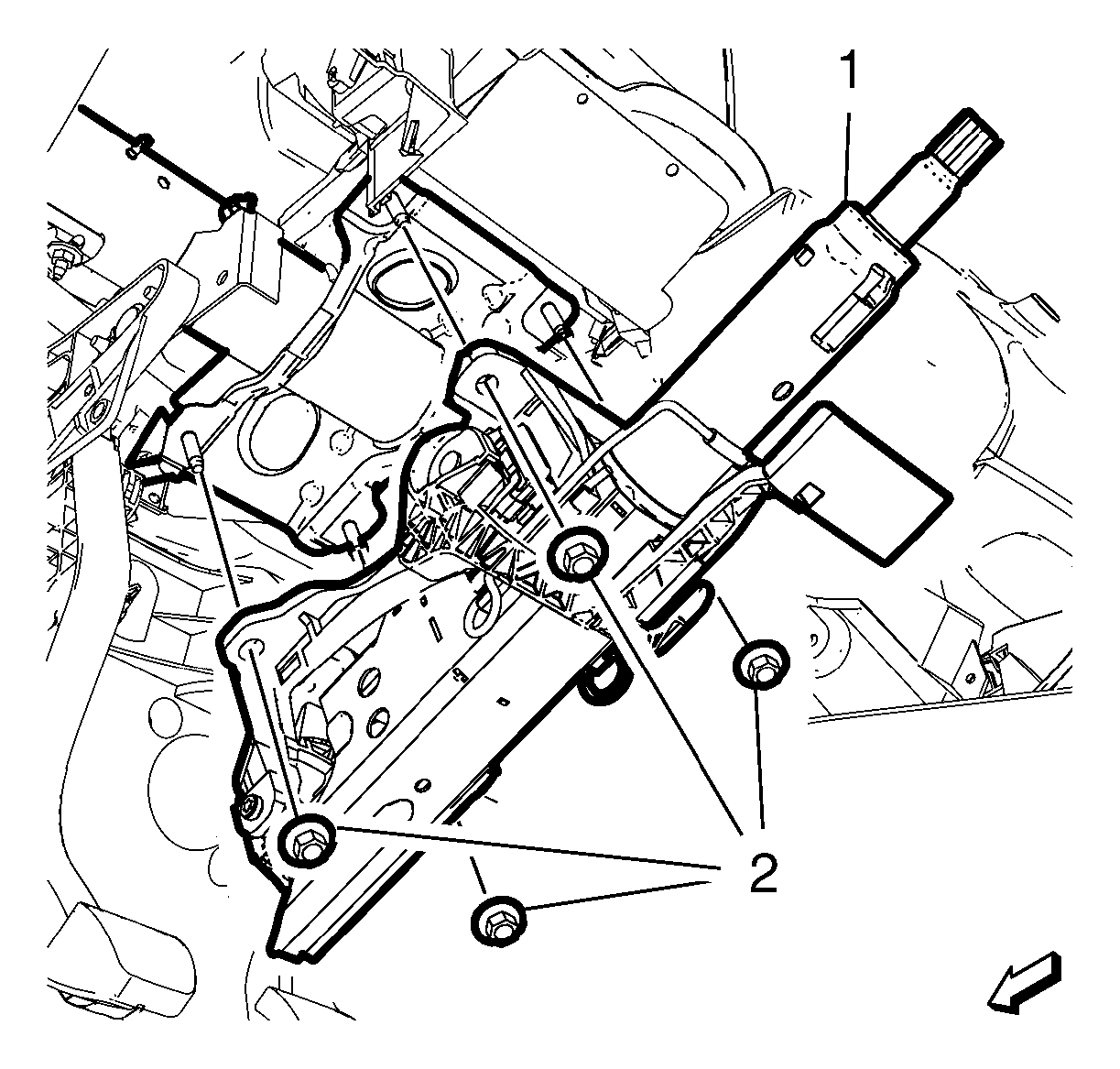

Steering Column (1) - Install
- Hand-tight the NEW 4 steering column nuts (2).
-
WARNING:
In order to ensure the intended function of the steering column in a vehicle during a crash and in order to avoid personal injury to the driver, perform the following:
- Tighten the steering column lower fasteners before you tighten the steering column upper fasteners. Failure to do this can damage the steering column.
- Tighten the steering column fasteners to the specified torque. Overtightening the upper steering column fasteners could affect the steering column collapse.
CAUTION:Refer to Fastener Caution .

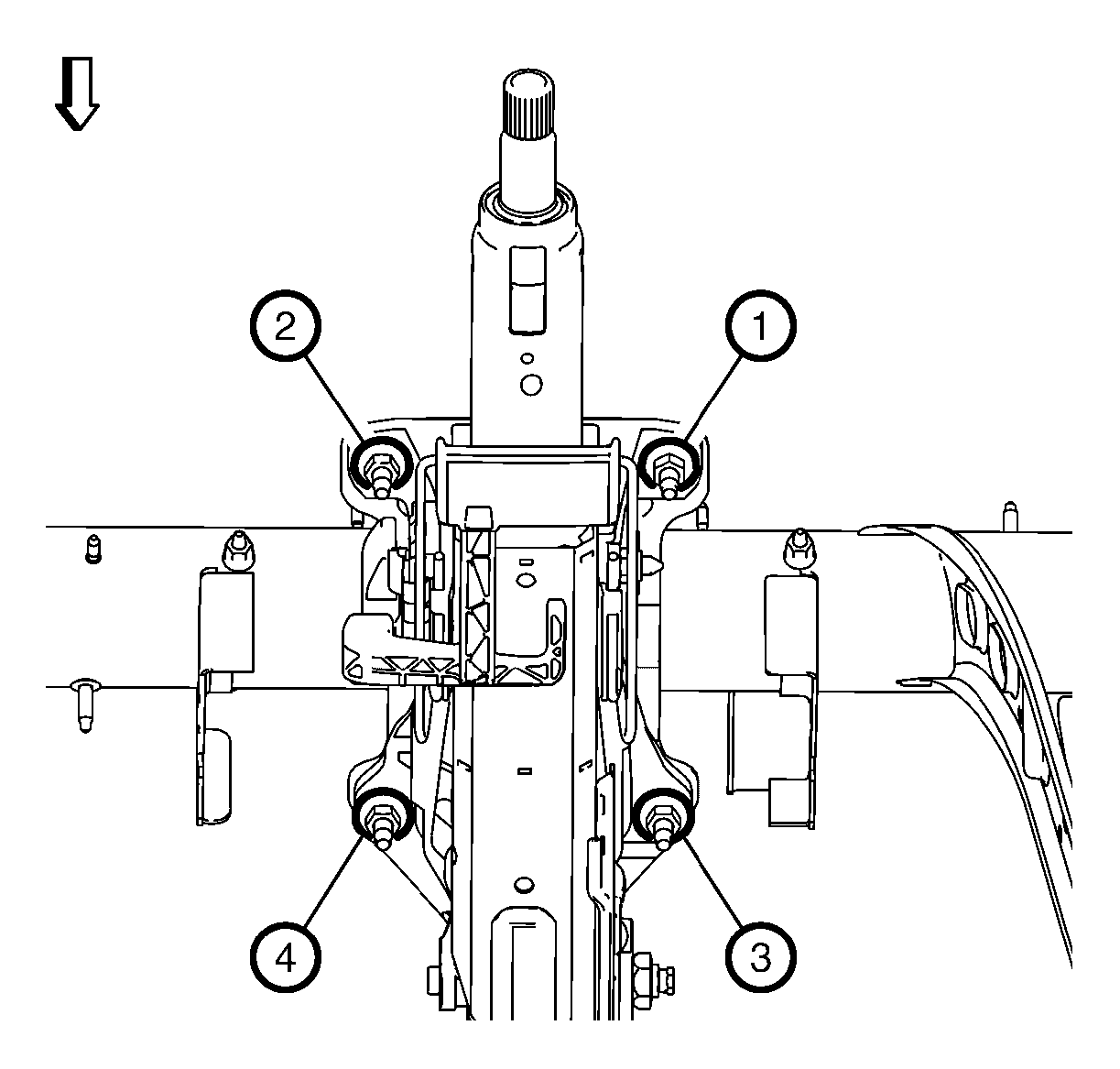

Steering Column Nut - Tighten in the sequence shown. 22 N.m (16 lb ft) [4x]
- Connect the steering column electrical connectors.
Connect the intermediate steering shaft to the steering column.
- Intermediate Steering Shaft Upper Bolt (1) - Install and tighten
- First pass: 25 N.m (18 lb ft)
- Final pass: 180 - 195 degrees
- Floor Front Air Outlet Duct Replacement - Left Side - Install
- Instrument Panel Lower Airbag Replacement - Driver Side - Install
- Ignition and Start Switch Housing Replacement - Install
- Turn Signal Switch Bracket Replacement - Install
- Steering Column Upper Trim Cover Replacement - Install
- Instrument Panel Knee Bolster Replacement - Install
- Power Steering Control Module Calibration
CAUTION:
Refer to Fastener Caution .
