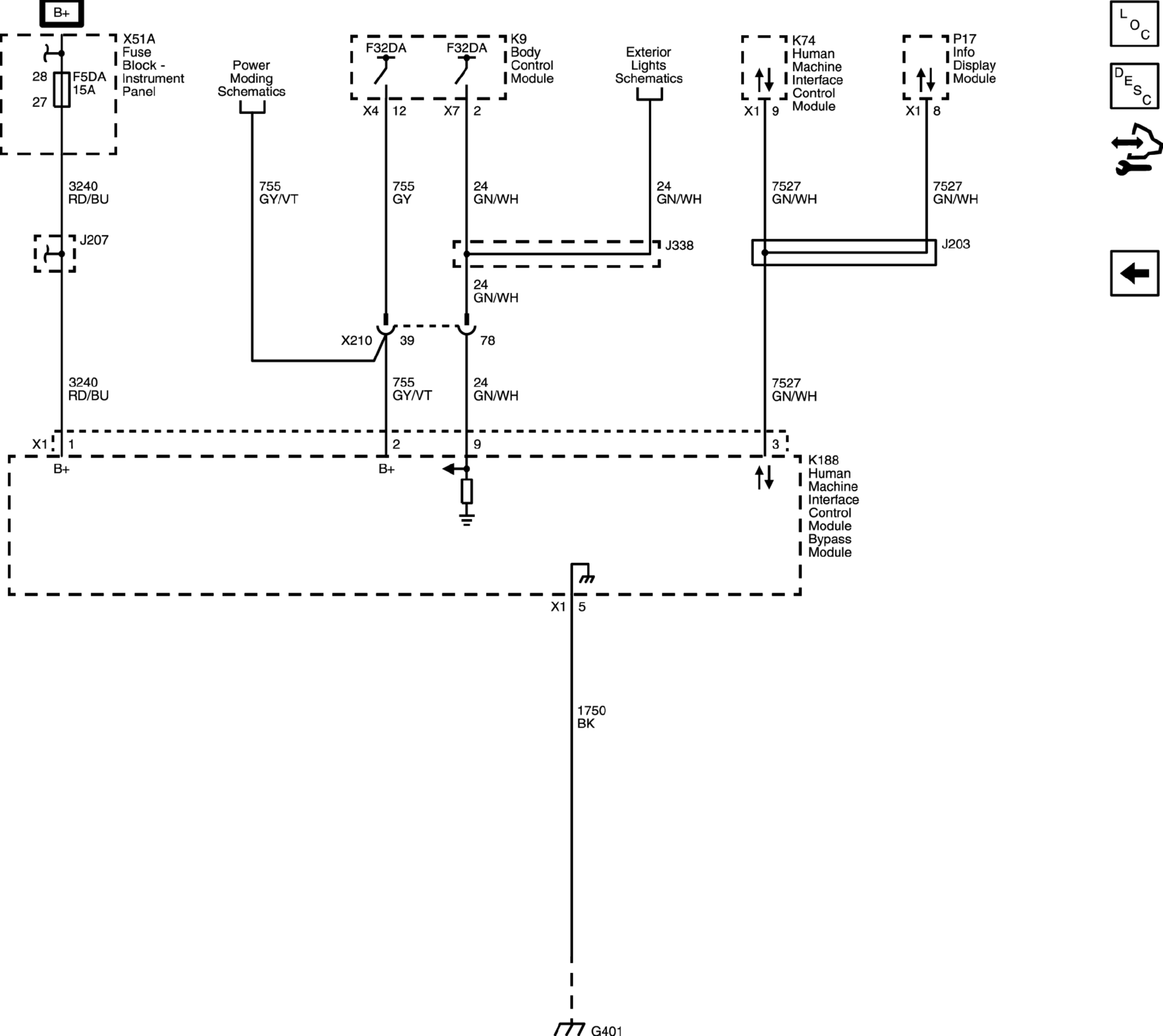

Power, Ground, Serial Data, Human Machine Interface Control Module Bypass Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
