Front of Engine Compartment Components

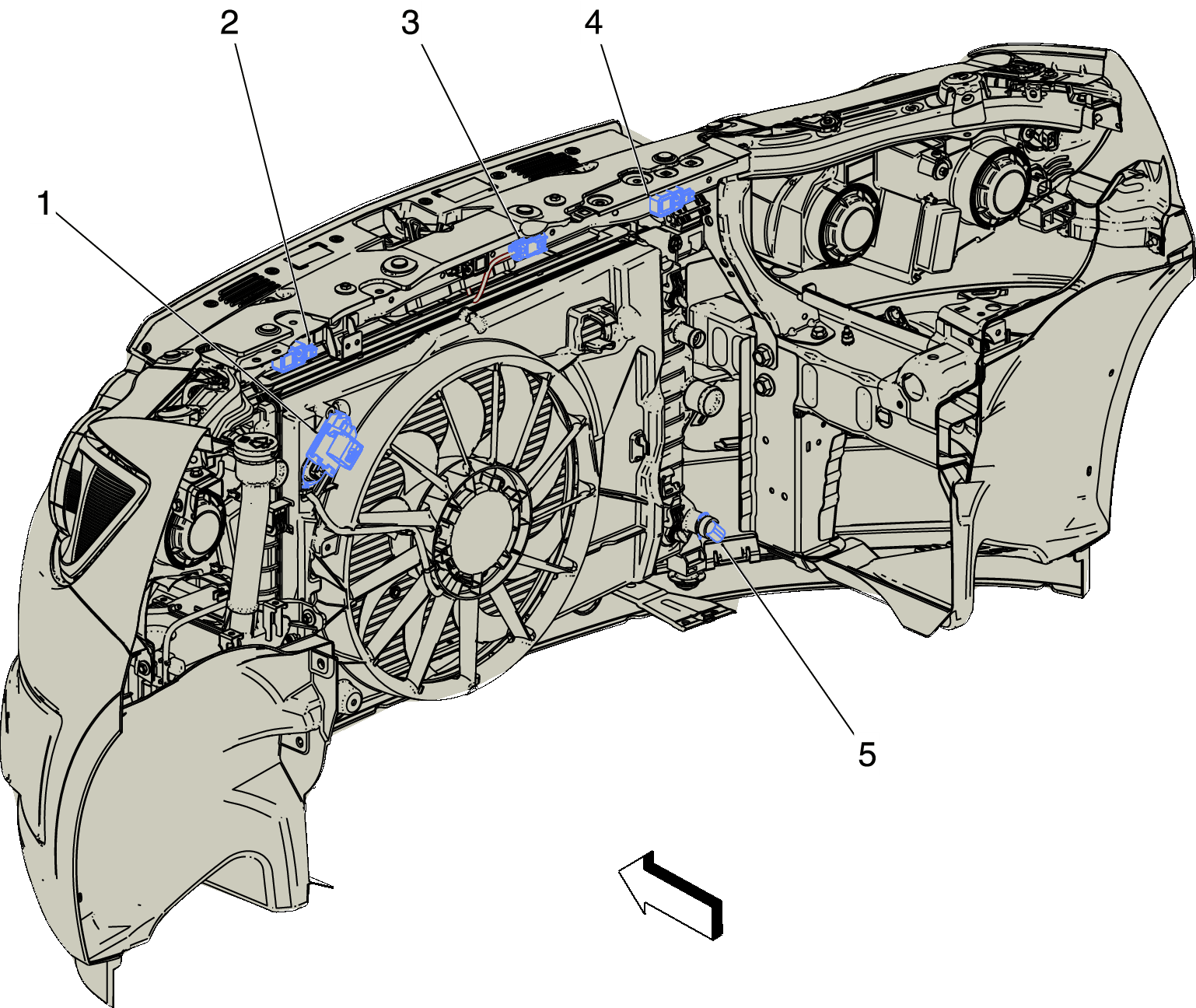

GM4911666Courtesy of GENERAL MOTORS COMPANY
Front of Engine Compartment Components

Items
1. G10 Cooling Fan Motor G10 Cooling Fan Motor
2. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
3. B55 Engine Hood Switch B55 Engine Hood Switch
4. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
5. B203 Radiator Coolant Temperature Sensor B203 Radiator Coolant Temperature Sensor
