Under Instrument Panel Components

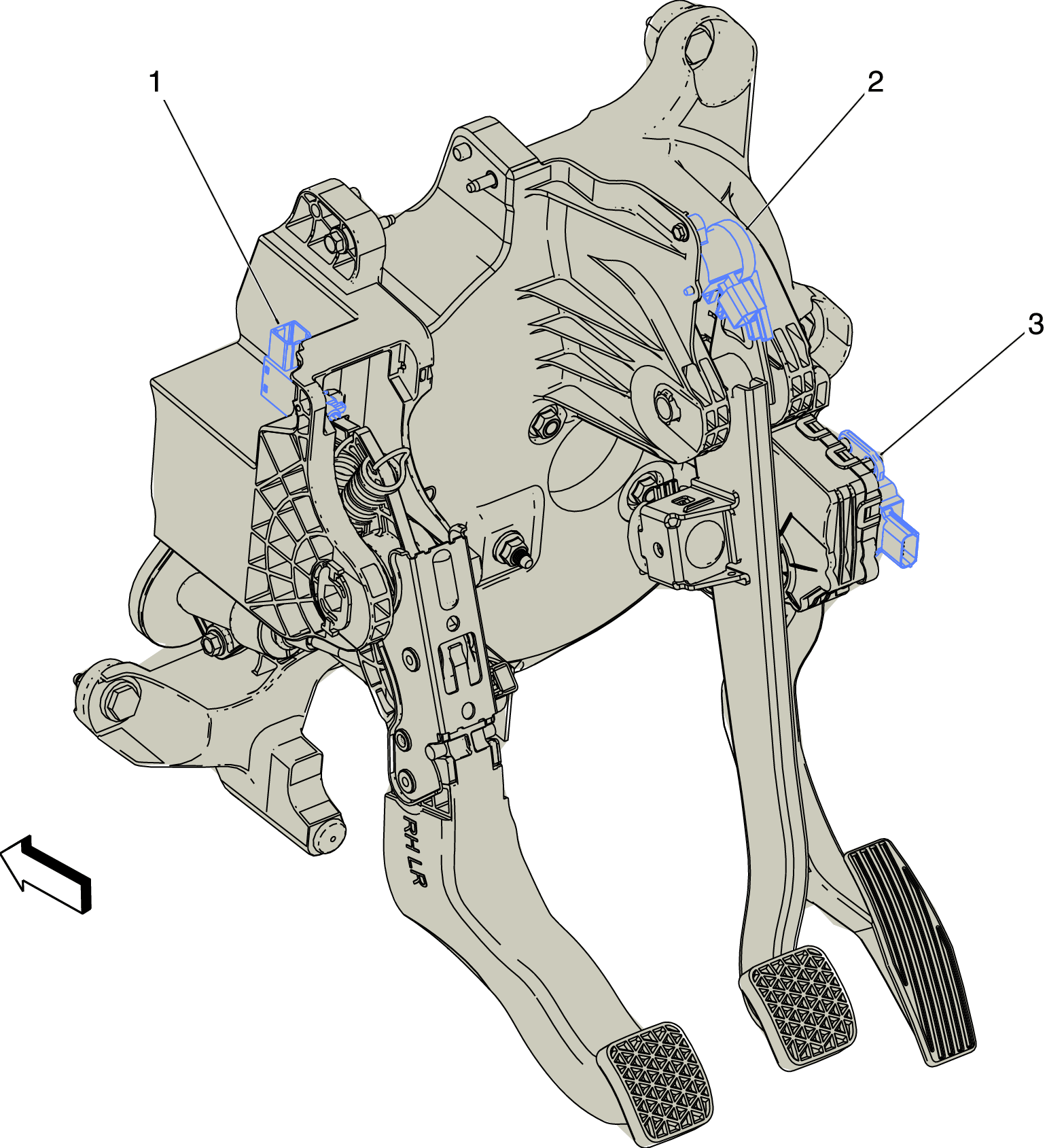

GM3216938Courtesy of GENERAL MOTORS COMPANY
Under Instrument Panel Components

Items
1. B25B Clutch Pedal Position Sensor (MZ4) B25B Clutch Pedal Position Sensor
2. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (MH8)B22 Brake Pedal Position Sensor (MZ4)
3. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
