Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

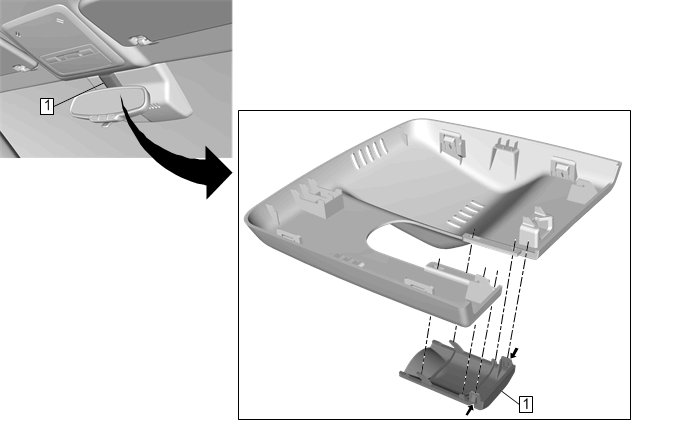

Callout	Component Name
1	Windshield Multifunction Sensor Mount Bracket Cover Insert Procedure Using a plastic trim tool, carefully pry downward on the cover to release from windshield. Squeeze upper tabs on insert and pull apart from cover. NOTE: The windshield multifunction sensor mount bracket cover and cover insert has to be removed from the windshield as a single unit to prevent damage to mirror.

Callout

Component Name

Windshield Multifunction Sensor Mount Bracket Cover Insert

Procedure

Using a plastic trim tool, carefully pry downward on the cover to release from windshield.
Squeeze upper tabs on insert and pull apart from cover.

NOTE:

The windshield multifunction sensor mount bracket cover and cover insert has to be removed from the windshield as a single unit to prevent damage to mirror.
